21

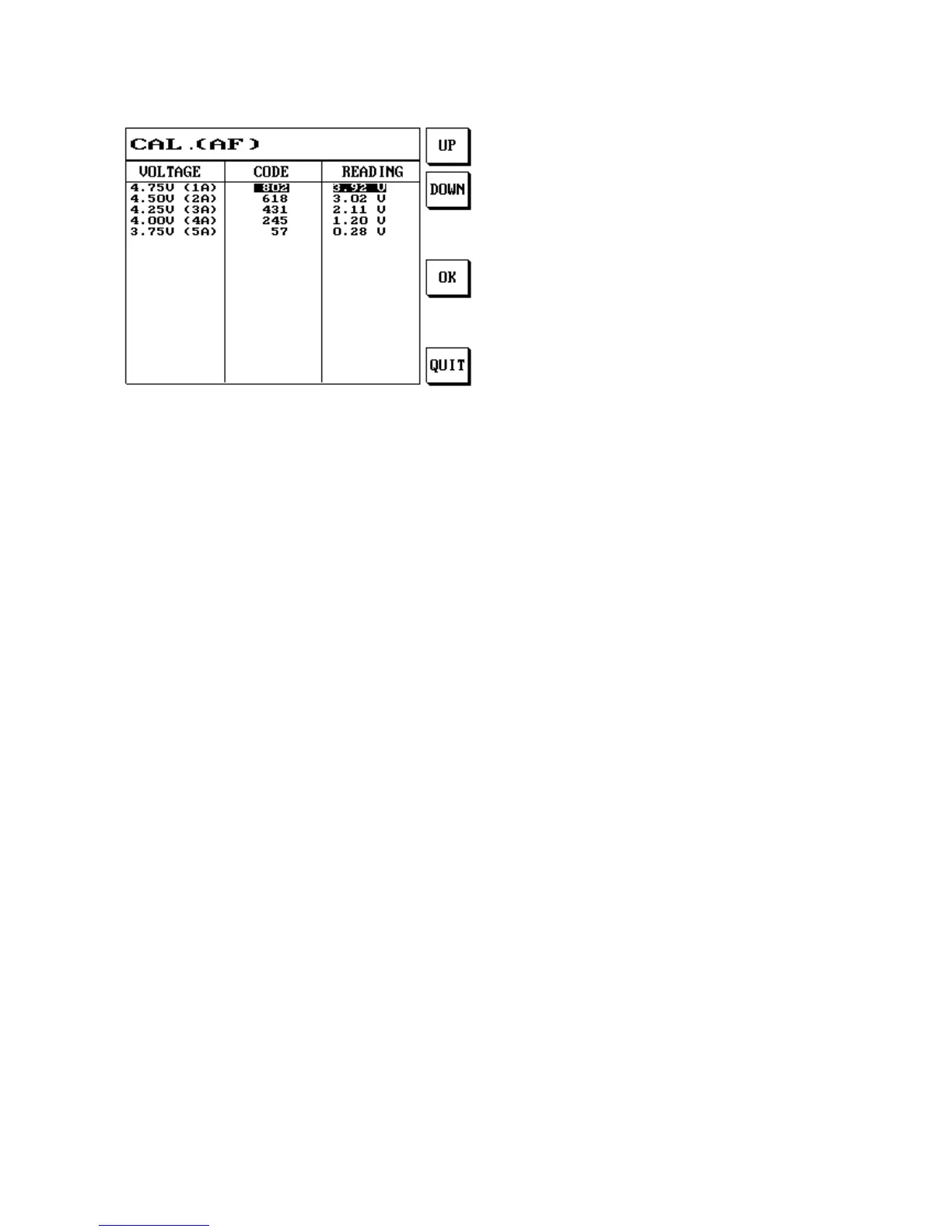

(4) Press S1 [UP] or S2 [DOWN] to adjust the Read (test value) closest to the current output setting
value.
(5) When setting is complete, please press S4 [OK].
(6) To cancel the set data, simply press S6 [QUIT].
3.1.4 Pin Search
This function can display which is the current output pin.
(1) Press [Func].
(2) Please use [↑] or [↓] to select pin search and then press [Enter].
(3) Connect the probe to the Pin Search connection, and point the probe to the pin you want to find
out.
(4) The LCD screen will display as follows:
To Next Page
