41
(2) Maximum allowable capacity (MAX. Capacitance): Can be set between 0.05u~1u. This value
should be set to a great number when the cables are longer in order to have stable tests.
(3) Short circuit pin determination (IDENTIFY O/S ENDS): Determine which pins are open circuit
or short circuit.
(4) Unilateral test sensitivity (SINGLE SIDE SENDS.): The lower the value the more sensitive it is.
0~999.
(5) Instant short circuit test time (INTER. O/S Time): 0~60s.
(6) Instant short circuit test maximum pin (INTER. O/S Scan): Determined according to model.
(7) TYPE C voltage (TYPE C Volt.): TYPE C test voltage 0.02v~4v.
(8) TYPE C fixture (TYPE C Fix.): Uses standard fixture test.
2. Cable type: {Normal}

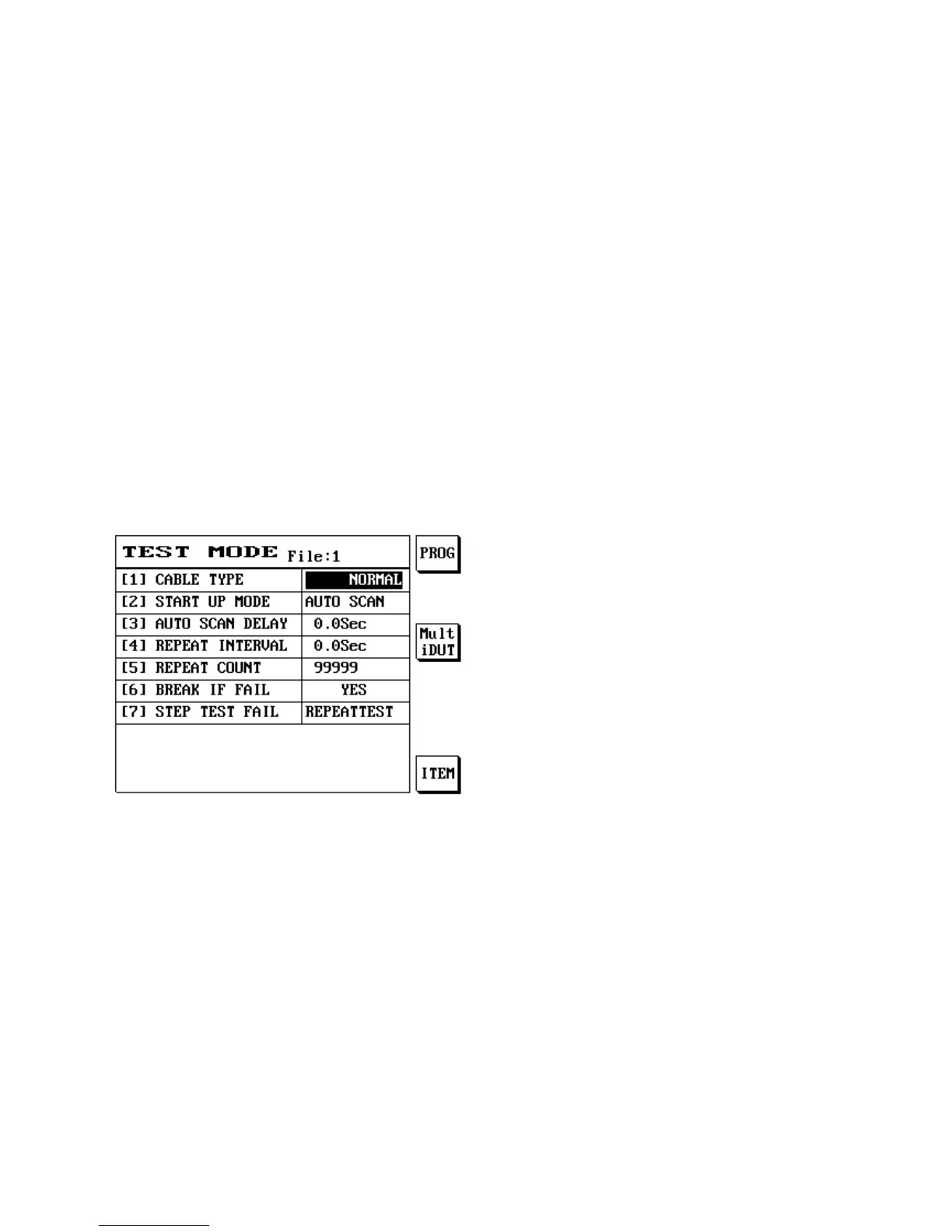

Press [Learn], the LCD screen will display as follows:
