MCAC-CTSM-2014-03 DX type water-cooled screw chiller (PCB Control)
55
contactor has action.

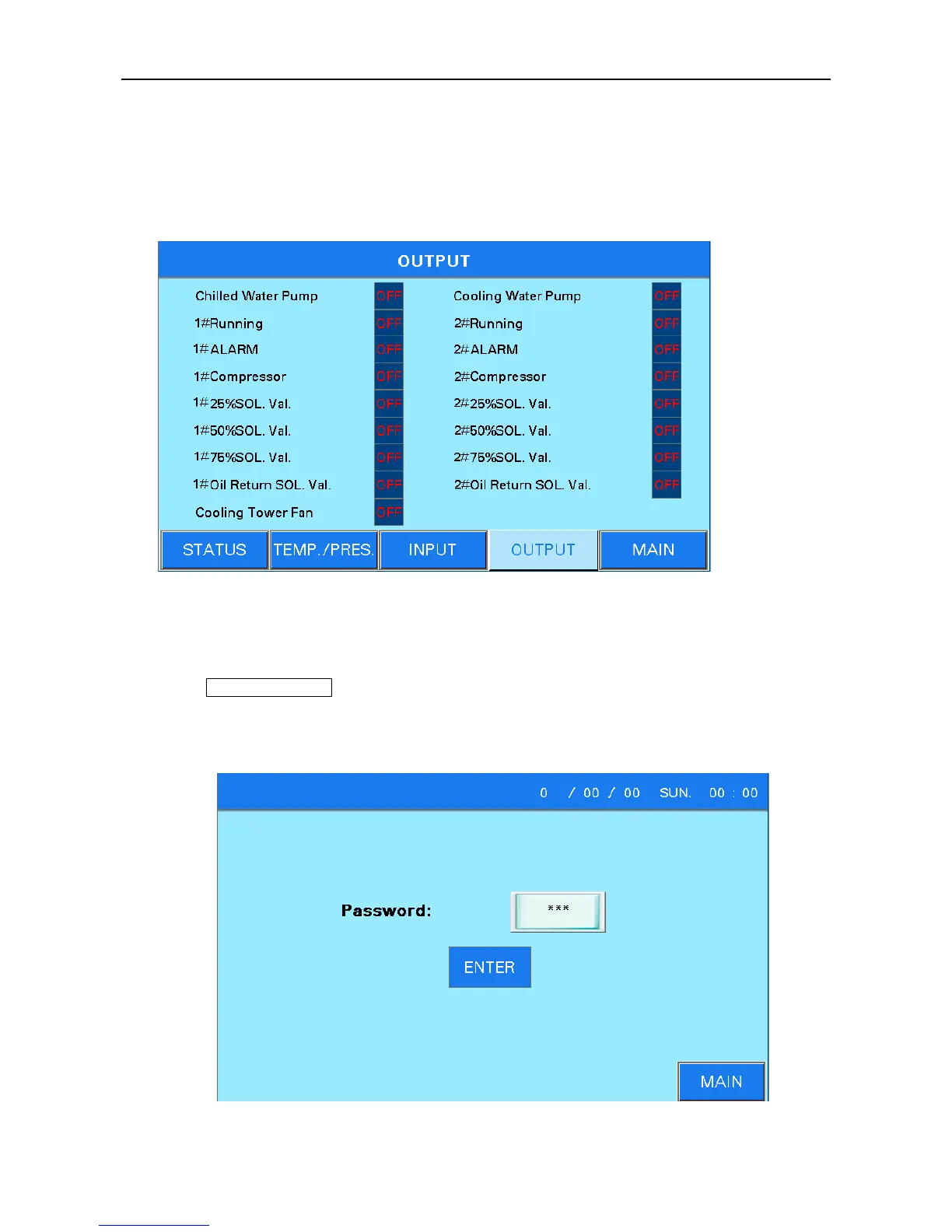

3.3 Status information-output status
Output status page: ON represents the output point is powered on, OFF represents the input point
is powered off.
When the unit is in a shutdown state, all state display is OFF. According to the startup / shutdown
command, the relative switch action is activated.
Figure 6.9 (Remark: subject to the actual principle diagrams)
User parameter setting- password interface
Press Parameter setting in the main page, then password input interface appears. Input the
password （40828）and enter the user parameter setting interface. Password input interface is shown as
figure 6.10.
Figure 6.10
