Midea LSBLG320/MZ - Fixation of Unit

MCAC-CTSM-2014-03 DX type water-cooled screw chiller (PCB Control)
75

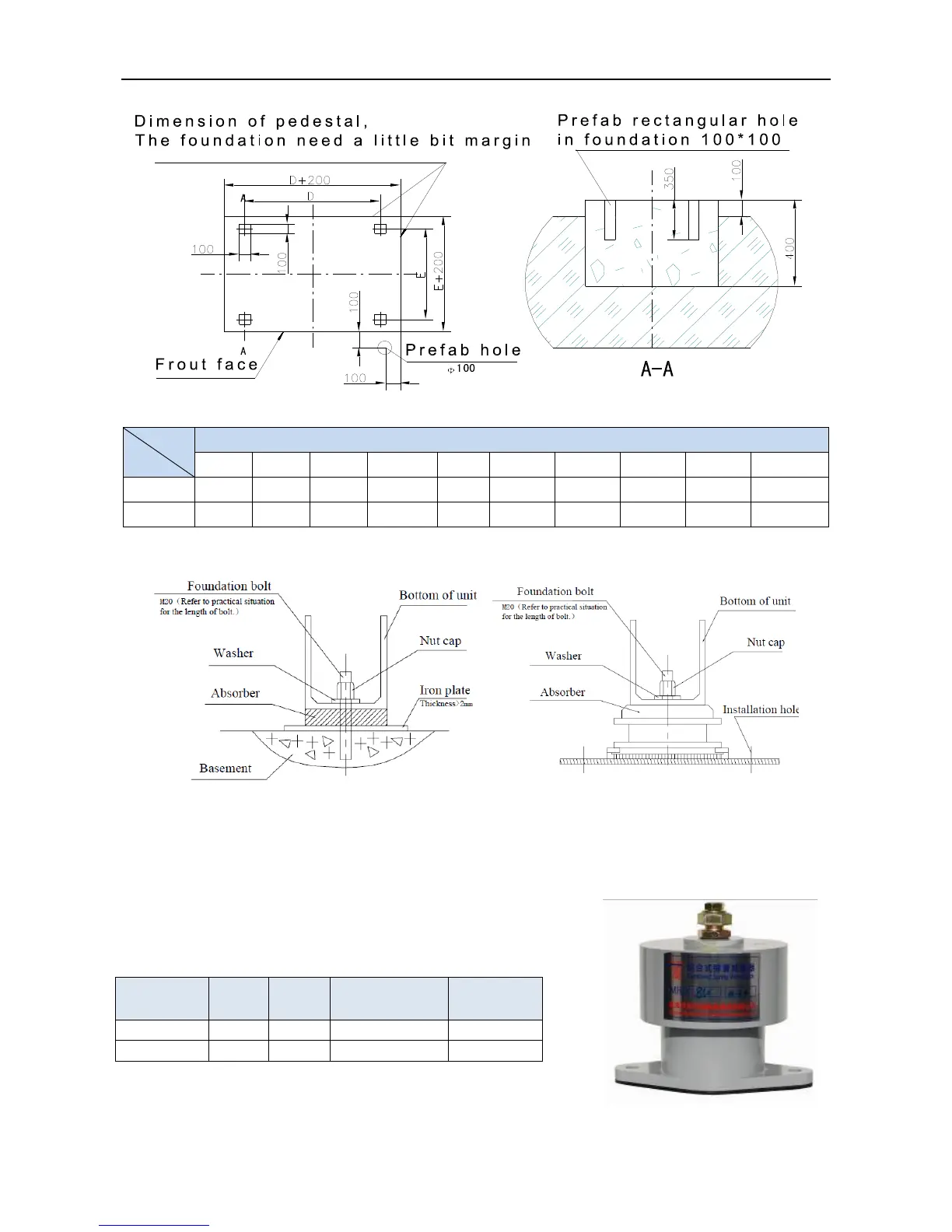

Refer to the following charts for the installation basement and fixation of unit.
The sizes of foundation bolts of different models are shown below:
Model
LSBLG***/MZ
255
320
400
485
630
860
970
1060
1260
1490
D(mm)
1600
1600
1600
1600
1800
1800
1800
1800
2000
2000
E(mm)
880
880
1000
1000
1220
1360
1440
1440
1540
1640
Fixation of unit:
Chart 1 Chart 2
Note:
(1) For chart 1, please reserve the installation holes for foundation bolt on the basement according to
installation basement diagram.
(2) For chart 2, reserve the holes for the installation of absorber on the basement.
Model
Load
(kg)
Load
(N)
Deflection
(mm)
Vertical
(kg/mm)
MHD-850
850
8330
25
34.00
MHD-1050
1050
10290
25
42.00
