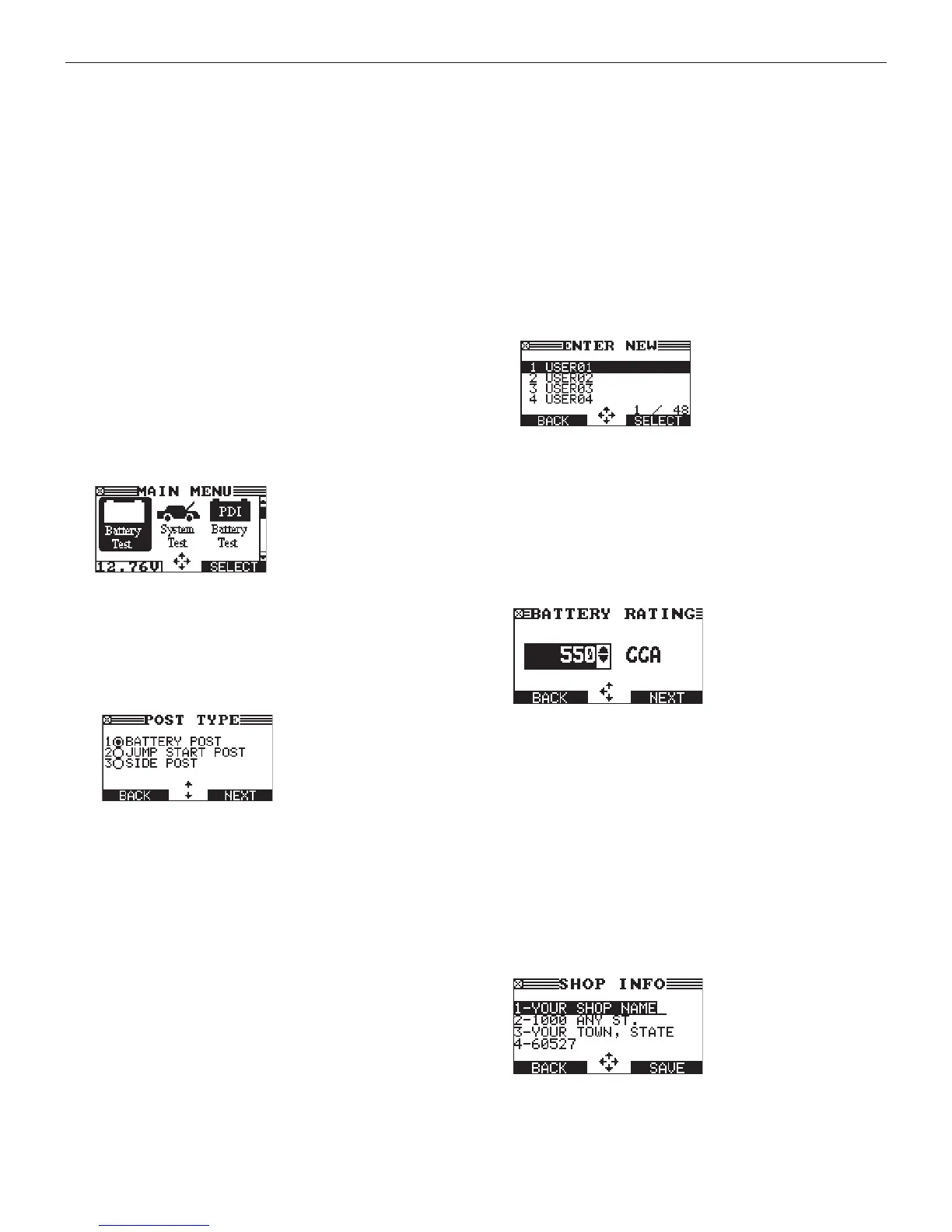

Data Entry Methods
To perform a particular test or function, the EXP requires
dierent types of information. This means that the methods
you use to enter information will change depending on the
type of information requested. The ve types of entry methods
are described below.
Typically, the soft key below the right half of the screen
conrms your choice, although the command above it may
vary. (Examples: SELECT, NEXT, and SAVE.) In a similar
fashion, the soft key below the left half of the screen cancels
your choice or returns you to the previous screen, although
the word above it may also vary. (Examples: BACK and END.)
Menu Icons
A menu icon is a graphical representation of a function you
can select, such as the Battery test Icon in the Main Menu. To
select an icon, use the LEFT ARROW or RIGHT ARROW key to
highlight it. Highlighting changes the icon to a white picture
on a black background. To conrm your selection, press the
appropriate soft key.
Option Buttons
Some lists have option buttons before each item. To select an
item, use the UP or DOWN ARROW key to move the dot to the
button next to the item. To conrm your selection, press the
appropriate soft key.
Scrolling Lists
Scrolling lists contain items that extend above and below the
screen. The rst number above the right soft key indicates
the position in the list of the highlighted item. The second
number above the right soft key indicates the number of items
in the list.
To select an item, press the UP or DOWN ARROW key to
highlight the item and press the appropriate soft key.
To move the highlight bar up four lines at a time, press the
LEFT ARROW key.
To move the highlight bar down four lines at a time, press the
RIGHT ARROW key.
Scroll Boxes
Scroll boxes contain variables that are displayed by scrolling
using arrow keys.
To select, use the UP or DOWN ARROW key to scroll to the
value, and press the appropriate soft key. In the illustration
the left directional arrow indicates that you can press the LEFT
ARROW key to clear all or part of the entry.)
Alphanumeric Entry
Some selections require you to alphanumeric characters.
These “user-dened” selections have a blinking horizontal line
(cursor) to the right of the last character.
Use the UP or DOWN ARROW keys to highlight a line for
editing. Press the SELECT soft key to edit the selected line.
Display the character or number you want by rapidly pressing
an ARROW key as many times as needed, or press and hold
the ARROW key to rapidly scroll. To backspace, press the LEFT
ARROW key. Use the RIGHT ARROW key to add a space. When
nished, press the appropriate soft key to save the text you
entered.
