Chapter 8: New Battery Test EXP-800
The PDI Battery Test in the Main Menu enables you to quickly
check new batteries in your inventory. The test can verify up
to 100 batteries in succession using the CCA rating and units
or JIS part number that you provide. This test diers from the
Battery Test in that the decision is either pass or fail. Neither
decision will tell you that a battery is bad, but rather that the
measured voltage and CCA fall in or out of your requirements.
IMPORTANT: The New Battery Test does not produce a test
code.
Selecting Test Parameters
1. Select the New Battery Test icon in the Main Menu.
2. The EXP displays the total number of PDI Tests completed
out of 100. To clear the results from memory and reset the
total to 0, simultaneously press the LEFT and RIGHT AR-
ROW keys. Press the NEXT soft key to continue.
IMPORTANT: Be sure to monitor the number of tests per-
formed and be ready to print the results as the number
approaches 100. When the limit is reached you will no
longer be able to test until you clear all results from
memory.
3.
Enter the information required in steps 6 through 9 in “Chap-
ter 6: Battery Test” on pages 22 and 23.
4. For the next few seconds the EXP evaluates the battery,
writes the results to the data card, and displays the results
starting from the last battery tested. To view a previous
result for a battery, use the UP or DOWN ARROW key to
scroll to the screen showing the battery that was tested.

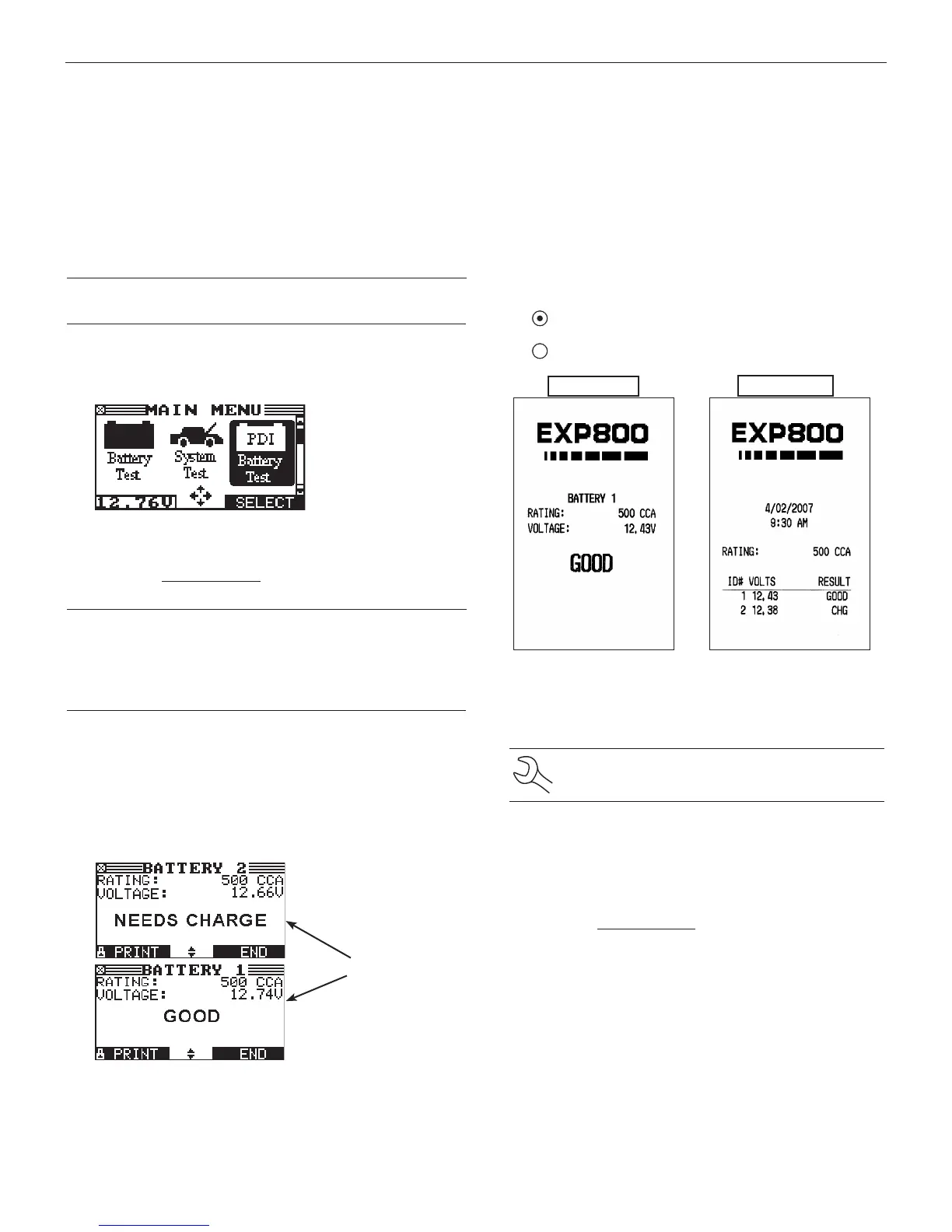

Example of
displayed results
for a test of two
batteries
5. To continue testing, connect to the next battery. The ana-
lyzer starts the test automatically using the same parame-
ters. To test another type of battery press END, then follow
steps 1 through 3 above.
Printing Test Results
1. To print the test results for an individual battery, use the
UP or DOWN ARROW key to scroll to the screen showing
the battery that was tested. Select the PRINT soft key.
2. Select option 1 to print the screen result of the selected
battery. Select option 2 to print the results of all the bat-
teries listed by the order in which they were tested. Press
NEXT.
1 PDI BATTERY
2 PDI SUMMARY
PDI BATTERY
PDI SUMMARY
When the EXP displays a total of 100 Tests
The analyzer will not be able to continue inventory testing
until you clear all tests from its memory.
NOTE: To retain a record, use the PRINT soft key
to print the results.
To clear the results and reset the counter to 0:
1. Select the EXIT soft key to return to the Main Menu.
2. Select the New Battery Test icon.
3. In the INVENTORY STAT screen press the LEFT and RIGHT
ARROW key simultaneously to clear the results and reset
the counter to 0.
Chapter 8: PDI Battery Test
