Chapter 7: System TestEXP-800
The system test rst evaluates the battery, then the starting
and charging systems.
IMPORTANT: When you start a new test, the last test results in
memory are overwritten. Remember to record or print
the results if you need to retain them.
Battery Test
The System Test includes a test of the battery to eliminate it as
the cause of starting or charging problems. See Chapter 6 on
page 22 for the Battery Test procedure.
Starter System Test
The performance of the starter and charging systems depends
on the battery’s condition. It is important that the battery is
good and fully charged before any further system testing.
1. In the Main Menu select the Battery test icon.
2. Start the engine at the prompt. If after the vehicle started
and the results do not appear after approximately 25 sec-
onds, press the NO START soft key.
3. The analyzer displays one of six decisions and the results
in a series of screens.
NOTE: In some cases, the analyzer may not de-
tect the vehicle’s starting prole and display the
soft key options STARTED and NO START. If you
select STARTED, the analyzer skips to the Charg-
ing System Test. If you select NO START, the test
process ends.
Starter System Test Results
The results include the battery analysis. Use the UP or DOWN
ARROW key to scroll to each screen. See Table 4 for on the
next page for an explanation of the starter system decisions.
To continue testing, press the NEXT soft key.

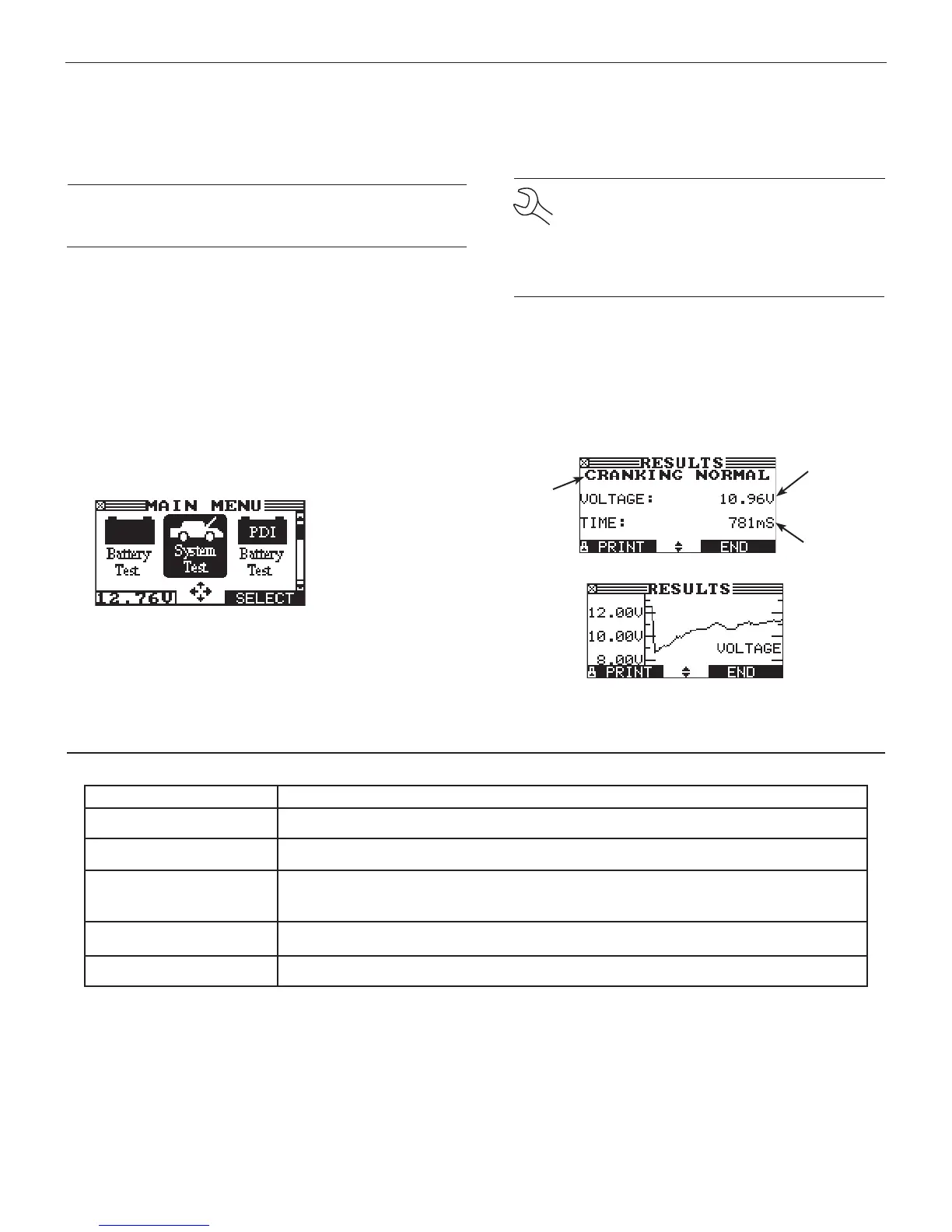

Starter
decision
Average
cranking
voltage
Cranking
time in mil-
liseconds
X axis = time
Chapter 7: System Test
Table 4: Starter System Decisions
Starting System Decision Action
CRANKING NORMAL The starter voltage is normal and the battery is fully charged.
LOW VOLTAGE The starter voltage is low and the battery is fully charged.
CHARGE BATTERY The starter voltage is low and the battery is discharged. Fully charge the battery using a
Midtronics Diagnostic Charger and retest the starter system.
REPLACE BATTERY Replace the battery and retest before testing the alternator test..
NO START The engine did not start and the test was aborted.
