Midtronics EXP-800 - Connecting and Removing Cables

7
Connecting the Battery Test Cable
!
CAUTION: To prevent damage to the analyzer’s
circuitry, do not connect the analyzer to a voltage
source greater than 30 Vdc.

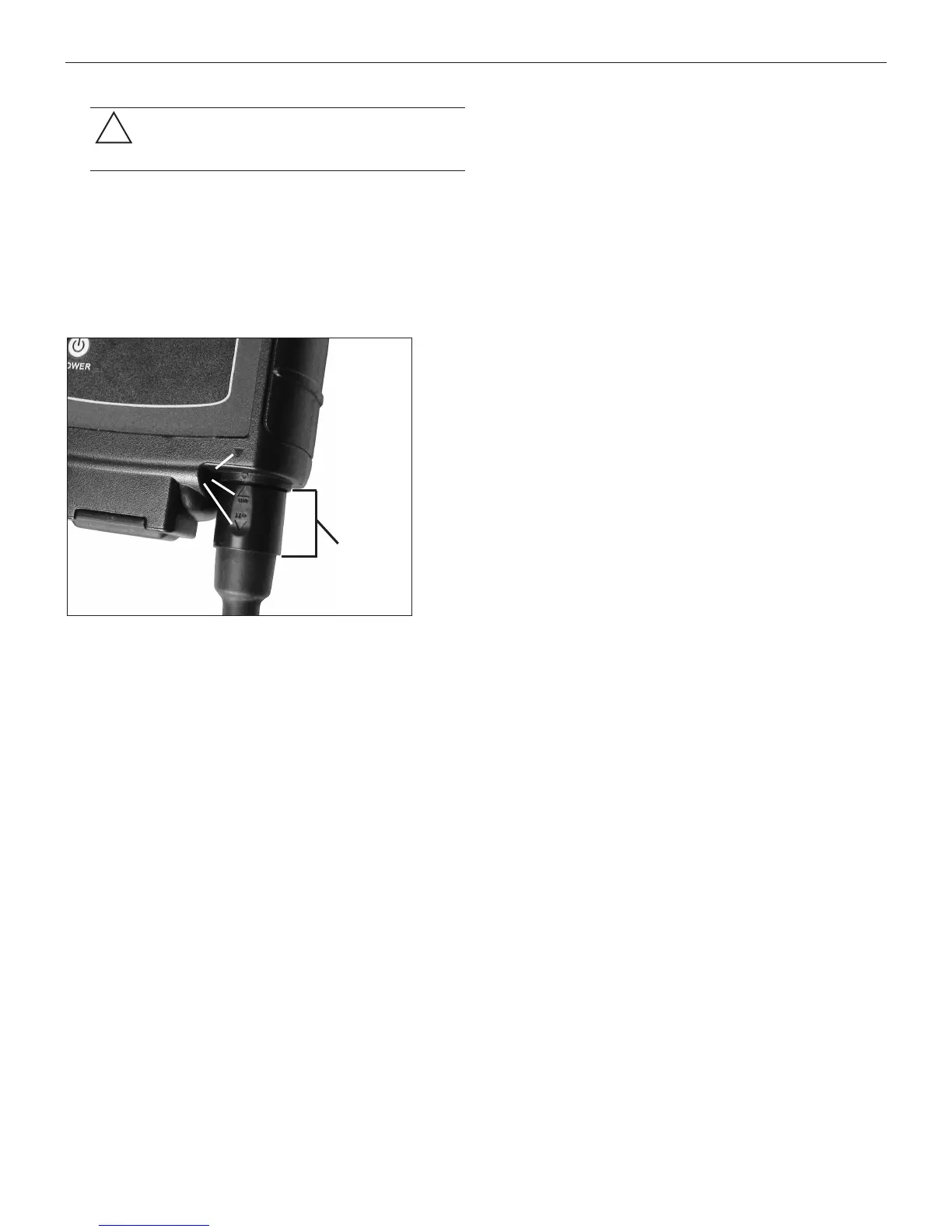

To connect the battery test cable to the analyzer align the
arrow on the cable connector with the arrows on the analyzer’s
housing. Hold the part of the cable connector as shown and
rmly insert the connector into analyzer’s six-pin receptacle.
Do not twist.
To avoid damaging the battery test cable, always hold the
ridged part of the cable connector (as shown in the photo)
when inserting and removing the cable.
Hold the
cable
connector
here
Arrows
Removing and Inserting the Data Card
The analyzer ships with a plastic insert in the data card slot to
protect it from dust and debris. To remove the plastic insert
or a data card, push briey on its edge to release it and pull it
from the slot.
When inserting a card, push it into the slot until it locks. The
card is correctly inserted when it is not protruding from the
slot. To protect the card slot and enable the analyzer to read
and write to the card, leave the card in the slot.
Chapter 2: OverviewEXP-800
