Chapter 2: Overview
EXP-800
Menu Structure
This section contains a graphical representation of the menu structure with brief descriptions of the utilities in each menu.
Main Menu
The Main Menu is the starting point for all tools and utilities, which are depicted as icons. Some icons lead directly to the
function they represent, while others are menu icons that lead to two or more options. Menu icons marked with an asterisk (
*
)
are mapped on the following pages.

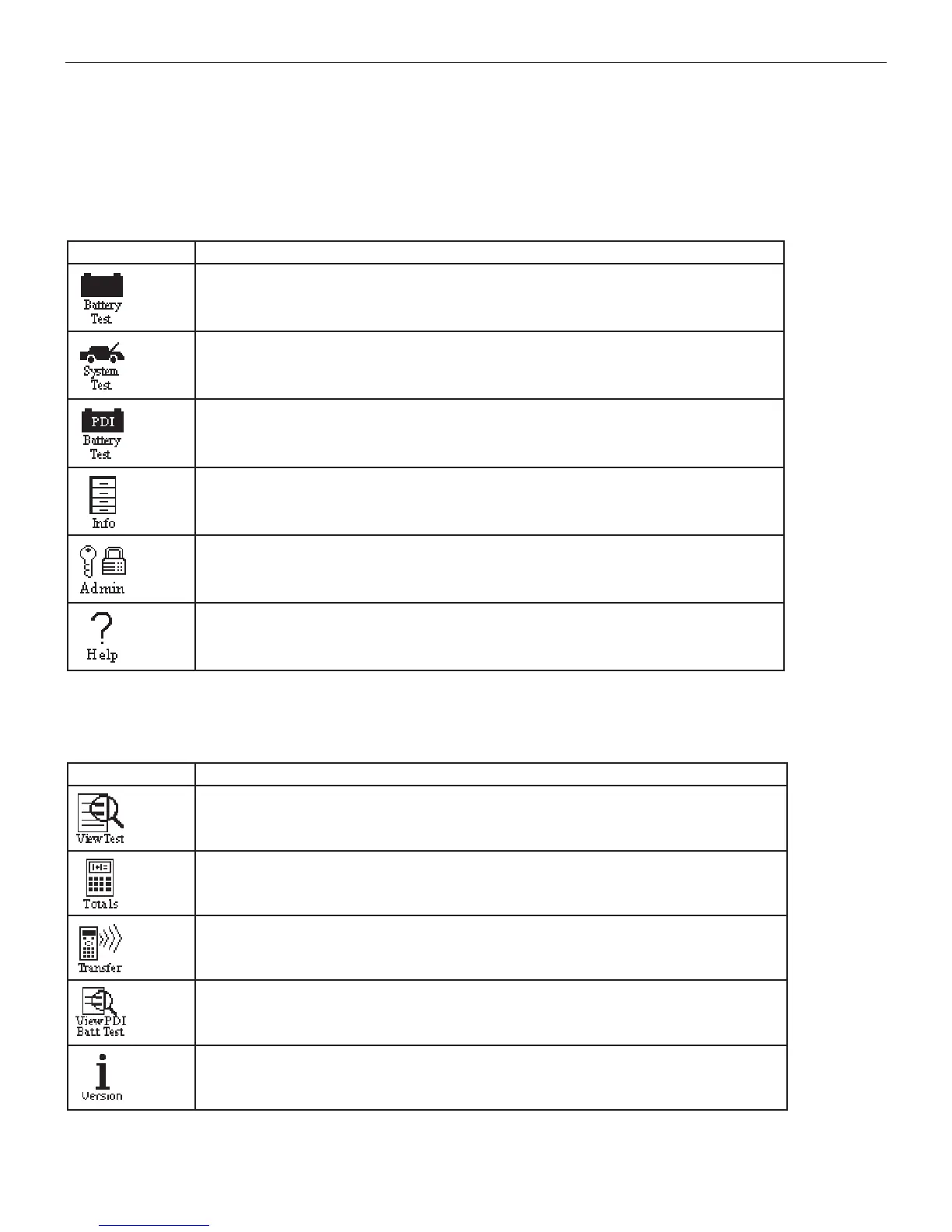

Menu Icon Description
Tests a battery using the battery information you select in a series of screens.
Tests a battery, and the starting and charging systems.
Enables you to test up to 100 batteries in succession without re-entering battery information
each time. Frees up inventory space by weeding out defective batteries.
*
Utility to view and print test results, a test counter, a data transfer utility, and information on the
analyzer software version and serial number.
*
Provides access to the Utility Menu, which allows you to customize the analyzer and
administrative functions that include setting passwords.
Provides tips for troubleshooting problems with the printer, the cables, and loss of power. Also
includes Midtronics Customer Service phone numbers.
Info Menu
The Info Menu has utilities to allow you to view and print test results, track the usage and history of your analyzer, and manage
test data.
Menu Icon Description
Displays the last battery test results. Sends the results to the internal printer.
Reports menu that includes the following type of test totals: Battery, System, Totals by User ID,
and Totals by Decision
A future optional accessory consists of an IR software and hardware package that will enable
you to transfer test data to a PC.
View and print the results of the last test of new batteries in inventory.
Displays the software version, and the serial number.
