Chapter 2: Overview EXP-800
This chapter describes the analyzer’s hardware and software interface. The components include test leads and connectors, and
the display and keypad. The user interface comprises the software menus, test options, and utilities.

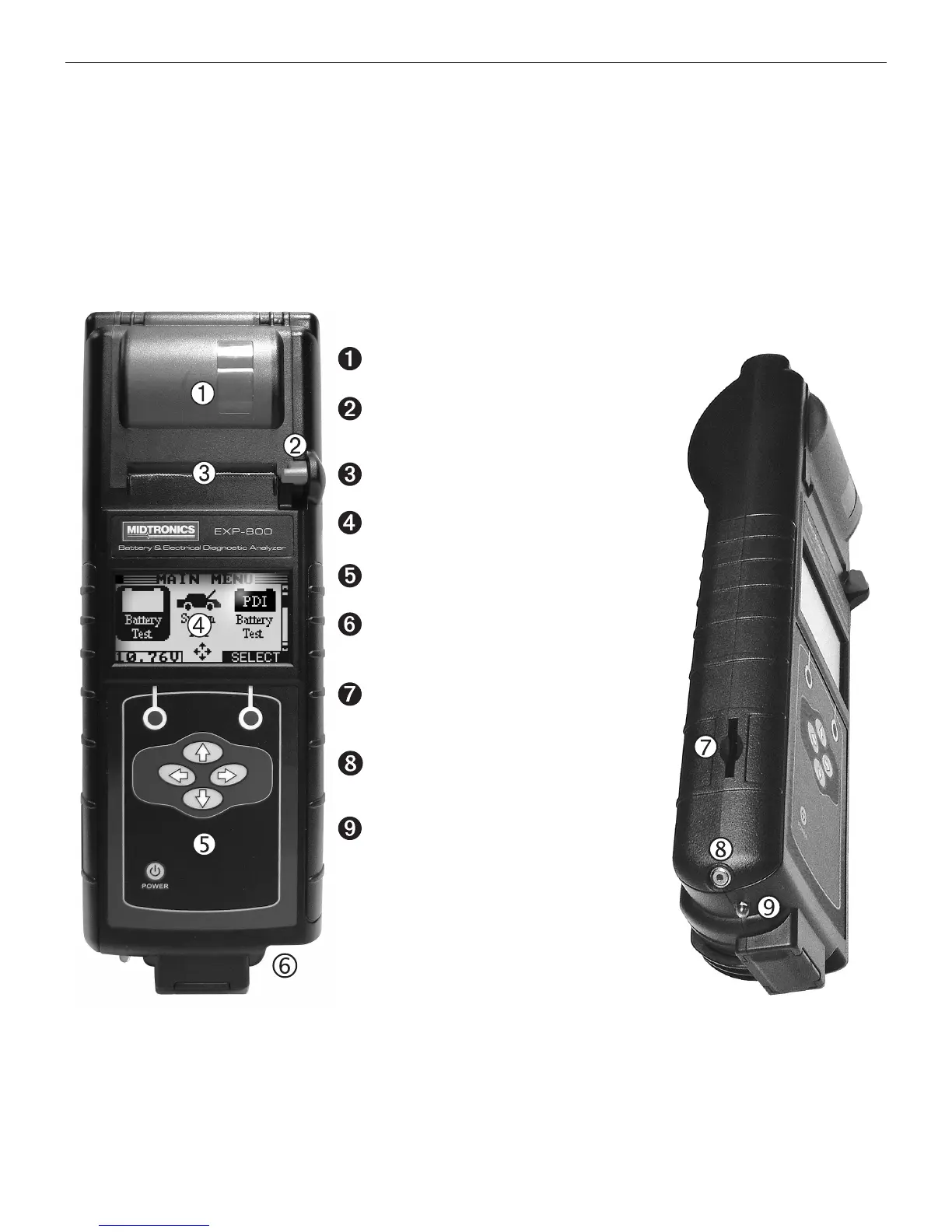

Connections and Data Ports
Integrated thermal printer
Release lever for door to paper compart-
ment
Paper slot
LCD screen with Main Menu
Control Panel: keypad and power button
6-pin connector for the battery test cable
(see the next page for detail)
Spring-loaded data card slot for test data
storage and software upgrades.
Infrared temperature sensor with a range of
-28 °C to +93 °C (-20 °F to +200 °F).
Data transmitter: sends test results to a PC
using an optional hardware and software
kit
