Miele PW 413 - Machine Overview and Control; Machine Description and Components

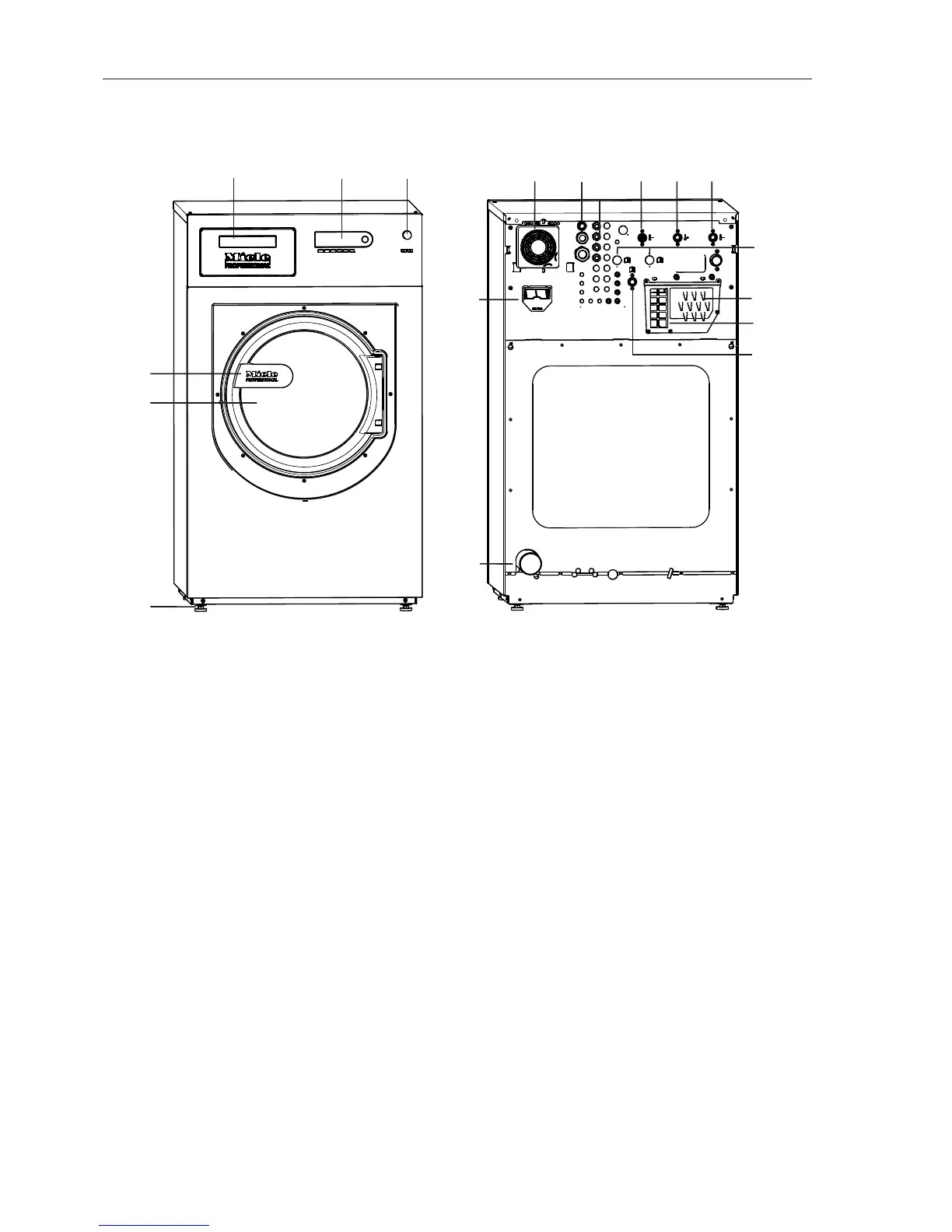

Description of the machine (with detergent dispensing com-
partment)
16
Models with detergent dispensing compartment (WEK)
⑫
⑥
⑧ ⑨
⑧
⑩
⑪
⑭
⑮
⑦②①
③
④
⑤
⑬
⑯
a
Display
see "Control panel"
b
Emergency off switch
see "Control panel"
c
Door handle
d
Drum door
e
Four adjustable feet
f
Detergent dispensing compartment
g
Electrical connection
h
Cold water connection
i
Hot water connection
j
2x hard water connection
(Optional)
k
Connections for external dispenser
pumps
l
Vapour extraction / free outlet Type AB
m
Communication module slot
The XKMRS232 communication module
is available as an optional accessory.
n
Dump valve
o
Cold water connection for liquid dis-
pensing
(Optional)
p
Fan casing
See "Installation and connection"
