Miele PW 413 - Dispensing Agent Connection to the Liquid Dispensing Mixing Compartment; Water Drainage

Installation and connection
81
Dispensing agent connection to the liquid dispensing
mixing compartment

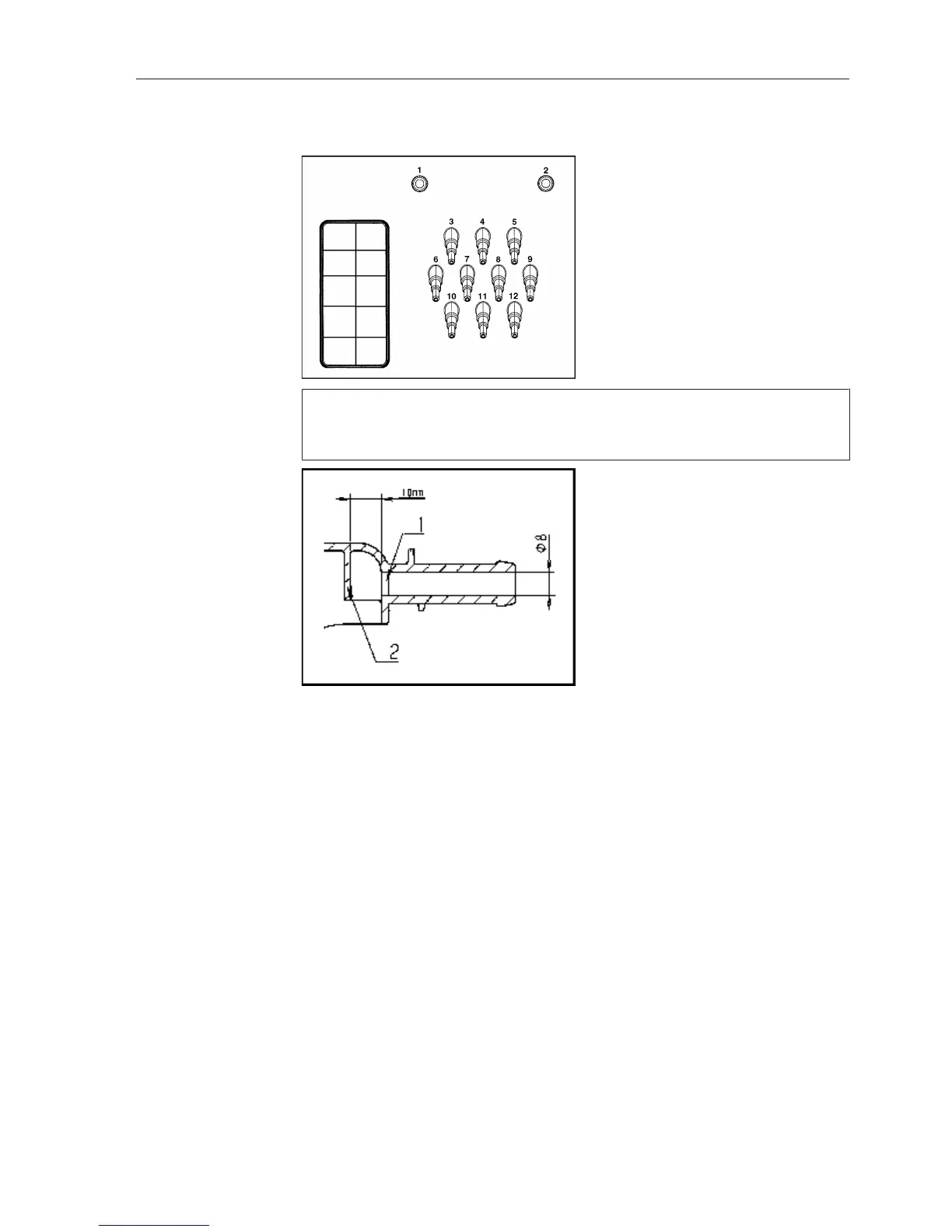

Connections 1 and 2 are provided for viscous agents. These con-
nections are sealed and need to be drilled open using an 8mm drill
bit.
Care must be taken to drill through the first wall (1) only, as there is a
deflecting wall (2)10mm behind it.
If the drilled out connections are no longer required, they must be re-
sealed.
Connections 3 to 12 are provided for liquid dispensing. These con-
nections are sealed and must be cut to suit the diameter of the hose
with a suitable hacksaw. If opened connections are no longer re-
quired, they must be resealed.
Water drainage
AV machines: DN70 on the machine, DN 70 sleeve on-site. Through-
flow rate 200l/min.
If the slope for drainage is extremely steep, the piping must be vented
to prevent formation of a vacuum in the machine's drain system.
Foam and vapour venting kitBWS
If excessive suds form, foam may escape from the vapour vent. To re-
move the foam, an optional vapour venting kit (BWS) can be used.
