Installation and connection
79
Installation on a raised plinth
When installed on a raised plinth, the machine must be secured to the
plinth. When installed on a concrete base the machine must be se-
cured to the base. The plinth must be secured to the floor.
Transport safety panels

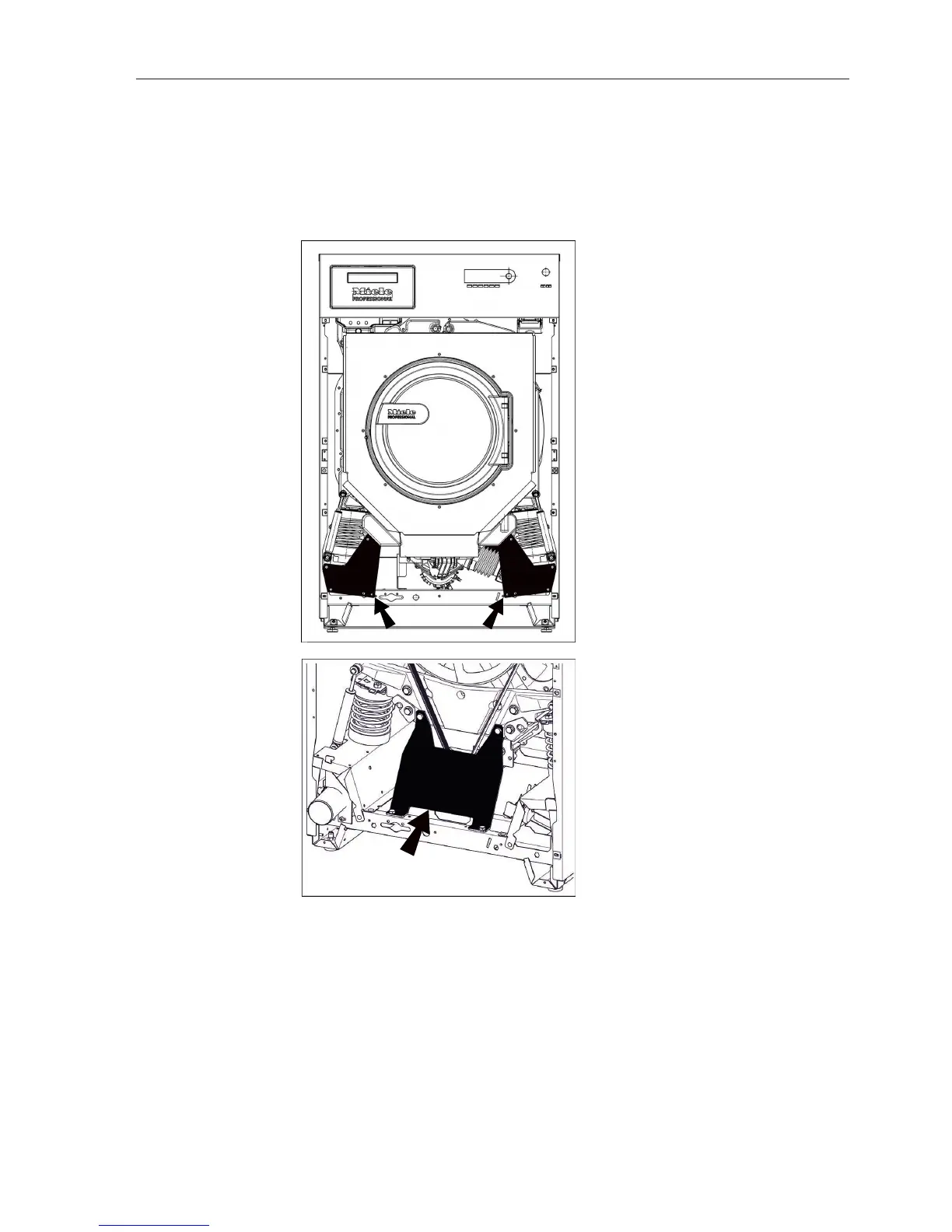

Removing the transport safety panels
The 2 transport safety panels at the front are each secured with 3
hexagon screws. The transport safety panels at the back are each se-
cured with 4 hexagonscrews. The transport safety panels must only
be removed when the machine is in place, before it is commissioned.
Remove the front and back panel:
Unscrew the screws at the bottom of the front panel and remove
the panel.
