User Manual
11

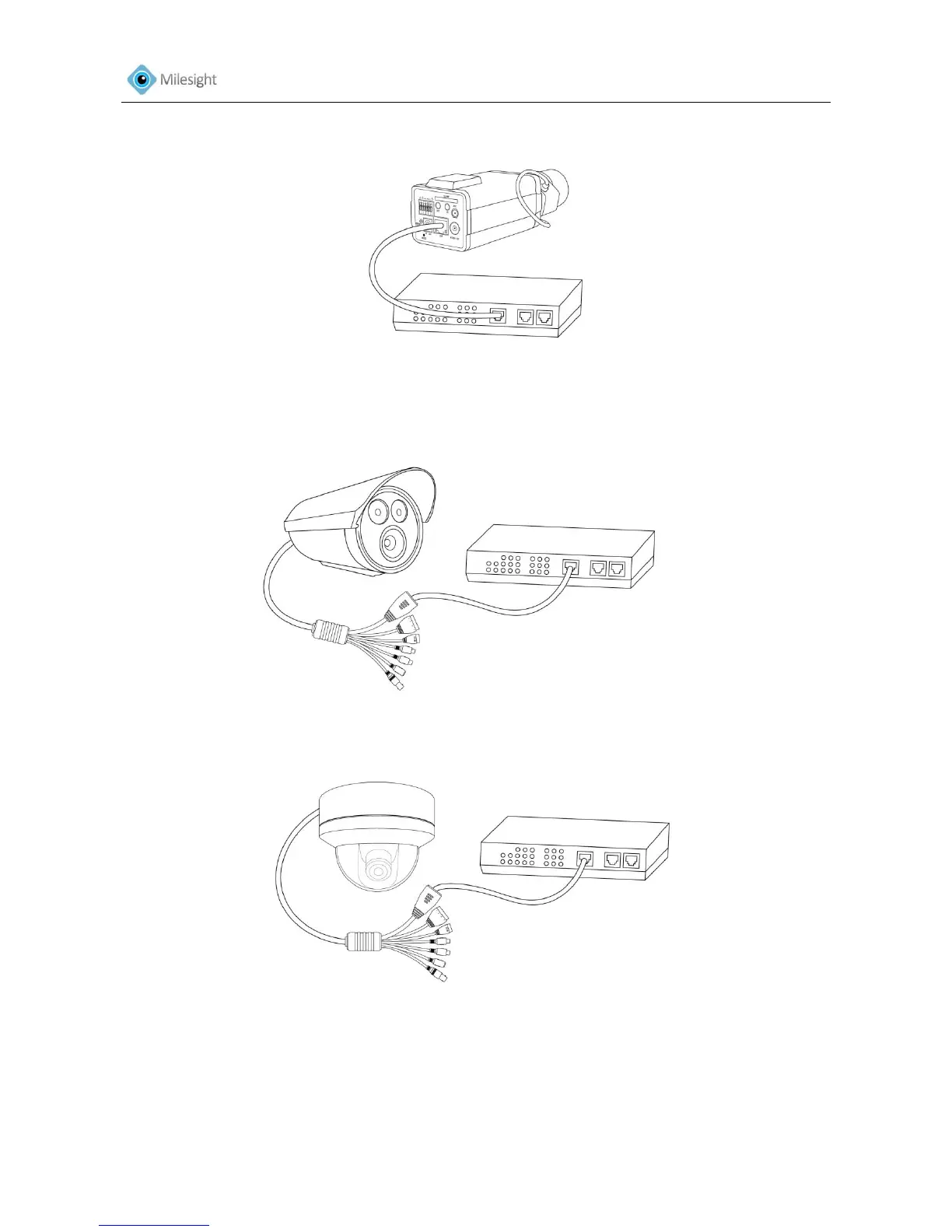

Figure 1-10Box Camera
Figure 1-11 Bullet Camera
Figure 1-12 Dome Camera
B. Connect the camera to a non-PoE switch using the PoE injector
Step 1: Connect the camera to a PoE injector using an Ethernet cable.
Step 2: Connect the PoE injector to the non-PoE switch using an Ethernet cable.
Step 3: Connect the PoE injector to a power outlet.
