OM-273473 Page 13

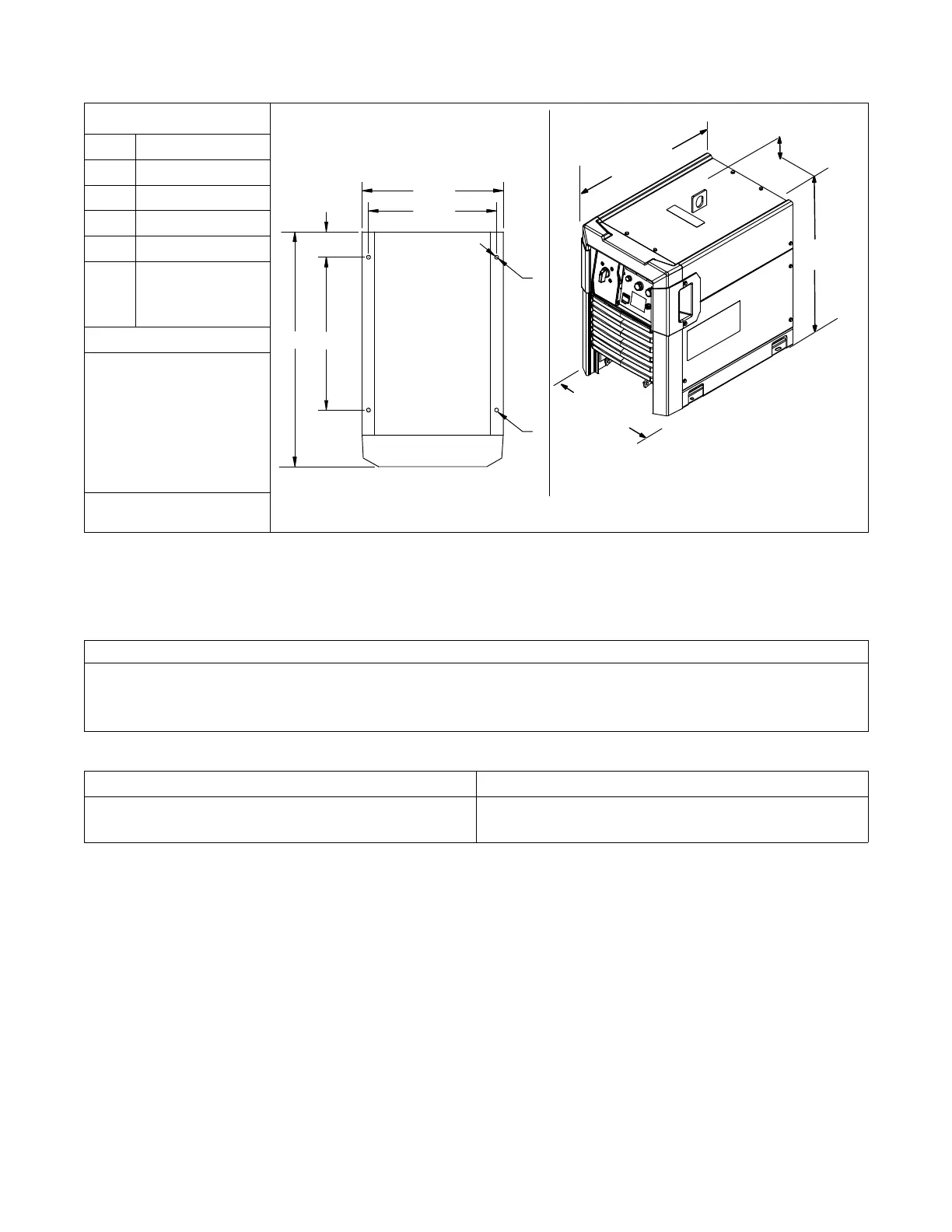

4-4. Dimensions And Weight
Hole Layout Dimensions
**28−7/32 in.
(717 mm)
24-57/64 in
(632 mm)
907657-tp1
18-3/16 in.
(462 mm)
*Height includes lifting eye
**Length includes E−Stop cover
*27-3/16 in.
(691 mm)
B
C
D
A
E
G
F
A 17-33/64 in. (445 mm)
B 17-3/8 in. (441 mm)
C 26-11/64 in. (665 mm)
D 16-3/32 in. (409 mm)
E 2-9/32 in. (58 mm)
F 15/32 in. (12 mm)
G
15/32 x 1 in.
(12 x 25mm)
Weight
350 Model:
130 lb (59.4 kg)
350 Model w/Aux Power:
139 lb (63.5 kg)
500 Model:
151 lb (69 kg)
500 Model w/Aux Power:
160 lb (73.1 kg)
Lifting Eye Weight Rating:
1000 lb (453 kg) Maximum
4-5. Environmental Specifications
A. IP Rating
IP Rating
IP23S
This equipment is designed for outdoor use. It may be stored, but is not intended to be used for welding outside during precipitation unless
sheltered.
IP23S 2014−06
B. Temperature Specifications
Operating Temperature Range* Storage/Transportation Temperature Range
14 to 104 °F (-10 to 40°C)
*Output is derated at temperatures above 104°F (40°C).
−4 to 131 °F (−20 to 55°C)
Temp_2016-07
4-6. Static Characteristics
The static (output) characteristics of the welding power source can be described as flat during the GMAW process and drooping during the CAC−A
process. Static characteristics are also affected by control settings (including software), electrode, shielding gas, weldment material, and other factors.
Contact the factory for specific information on the static characteristics of the welding power source.
