Miller Auto-Continuum 350 - Remote 10 Wire Feeder Control Receptacle RC2 Information; Volt Sense Receptacle RC3 Information

OM-273473 Page 18

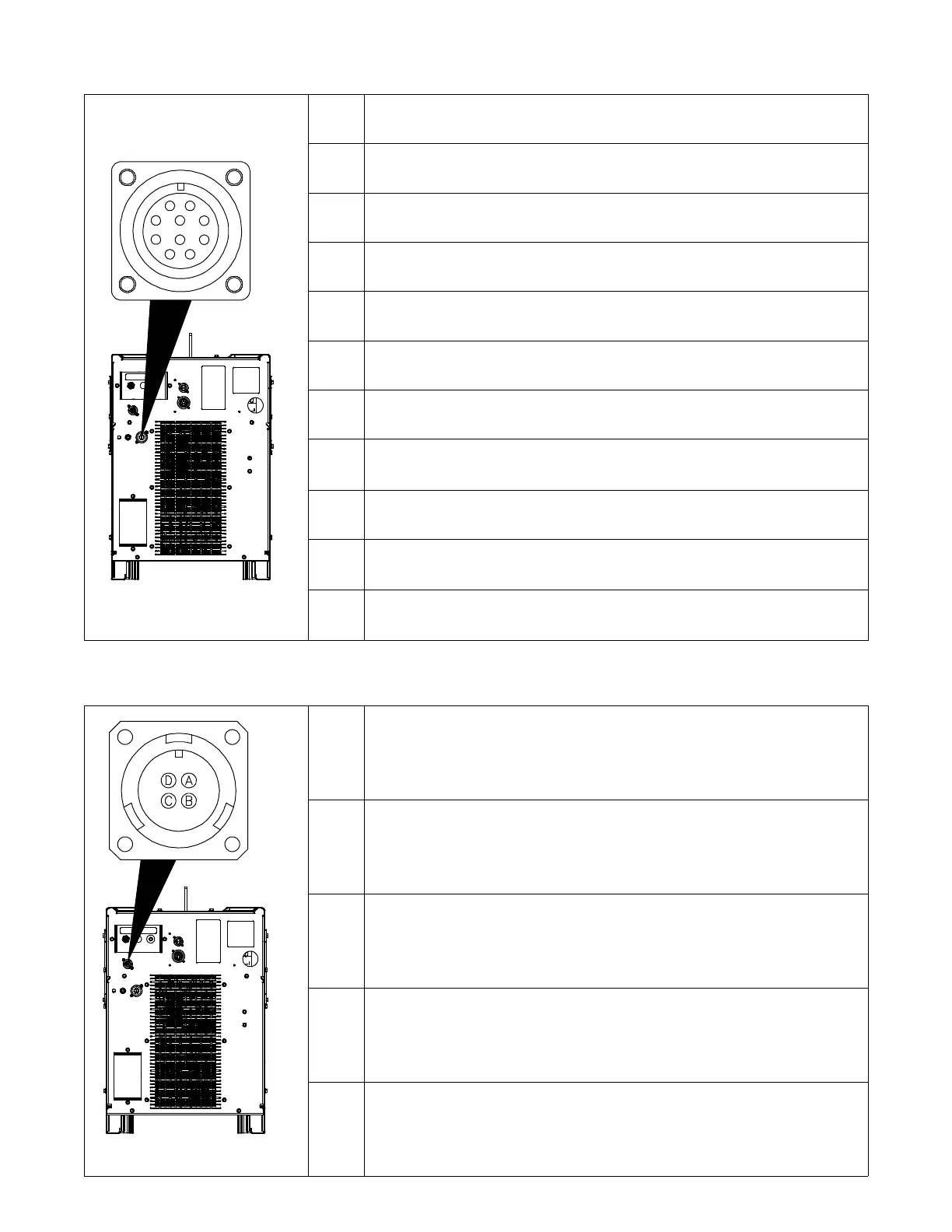

5-4. Remote 10 Wire Feeder Control Receptacle RC2 Information
907 657-tp2
A
B
C
D
E
F
G
H
I
J
Socket Socket Information
A +50 Volts DC Common
B +50 Volts DC Common
C Voltage Sense
D +50 Volts DC Power
E +50 Volts DC Power
F ENET Rx −
G ENET Tx −
H Drain
I ENET Tx +
J ENET Rx +
5-5. Volt Sense Receptacle RC3 Information
907 657-tp2
Socket Socket Information
A Not Used
B Volt Sense Negative
C Not Used
D Not Used
