OM-273473 Page 20

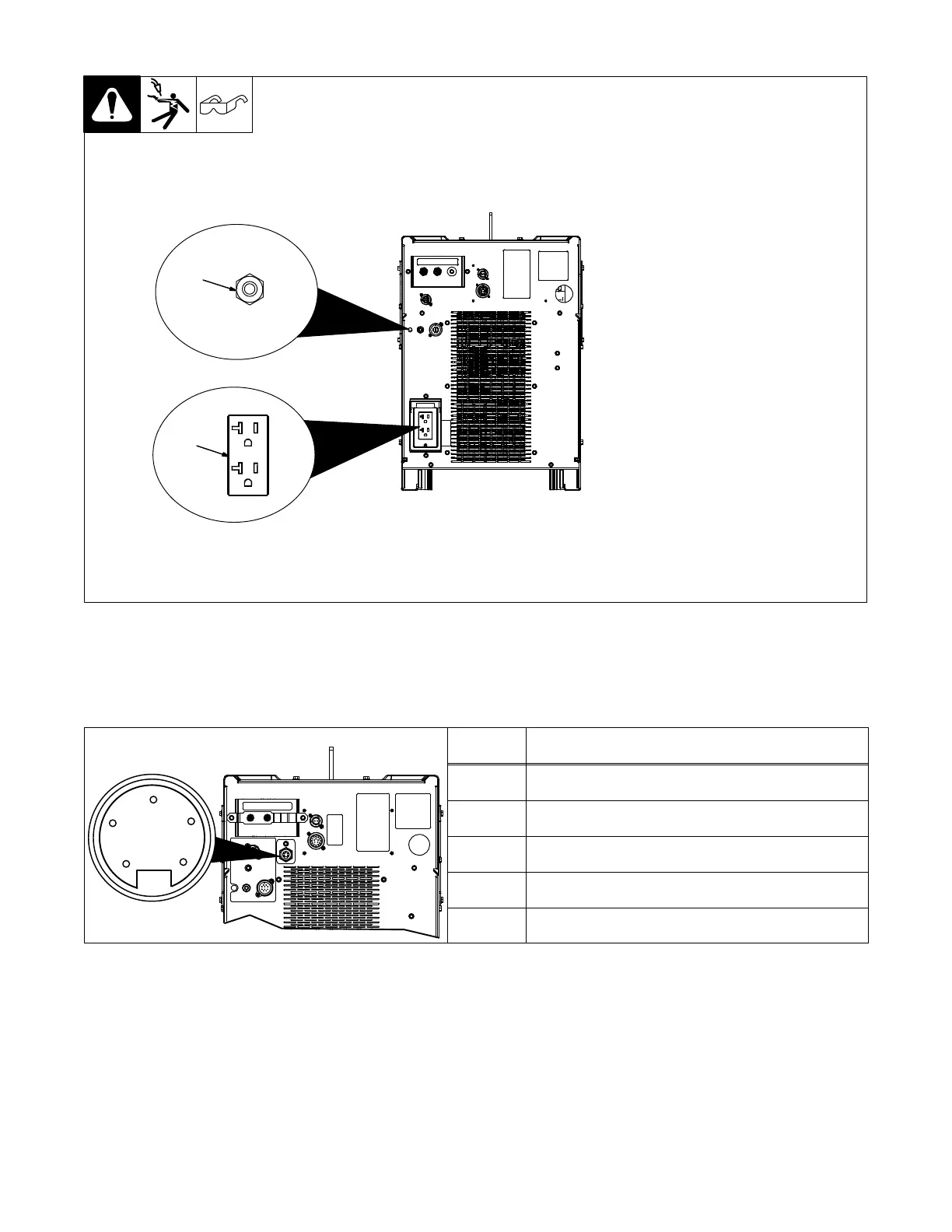

5-8. Aux Power And CB2 (Optional)
1 115 V AC Receptacle
2 Supplementory Protector CB2
CB2 protects 115 V AC receptacle.
. Press button to reset breaker. If
breaker continues to open,
contact a Factory Authorized
Service Agent.
Ref. 907641−TP1 / 907657-tp2
2
1
5-9. Devicenet Receptacle
Ref. 277971-A
A
B
C
D
E
Socket Socket Information
A Chassis ground.
B +24 volts DC; available current is 1 ampere.
C +24 volts DC common.
D CAN H.
E CAN L.
