OM-286504 Page 23
F
Complete Parts List is available at www.MillerWelds.com

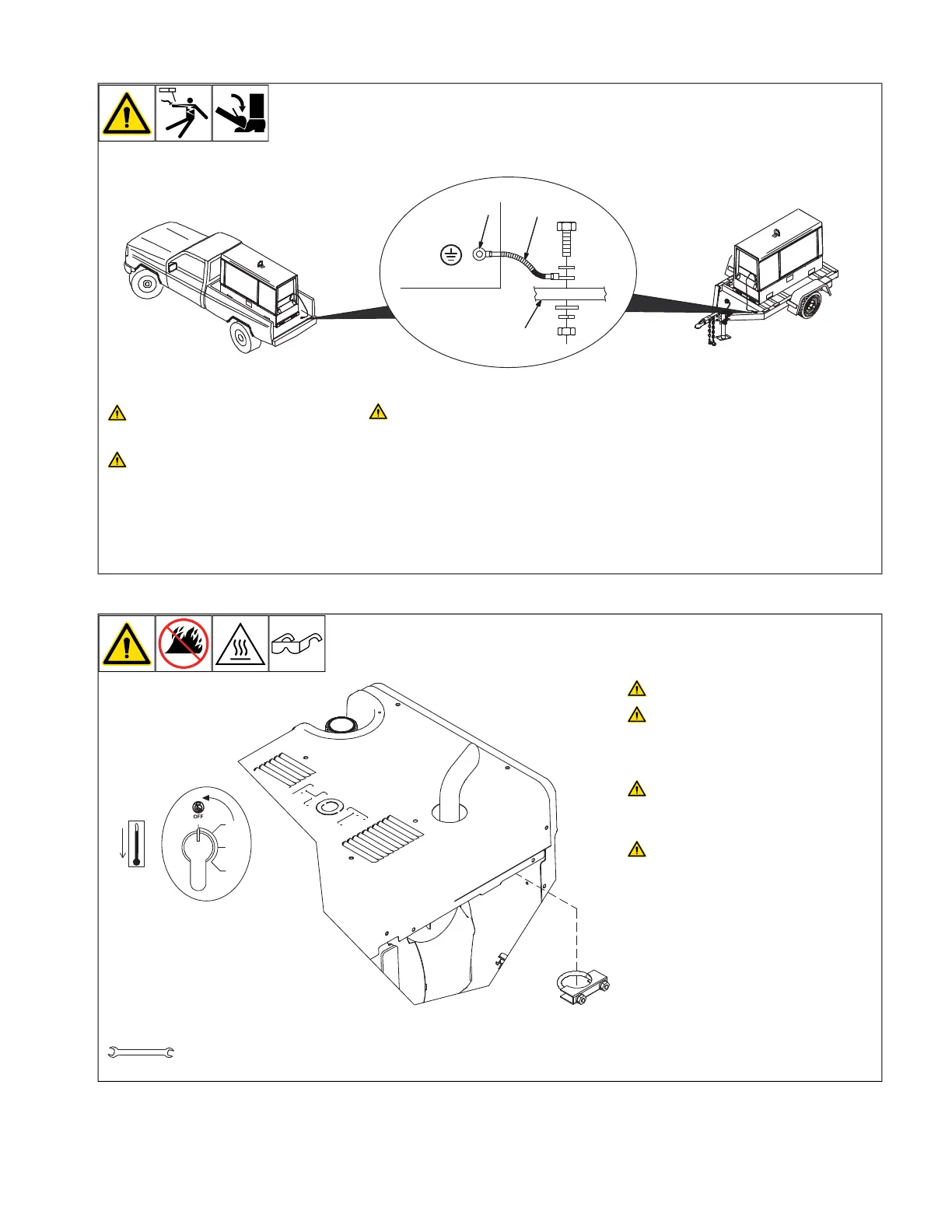

5-2. Grounding Generator to Truck or Trailer Frame
OM-236 948 Page 1
1-1. Grounding Generator To Truck Or Trailer Frame
1
3
2
GND/PE
Always ground generator frame to
vehicle frame to prevent electric
shock and static electricity hazards.
Also see AWS Safety & Health Fact
Sheet No. 29, Grounding of Portable
And Vehicle Mounted Welding
Generators.
Bed liners, shipping skids, and
some running gear insulate the
welding generator from the vehicle
frame. Always connect a ground
wire from the generator equipment
grounding terminal to bare metal on
the vehicle frame as shown.
1 Equipment Grounding Terminal (On
Front Panel)
2 Grounding Cable (Not Supplied)
3 Metal Vehicle Frame
Connect cable from equipment ground ter-
minal to metal vehicle frame. Use #8 AWG
or larger insulated copper wire.
F
Electrically bond generator frame to
vehicle frame by metal-to-metal
contact.
5-3. Installing Exhaust Pipe
Complete Parts List available at www.MillerWelds.com
OM-249336 Page 5
253857-A
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
stripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
crescent wrench
1/2 in.
Stop engine and let cool.
Engine backfire can cause severe
burns or other injuries. Do not
point exhaust pipe toward control
panel. Keep away from exhaust
outlet.
Do not point exhaust pipe toward
LP fuel tank (if equipped). Do not
point exhaust pipe towards shield-
ing gas tank (if equipped).
Point exhaust pipe in desired di-
rection but always away from front
panel and direction of travel.
To Next Page
