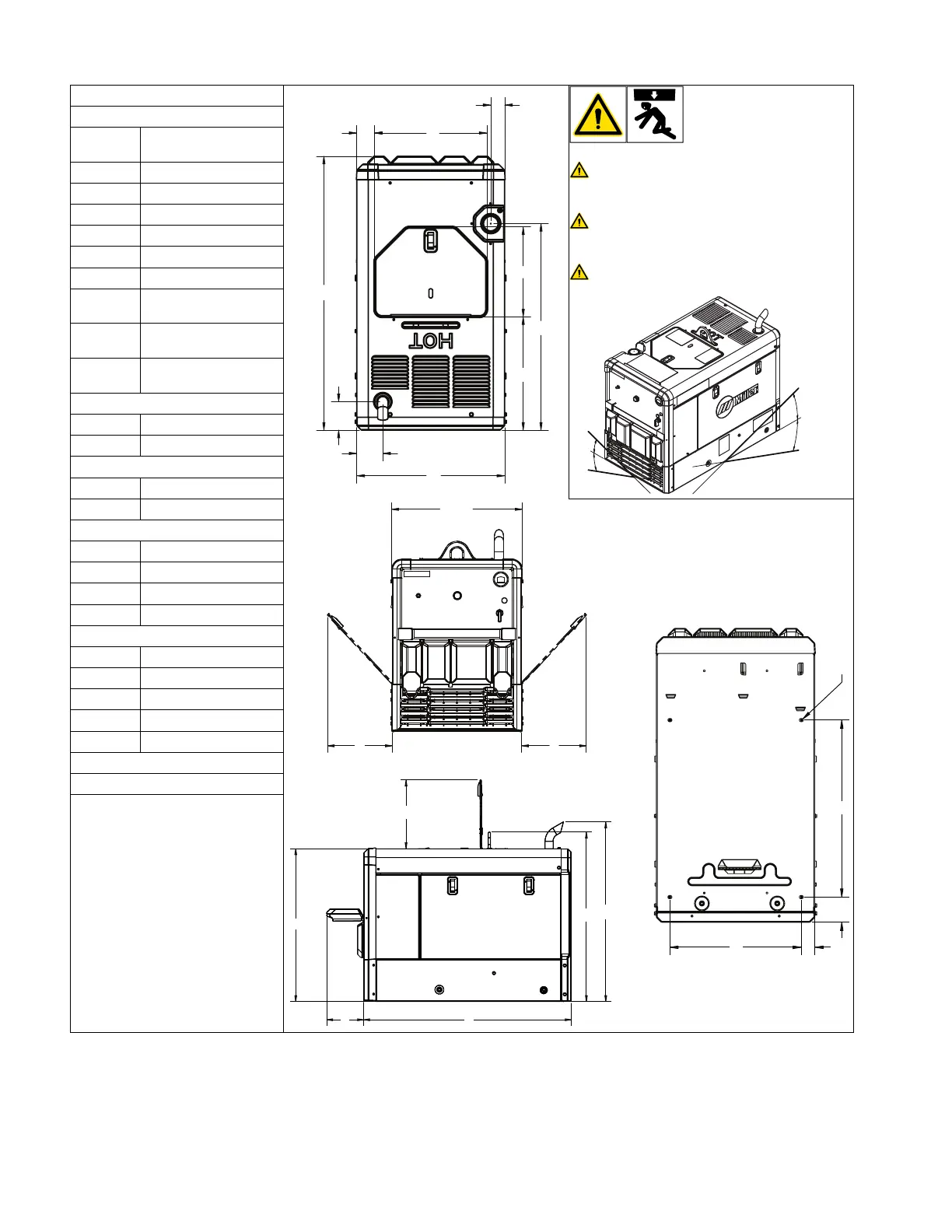

4-6. Base Unit Dimensions, Weights, And Operating Angles
Dimensions
C
H
J
K
L
M
N
P Q
DEPTH
Do not exceed tilt angles or engine could
be damaged or unit could tip.
Do not move or operate unit where it could
tip.
Do not operate suspended from lifting eye.
20°
20°
20°
20°
External Dimensions
Height (With Exhaust) 31.16
in. (791 mm)
Width 20.13 in. (511 mm)
Depth 37.06 in. (941 mm)
A 26.5 in. (673 mm)
B 36 in. (914 mm)
C 20 in. (508 mm)
D 29.38 in. (746 mm)
E (Top Door Clearance)
11.91 in. (303 mm)
F (Output Cover Clear-
ance) 6.4 in. (163 mm)
G (Side Door Clearance)
9.97 in. (253 mm)
Exhaust Pipe Location
H 3.85 in. (98 mm)
J 3.51 in. (89 mm)
Fuel Fill Location
K 27.95 in. (710 mm)
L 1.88 in. (48 mm)
G
G
WIDTH
A
B
D
E
F
HEIGHT
V
R
S
T
U
Top Door Location
M 15.33 in. (389 mm)
N 12.16 in. (309 mm)
P 2.4 in. (61 mm)
Q 15.2 in. (386 mm)
Mounting Hole Location
R 3.18 in. (81 mm)
S 22.31 in. (567 mm)
T 1.72 in. (44 mm)
U 16.56 in. (421 mm)
V 0.406 in. (10.31 mm)
Weight
385 lb (175 kg)
Lifting Eye Weight Rating:
1100 lb (499 kg)
