OM-291417 Page 27
F
Complete Parts List is available at www.MillerWelds.com

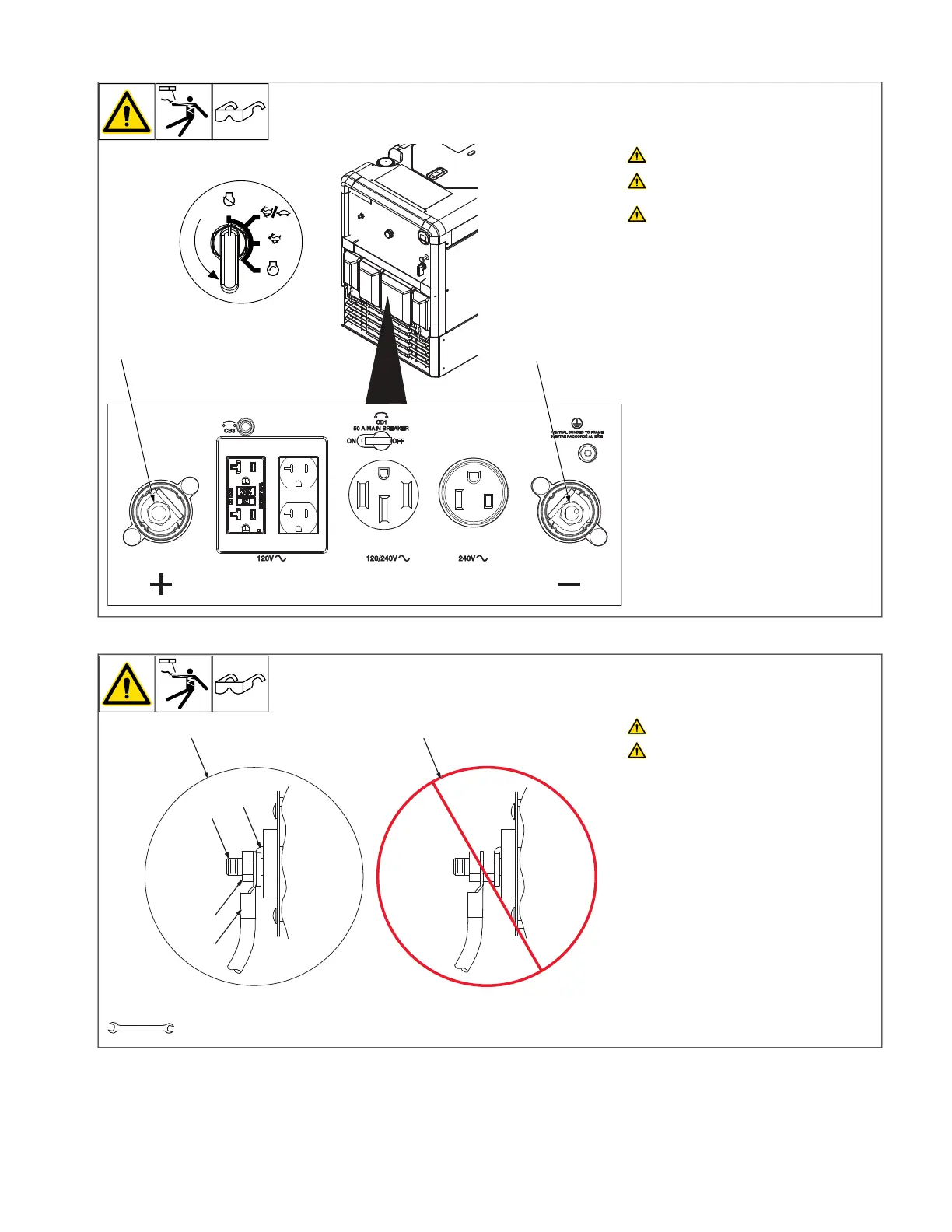

5-7. Weld Output Terminals
Stop engine.
Turn off power before connecting
to weld output terminals.
Do not use worn, damaged, under-
sized, or repaired cables.
1 Positive Weld Output Terminal
2 Negative Weld Output Terminal
Connect electrode or torch cable to positive
terminal for Direct Current Electrode Positive
(DCEP) or the negative terminal for Direct
Current Electrode Negative (DCEN).
Use Process Selector switch to select type
of weld output (see Section 6-1).
F
See Sections 6-3 thru 6-4 for typical
process connections and control
settings.
5-8. Connecting Weld Output Cables
Complete Parts List available at www.MillerWelds.com
OM-249336 Page 26
4
2
3
1
5
6
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
stripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
crescent wrench
3/4 in. (19 mm)
Stop engine.
Failure to properly connect weld
cables may cause excessive heat
and start a fire, or damage your
machine.
F
Do not place anything between weld
cable terminal and copper bar. Make
sure that the surfaces of the weld cable
terminal and copper bar are clean.
1 Correct Weld Cable Connection
2 Incorrect Weld Cable Connection
3 Weld Output Terminal
4 Supplied Weld Output Terminal Nut
5 Weld Cable Terminal
6 Copper Bar
Remove supplied nut from weld output termi-
nal. Slide weld cable terminal onto weld out-
put terminal and secure with nut so that weld
cable terminal is tight against copper bar.
To Next Page
