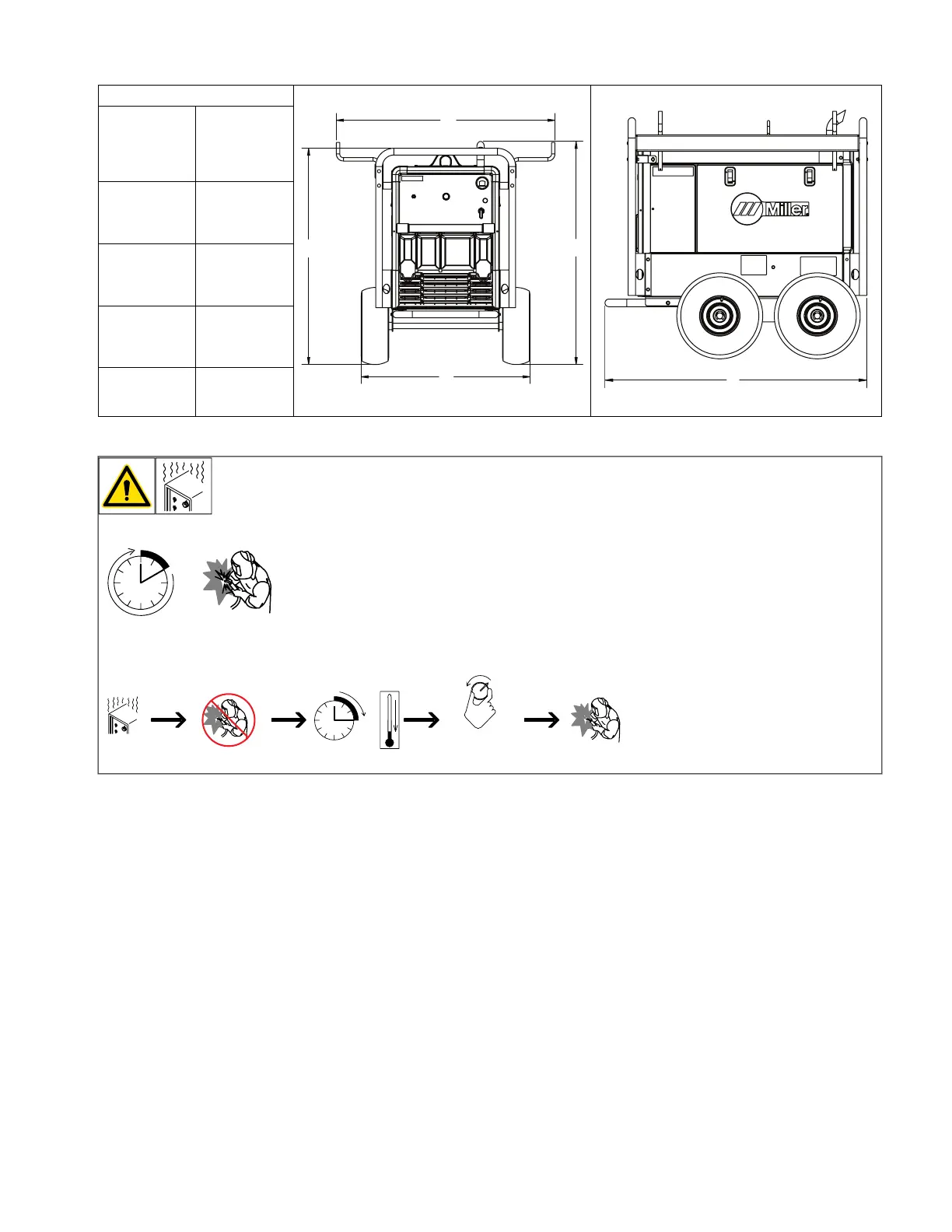

4-7. Dimensions For Units With Optional Running Gear
Dimensions
A
Height To Top
Of Exhaust
Pipe:
41.46 in.
(105.31 cm)
B
Height To Top
Of Handle:
40.18 in.
(102.06 cm)
C
Width With Ca-
ble Holders:
40.62 in.
(103.17 cm)
D
Width Without
Cable Holders:
31.36 in.
(79.65 cm)
E
Length:
43.65 in.
(110.87 cm)
4-8. Duty Cycle And Overheating
100% Duty Cycle at 265 Amperes DC
Overheating
0
15
A or V
OR
Reduce Duty Cycle
Minutes
Duty cycle is the percentage of 10 minutes
that unit can weld at rated load without
overheating.
F
This unit is rated for welding at 265 am-
peres continuously.
NOTICE – Exceeding duty cycle can dam-
age unit and void warranty.
