5-2. Grounding Generator to Truck or Trailer Frame
OM-236 948 Page 1

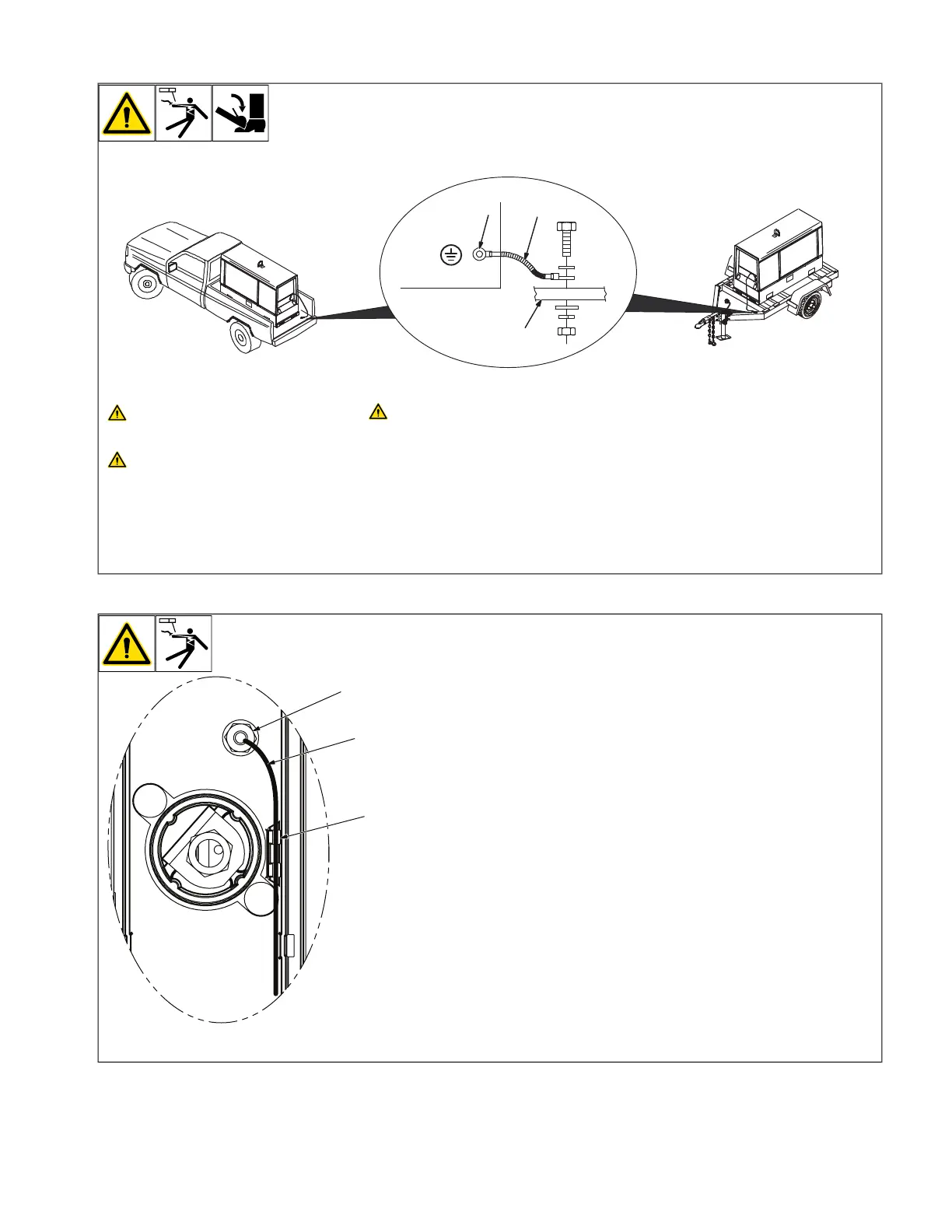

1-1. Grounding Generator To Truck Or Trailer Frame
1
3
2
GND/PE
Always ground generator frame to
vehicle frame to prevent electric
shock and static electricity hazards.
Also see AWS Safety & Health Fact
Sheet No. 29, Grounding of Portable
And Vehicle Mounted Welding
Generators.
Bed liners, shipping skids, and
some running gear insulate the
welding generator from the vehicle
frame. Always connect a ground
wire from the generator equipment
grounding terminal to bare metal on
the vehicle frame as shown.
1 Equipment Grounding Terminal (On
Front Panel)
2 Grounding Cable (Not Supplied)
3 Metal Vehicle Frame
Connect cable from equipment ground ter-
minal to metal vehicle frame. Use #8 AWG
or larger insulated copper wire.
F
Electrically bond generator frame to
vehicle frame by metal-to-metal
contact.
5-3. Ground Cable Routing
1
2
3
F
See Section 5-2 prior to routing ground-
ing wire.
1 Equipment Grounding Stud
2 Grounding Cable
3 Grounding Cable Retention Clip
Route cable from equipment grounding ter-
minal to metal frame through cable retention
clip.
Use #8 AWG insulated copper wire.
