Miller Bobcat 265X User Manual

OM-291417 Page 36
F
Complete Parts List is available at www.MillerWelds.com
7-3. Simultaneous Weld And Power
Weld Current in Amperes Total Power in Watts 120 V Full kVA (4 Wire) Recep-
tacle Amperes
240 V Full kVA Receptacle
Amperes
260 1600 13 6
180 4600 38 19
125 6300 53 26
90 7300 61 30
0 9500 79 39

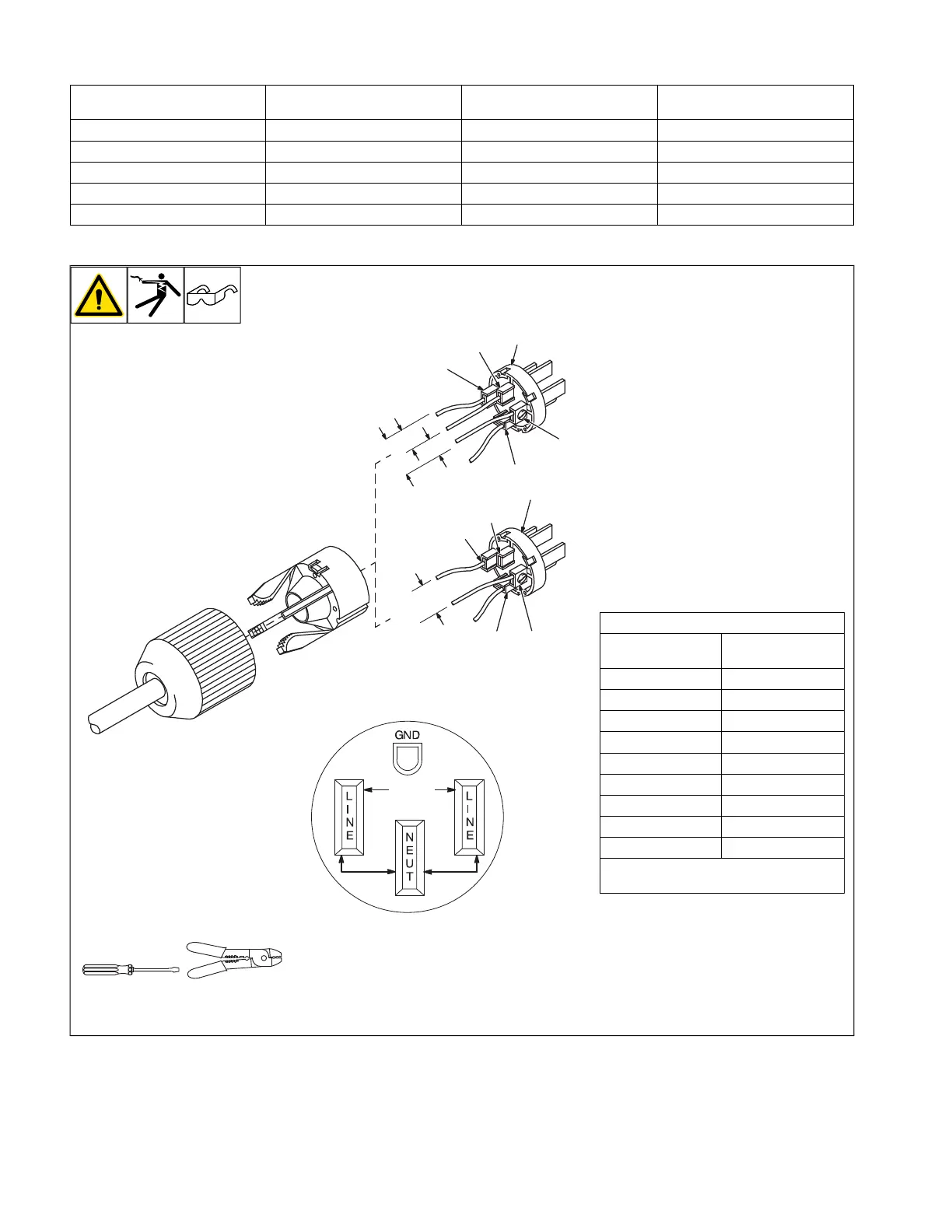

7-4. Wiring Instructions For 240 Volt, Single-Phase Plug (NEMA 14-50P)

Complete Parts List available at www.MillerWelds.com
OM-249336 Page 1
1
2
3
4
56
3
4
5
6
240V
240V
120V
120V
240 V
AC
120 V
AC
120 V
AC
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
stripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
cr
escent wrench
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
stri
pcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
hand
ream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
crescent wrench
The plug can be wired for a 240 V, 2-wire
load or a 120/240V, 3-wire load. See circuit
diagram.
1 Plug Wired for 120/240 V, 3-Wire Load
When wired for 120 V loads, both duplex re-
ceptacle share a load with one half of 240 V
receptacle.
2 Plug Wired for 240 V, 2-Wire Load
3 Neutral (Silver) Terminal
4 Load 1 (Brass)Terminal
5 Load 2 (Brass) Terminal
6 Ground (Green) Terminal
Current Available in Amperes
240 V Receptacle* Total 120 V Duplex
Receptacles
0 20
5 20
10 20
15 20
20 20
25 20
30 20
35 10
40 0
V x A = Watts
*One 240 V load or two 120 V loads
