Miller Bobcat 3 Phase - 4-5. Volt-Ampere Curves

 A complete Parts List is available at www.MillerWelds.com
OM-4436 Page 12

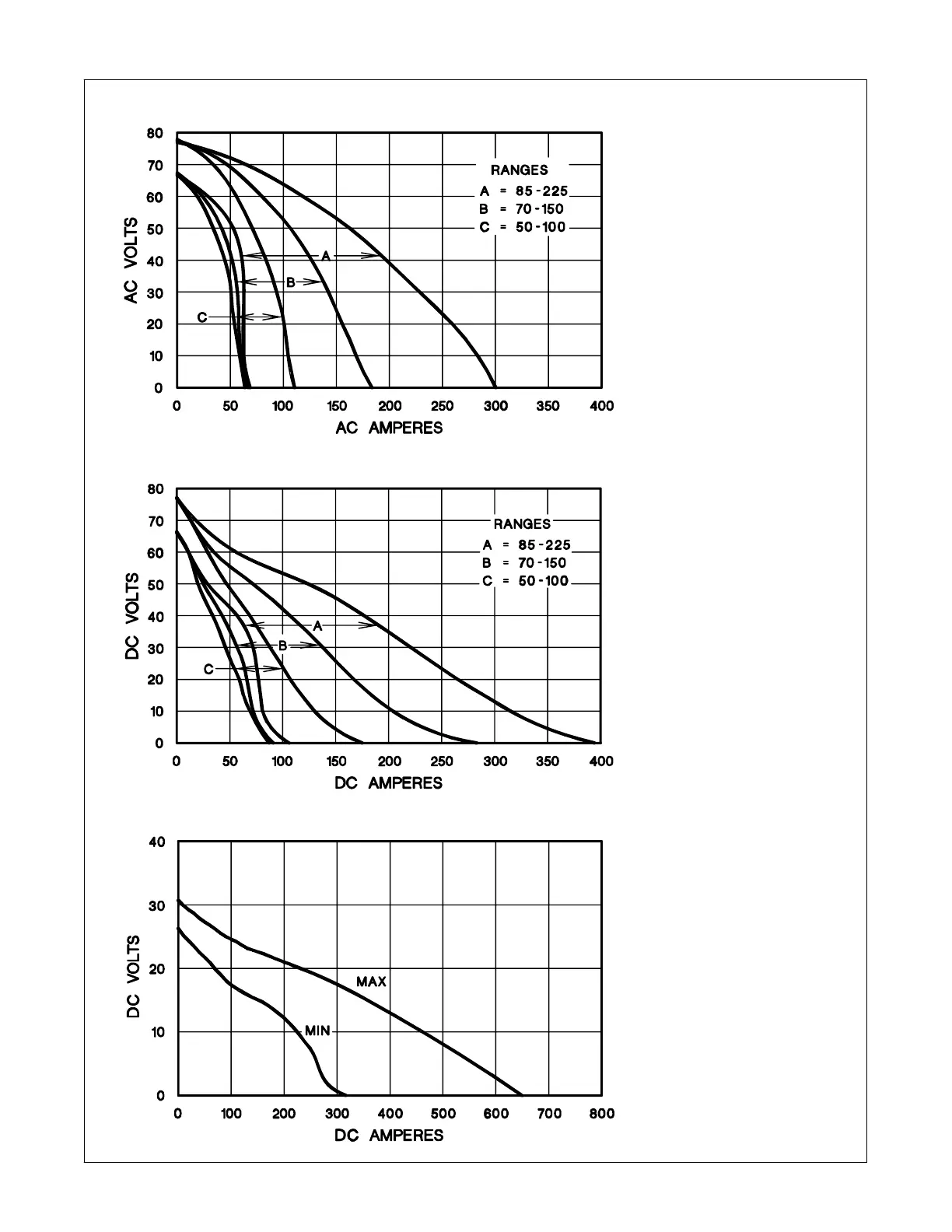

4-5. Volt-Ampere Curves
166 024-A / 166 025-A / 166 026-A
The volt-ampere curve shows the
minimum and maximum voltage
and amperage output capabilities of
the welding generator. Curves of all
other settings fall between the
curves shown.
A. For CC/AC Mode
B. For CC/DC Mode
C. For CV/DC Mode
