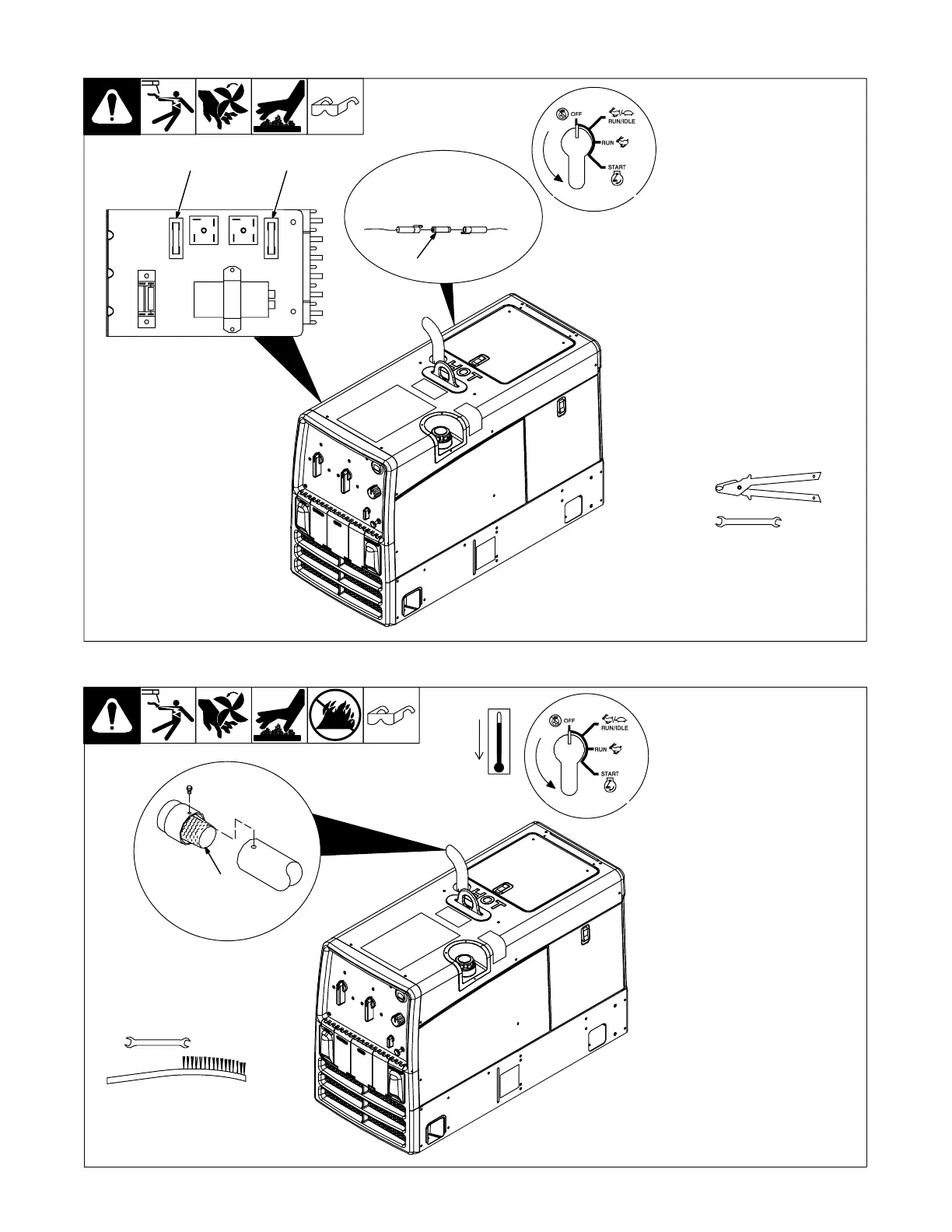

8-6. Overload Protection
804 802-A
Stop engine. Disconnect
negative (−) battery cable.
1 Fuse F1 (See Section 10-1)
F1 protects the weld excitation
winding from overload. If F1 opens,
weld output stops or is low.
2 Fuse F2 (See Section 10-1)
F2 protects the generator power
excitation winding from overload. If
F2 opens, generator power output
stops or is low.
3 Fuse F6 (See Section 10-1)
F6 protects the engine wiring sys-
tem from overload. If F6 opens,
engine will not crank.
Replace any open fuses. Reinstall
cover before operating.
If a fuse opens, it usually indi-
cates a more serious problem
exists. Contact a Factory Au-
thorized Service Agent.
3/8 in
3
Tools Needed:
21
Fuses F1, F2 located on
bracket behind left side
panel.
Fuse F6 located in
engine harness on
left side.
8-7. Servicing Optional Spark Arrestor
804 802-A / Ref. 801 682-A
Stop engine and let cool.
1 Spark Arrestor Screen
Clean and inspect screen. Replace
spark arrestor if screen wires are
broken or missing.
1/4 in
1
