6-2. Battery Installation
1
2
1
Ref. 805625-A / Ref. 805626-A
3

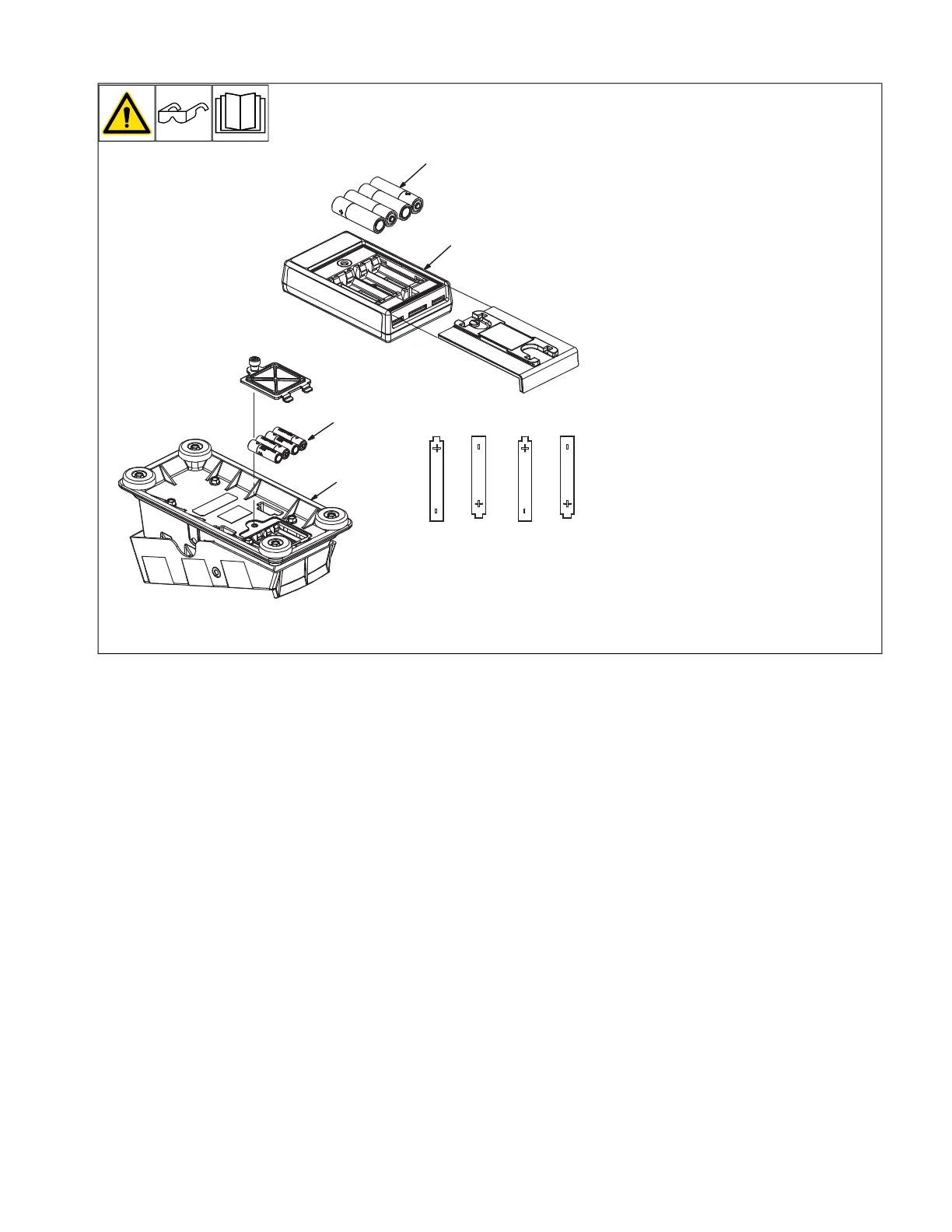

Battery Orientation
1 AA Batteries
Install four AA Batteries in shown orientation.
2 Wireless Hand Control
Remove the accessory strap/magnet.
Lift the bail on the on the 1/4 turn captive
panel fastener.
Rotate the bail of the 1/4 turn fastener
counterclockwise.
Simultaneously lift the fastener and slide the
battery cover down.
3 Wireless Foot Control
Rotate the captive panel fastener knob
counterclockwise.
Simultaneously lift the fastener and rotate
the door down.
