Miller CE - Parts List; Section 9 - Parts List

OM-286308 Page 28
SECTION 9 – PARTS LIST
9-1. Parts List
OM-286308 Page 24
SECTION 7 PARTS LIST
Ref. 805625-A
2
1
4
3

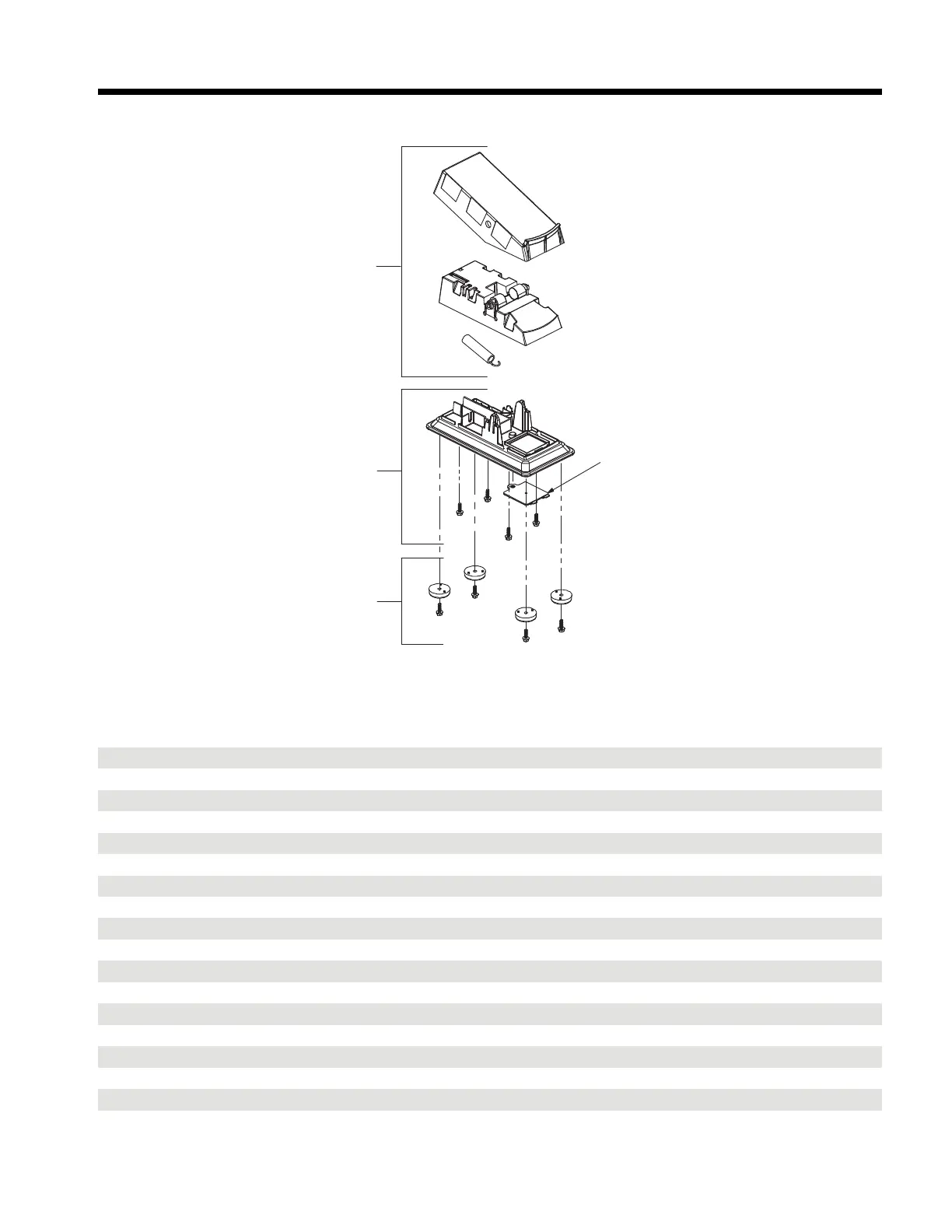

Figure 7-1. Wireless Foot Control
Description
Part
No.
Dia.
Mkgs.
285008
Item
No.
Wireless Foot Control
Quantity
1 288128 Kit, Wireless Pedal Repair (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedal, Foot 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Housing, Foot Control 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spring, Ext .750 Od x .092 Wire x 3.250 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printed Wiring BD, Foot Control (Not Shown) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bracket Assy, Circuit Card Mtg (Not Shown) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Retainer (Not Shown) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper Spring Assy (Not Shown) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screw, .008-32 x .25 Pan-Hd Phl Stl Pld (Not Shown) 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screw, KA35 x 8 Pan Hd-Stl Pld Pt Thread Forming (Not Shown) 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 288129 Kit, Base Repair (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Base, Foot Control 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screw, 250 x .750 Hexwhd Pld Hi-Low 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 288049 Cover, Battery Access 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 288130 Kit, Replacement Feet (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot, Uhmwpe 1.688 Dia x .438 High w/.265 Dia Mtg 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screw, 250 x .750 Hexwhd Pld Hi-Low 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
Figure 9-1. Wireless Foot Control
Wireless Foot Control (P/N 285008)
Item No. Part No. Description Quantity
1 288128 Kit, Wireless Pedal Repair (Includes) 1
Pedal, Foot 1
Housing, Foot Control 1
Spring, Ext .750 Od x .092 Wire x 3.250 1
Printed Wiring BD, Foot Control (Not Shown) 1
Bracket Assy, Circuit Card Mtg (Not Shown) 1
Retainer (Not Shown) 1
Wiper Spring Assy (Not Shown) 1
Screw, .008-32 x .25 Pan-Hd Phl Stl Pld (Not Shown) 5
Screw, KA35 x 8 Pan Hd-Stl Pld Pt Thread Forming (Not Shown) 4
2 288129 Kit, Base Repair (Includes) 1
Base, Foot Control 1
Screw, 250 x .750 Hexwhd Pld Hi-Low 4
3 288049 Cover, Battery Access 1
4 288130 Kit, Replacement Feet (Includes) 1
Foot, Uhmwpe 1.688 Dia x .438 High w/.265 Dia Mtg 4
Screw, 250 x .750 Hexwhd Pld Hi-Low 4
