Miller CE - Page 35

OM-286308 Page 29
1
3
Ref. 805626-A
2

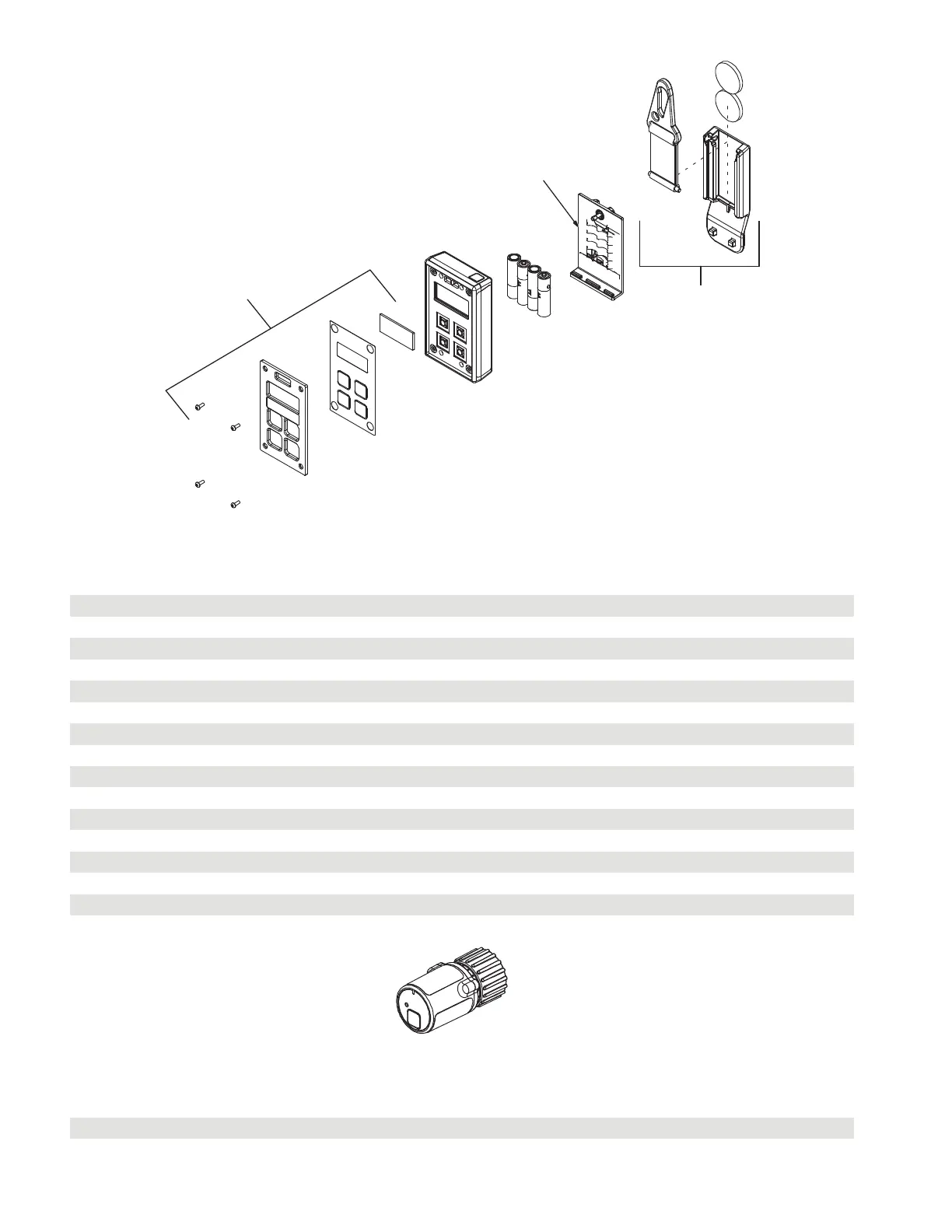

Figure 9-2. Wireless Hand Control
Wireless Hand Control (P/N 285358)
Item No. Part No. Description Quantity
1 285341 Strap, Clip Assy (Includes) 1
Clip, Belt 1
Pad, Silicone 1.000 x 1.000 x .062 Thk 1
Magnet, 1.00 Dia x .125 Thk 2
Pin, Retaining .125 Od x 1.250 Lg 1
Strap, Snap Hook Assy 1
Clip, Belt Retainer 1
2 285350 Cover, Battery w/Fastener (Includes) 1
Fastener, Quarter Turn 1
Retainer, Push-On Stainless 1
3 288131 Kit, User Interface (Includes) 1
Screen, LCD Display 1
Label, Nameplate Wireless Hand Control 1
Plate, Front 1
Screw, 004-40 x .31 Pan Hd-Phl Stl Pld 4
OM-286308 Page 25
Ref. 805627-A
Figure 7-2. Wireless Receiver w/Labels
Description
Part
No.
Dia.
Mkgs.
284867
Item
No.
Wireless Receiver w/Labels
Quantity
1
3
Ref. 805626-A
2
Figure 7-3. Wireless Hand Control
Description
Part
No.
Dia.
Mkgs.
285358
Item
No.
Wireless Hand Control
Quantity
1 285341 Strap, Clip Assy (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clip, Belt 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pad, Silicone 1.000 x 1.000 x .062 Thk 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Magnet, 1.00 Dia x .125 Thk 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin, Retaining .125 Od x 1.250 Lg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strap, Snap Hook Assy 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clip, Belt Retainer 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 285350 Cover, Battery w/Fastener (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fastener, Quarter Turn 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Retainer, Push-On Stainless 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 288131 Kit, User Interface (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen, LCD Display 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Label, Nameplate Wireless Hand Control 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plate, Front 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screw, 004-40 x .31 Pan Hd-Phl Stl Pld 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
Figure 9-3. Wireless Receiver w/Labels
Wireless Receiver w/Labels
Item No. Part No. Description Quantity
1 284867 Wireless Receiver w/Labels 1
