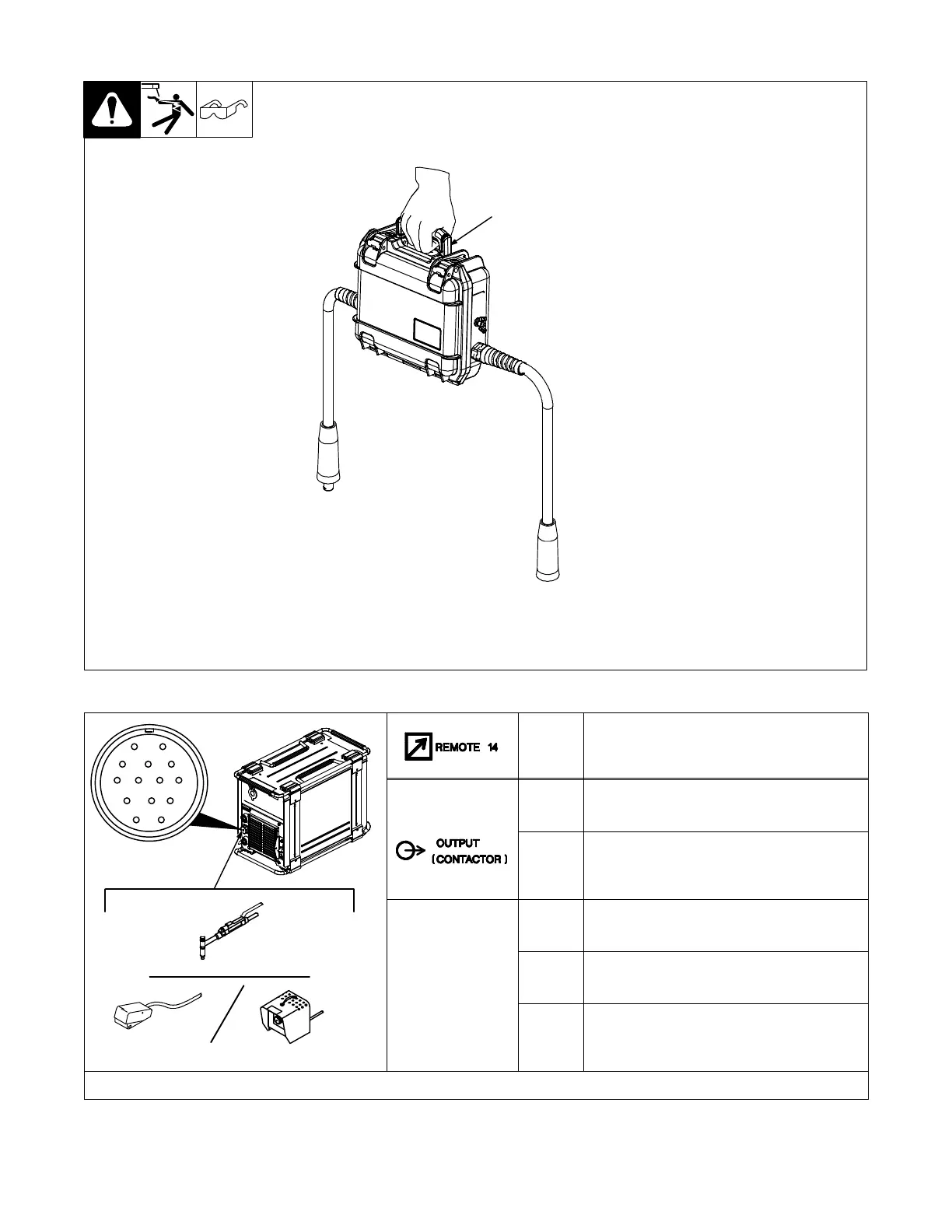

5-2. Proper Method To Carry Remote
255 409-B
1 Handle
Carry Remote only by using the
handle.
1
5-3. Remote 14 Receptacle Information
AJ
B
K
I
C
L
NH
D
M
G
E
F
Ref. 255 179-B
Socket* Socket Information
14 VOLTS DC
A 14 volts DC. Circuit limited to 35 mA.
B Contact closure to A completes contactor control
circuit.
REMOTE
OUTPUT
CONTROL
C Output to remote control; +10 volts DC.
D Remote control circuit common.
E 0 to +10 volts DC input command signal from
remote control.
*The remaining sockets are not used.
