Miller FieldPro Remote CE - Connecting Work Sense Lead to Remote; Optional Method of Combining Wok Sense Lead with Work Clamp

OM-263 657 Page 22

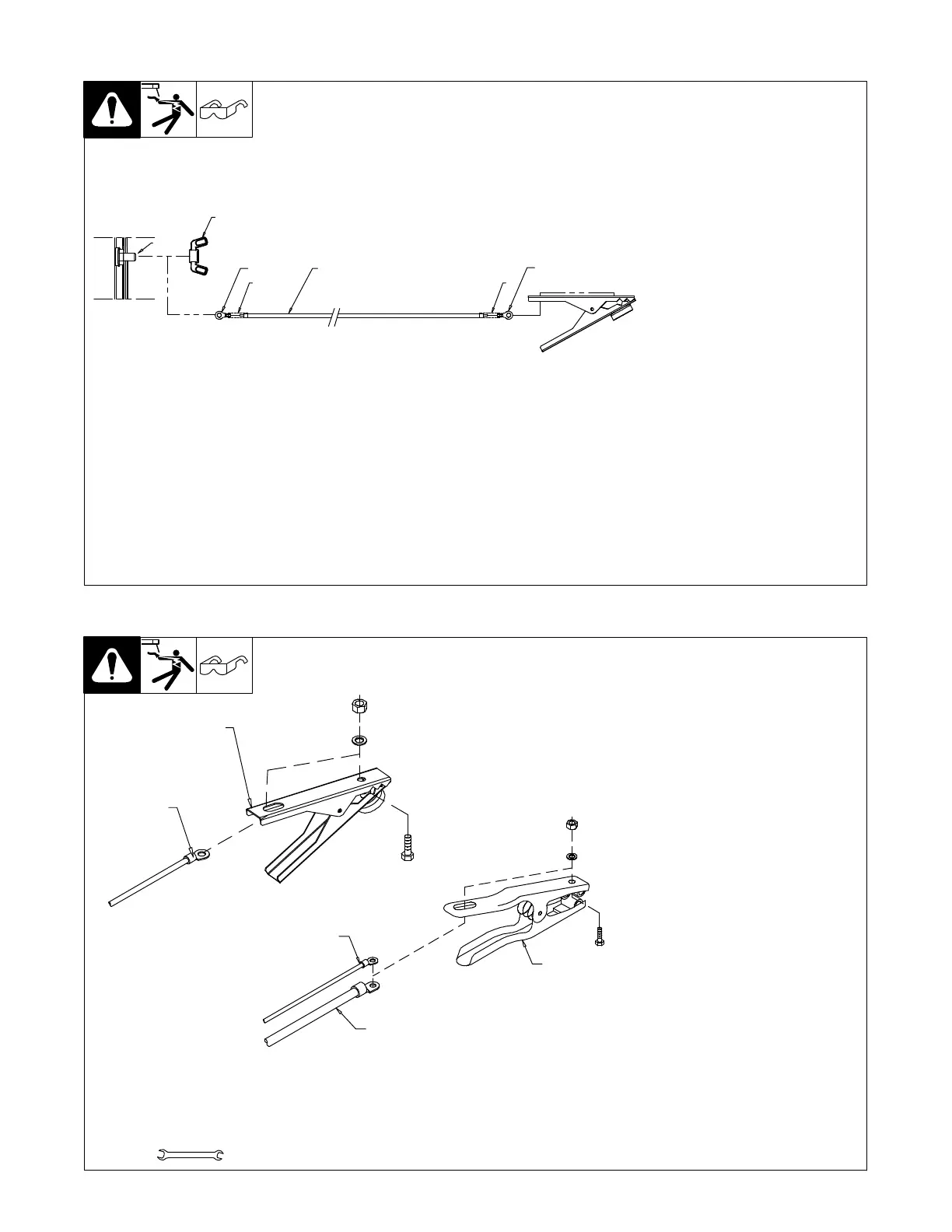

5-9. Connecting Work Sense Lead To Remote
255 450-A
. The work sense lead is re-
quired for operation of the
FieldPro Remote.
1 Lead
2 Ring Terminal 1/2 in.
If using a ring terminal, slide
terminal onto post on the remote.
3 Wing Nut
Once terminal or wire is on post,
tighten wing nut.
4 Binding Post
5 Electrical Tape Or Heat Shrink
Tubing
If ring terminal is cut or broken, the
bare wire can be looped around the
post and tightened under the wing
nut.
1
2
2
4
5
5
3
5-10. Optional Method Of Combining Wok Sense Lead With Work Clamp
255 449-A
1 Work Sense Clamp
2 Ring Terminal 1/2 in.
Disconnect ring terminal from
clamp.
3 Work Sense Lead
4 Work Cable
5 Work Clamp
. Be sure that work sense lead
ring terminal is on top of work
cable ring terminal when
connecting to clamp.
Connect work sense lead and work
cable to work clamp.
Tools Needed:
5
3
4
1
2
3/8 in.
