OM-263 657 Page 28
SECTION 6 − OPERATION

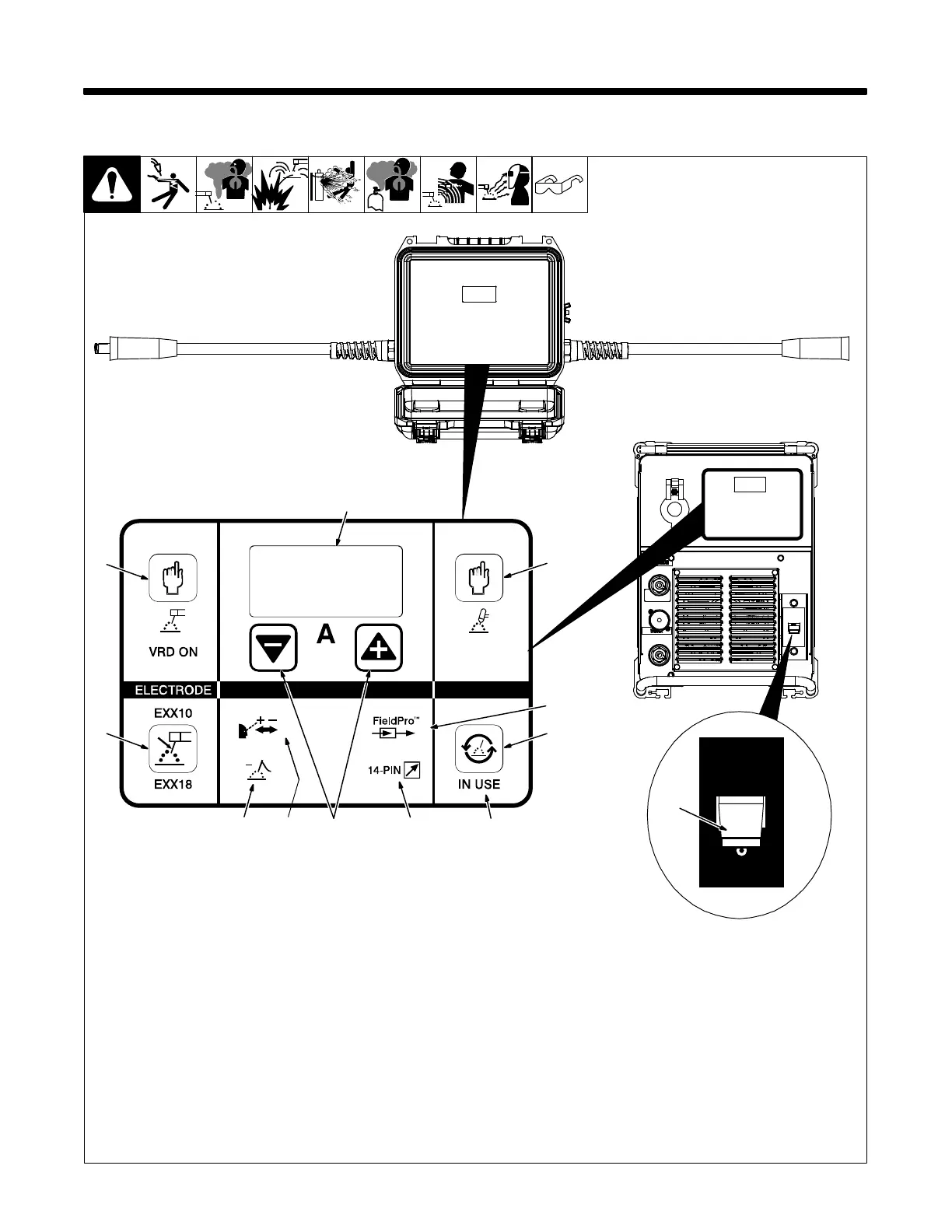

6-1. Welding Power Source And Remote Interface Controls
1 Power Switch
2 AMPS Display
3 TIG Process Select Button
4 Stick Process Select Button
5 Stick Electrode Type Select Button
6 Amperage Adjustment Buttons
7 14-Pin Remote Connected Indicator
8 FieldPro Accessory Connected
Indicator
9 IN USE Button
10 IN USE Indicator
11 Check Polarity Indicator
12 Stick Negative Indicator
255 429-B / 264 180-B / Ref. 255 179-B / 253 664-A
I
OFF
ON
1
2
3
4
5
6 7
8
9
101112
