Miller FieldPro Remote CE - Volt Sense Lead and Work Cable Connections for Multiple Welding Arcs

OM-263 657 Page 26

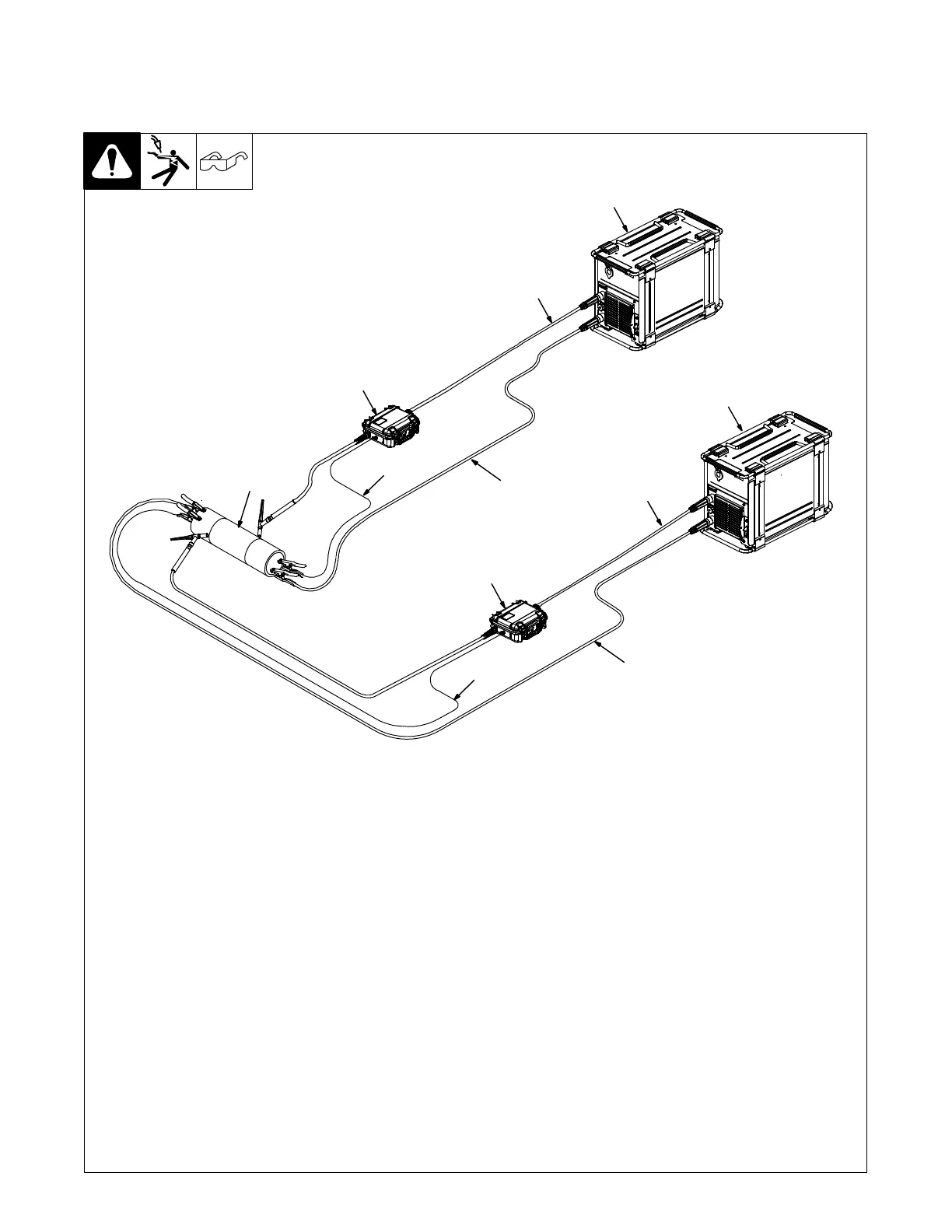

5-15. Volt Sense Lead And Work Cable Connections For Multiple Welding Arcs
A. Ideal Setup
255 378-B
1 Welding Power Source
2 Weld Cable
3 Work Cable
4 Work Sense Lead
The work sense lead is required for
operation of the FieldPro Remote.
5 Remote
6 Workpiece
This arrangement is an ideal setup for
multiple welding arcs.
6
1
1
2
2
3
3
4
4
5
5
