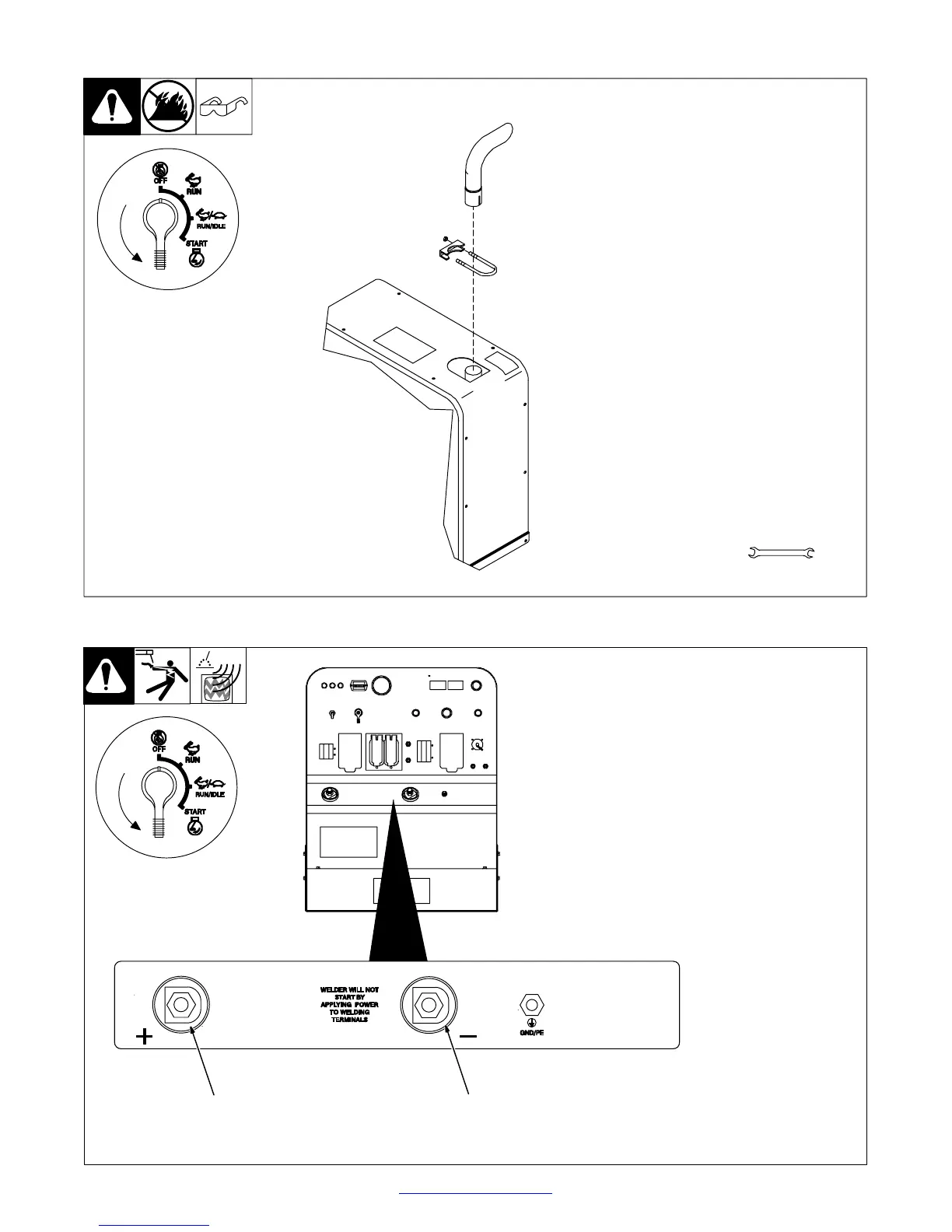

5-5. Installing Exhaust Pipe
802 173-B / Ref. 213 263-B
Point exhaust pipe in desired
direction but always away from
front panel and direction of
travel.
Tools Needed:
1/2 in
5-6. Connecting To Weld Output Terminals
1 Positive (+) Weld Output
Terminal
2 Negative (−) Weld Output
Terminal
For MIG welding, connect work
cable to Negative (−) terminal
and wire feeder cable to Positive
(+) terminal.
For Stick/TIG welding Direct Cur-
rent Electrode Positive (DCEP),
connect work cable to Negative
(−) terminal and electrode holder
cable to Positive (+) terminal.
For Direct Current Electrode
Negative (DCEN), reverse cable
connections.
801 941 / Ref. 213 263-B / 802 174-E
