Miller Syncrowave 350 LX - SECTION 5 - OPERATION; Control Panel Overview

OM-356 Page 21
SECTION 5 − OPERATION

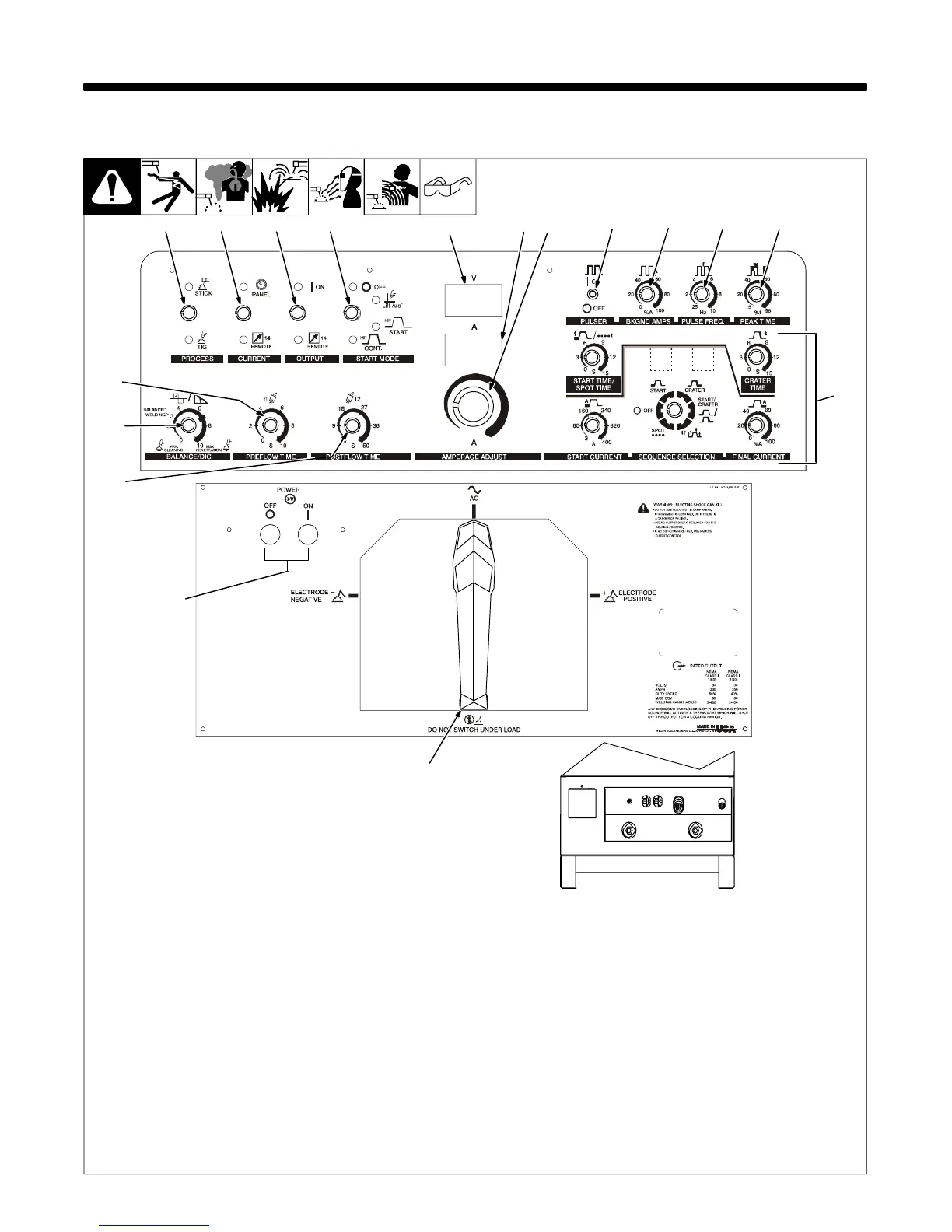

5-1. Controls
A. For 200/230/460 Volts And Non CE Units
Ref. ST-183 200-A / Ref. ST-183 260-A / Ref. ST-801 972-C
. Top row of lights in upper left corner are
On for SMAW. Bottom row are On for
GTAW.
1 Process Control
See Section 5-3.
2 Current Control
See Section 5-4.
3 Output Control
See Section 5-5.
4 Start Mode Button
See Section 5-6.
5 Voltmeter
See Section 5-7
6 Ammeter
See Section 5-7
7 Amperage Adjustment
Control
See Section 5-8.
8 Output Selector Switch
See Section 5-2.
9 Power Switch Push Buttons
Use buttons to turn unit Off and On.
10 Postflow Time Control
See Section 5-11.
11 Preflow Time Control
See Section 5-10.
12 Balance/DIG Control
See Section 5-9.
Pulse Controls:
13 Pulser On/Off Switch
See Section 5-12.
14 Background Amperage Control
See Section 5-12.
15 Pulses Frequency Control
See Section 5-12.
16 Peak Time Control
See Section 5-12.
17 Sequence Controls (Optional)
See Section 5-13.
8
1234
5
6
7
13
14
15
16
10
11
12
17
9
