Installation
10

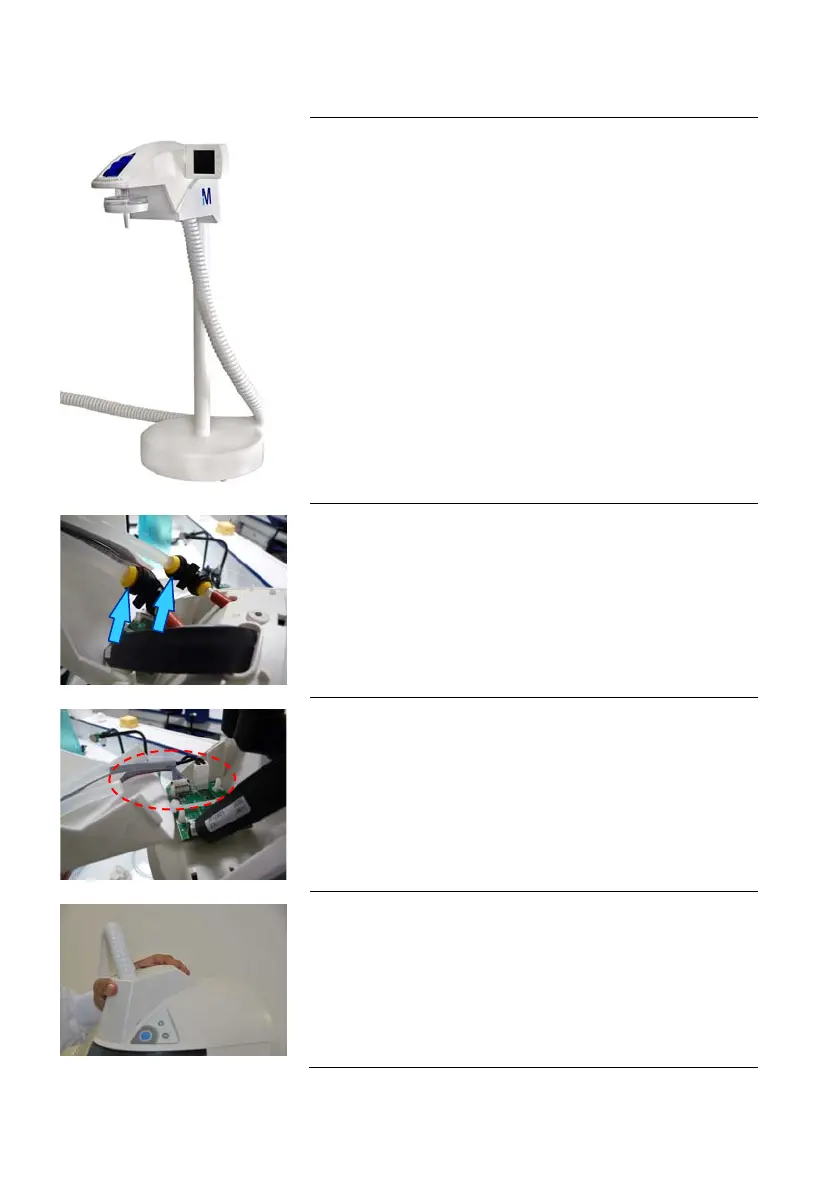

Connection of the Ultrapure (Type 1) water Dispenser
1
• Locate the Ultrapure (Type 1) water dispenser.
The Ultrapure (Type 1) water dispenser and the water system come
separately.
2
• For system installed underbench pass the sleeve through the bench
hole.
• Cut the tie wrap attaching the tubing and cables
• Connect the tubing from the remote dispenser to the water system:
black tubing on black tubing, and transparent tubing on transparent
one.
3
• Connect the 2 electrical connectors (Molex + Picoflex) to the PC
Board.
4
• Make sure the system operates correctly before clipping the hide
panel cover. (It will not be possible to unclip it once clipped).
