Installation
Connection of Tubing
A

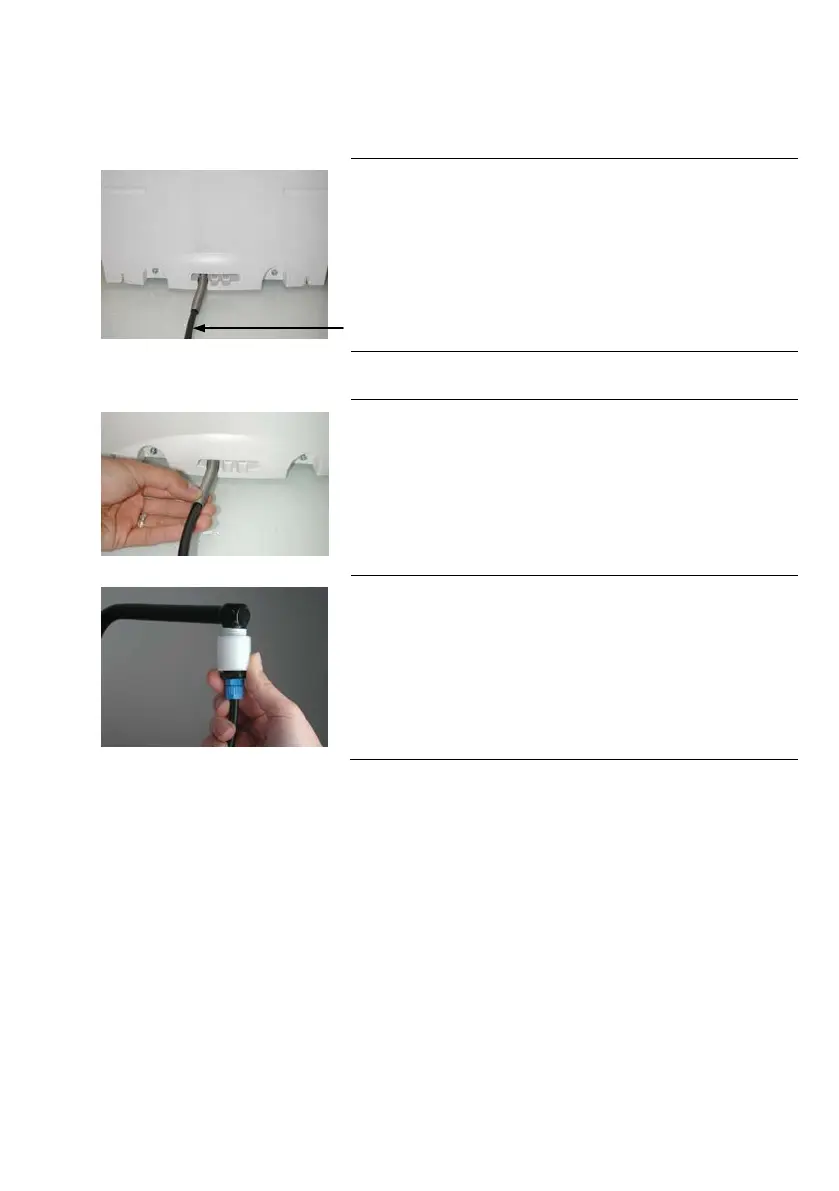

• Rotate the Synergy R system so you can see the back of the system
(see photo A).
Feedwater tubing
Feedwater Tubing
B
• Locate the Feedwater Tubing exiting from the bottom of the
system (B).
A 1/2 inch Female GAZ fitting with a screen filter is attached at the
end of this tubing.
Unroll it until the fitting reaches the Feedwater source.
• Apply white tape on the thread of the 1/2 inch Male GAZ valve or
fitting of the Feedwater source.
C
• Connect the fitting to the valve (C).
To Next Page
