19Installation, Operations & Maintenance Manual

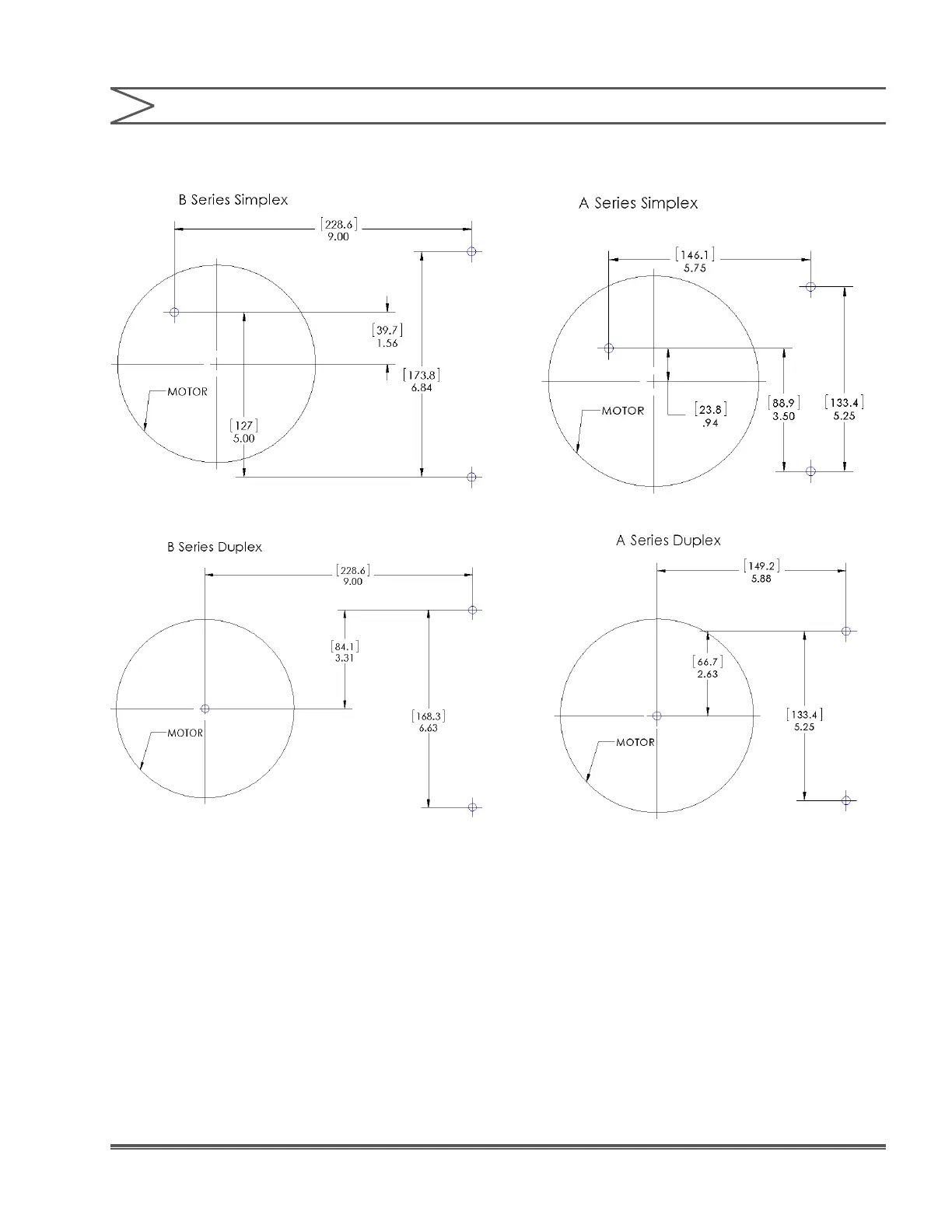

Figure 14. Mounting Bolt Holes
• B Series Hole Size = Dia 0.41” (10.4 mm) • A Series Hole Size = Dia 0.38” (9.6 mm)
