40 Installation, Operations & Maintenance Manual

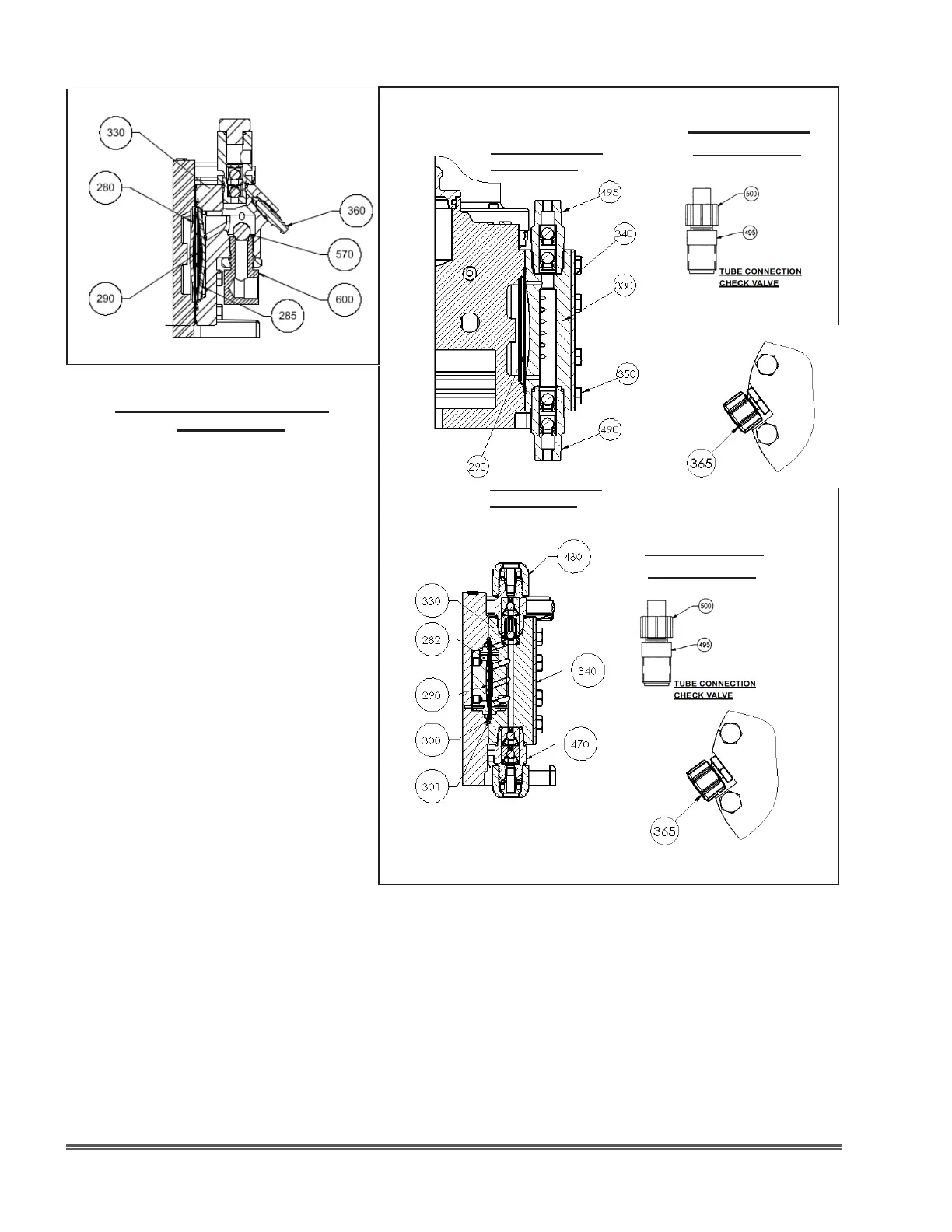

Figure 19. mRoy A High Viscosity & Plastic Liquid Ends
(DWG 999-2009-0001 & 999-2009-0002)
mRoy HIGH VISCOSITY
LIQUID END
C,D PLASTIC
LIQUID END
NPT CONNECTION
CHECK VALVE
NPT CONNECTION
CHECK VALVE
E,F PLASTIC
LIQUID END
