44Installation, Operations & Maintenance Manual
DOUBLE DIAPHRAGM LIQUID END
• Drawings Applicable to mRoy A - E,F Liquid
Ends

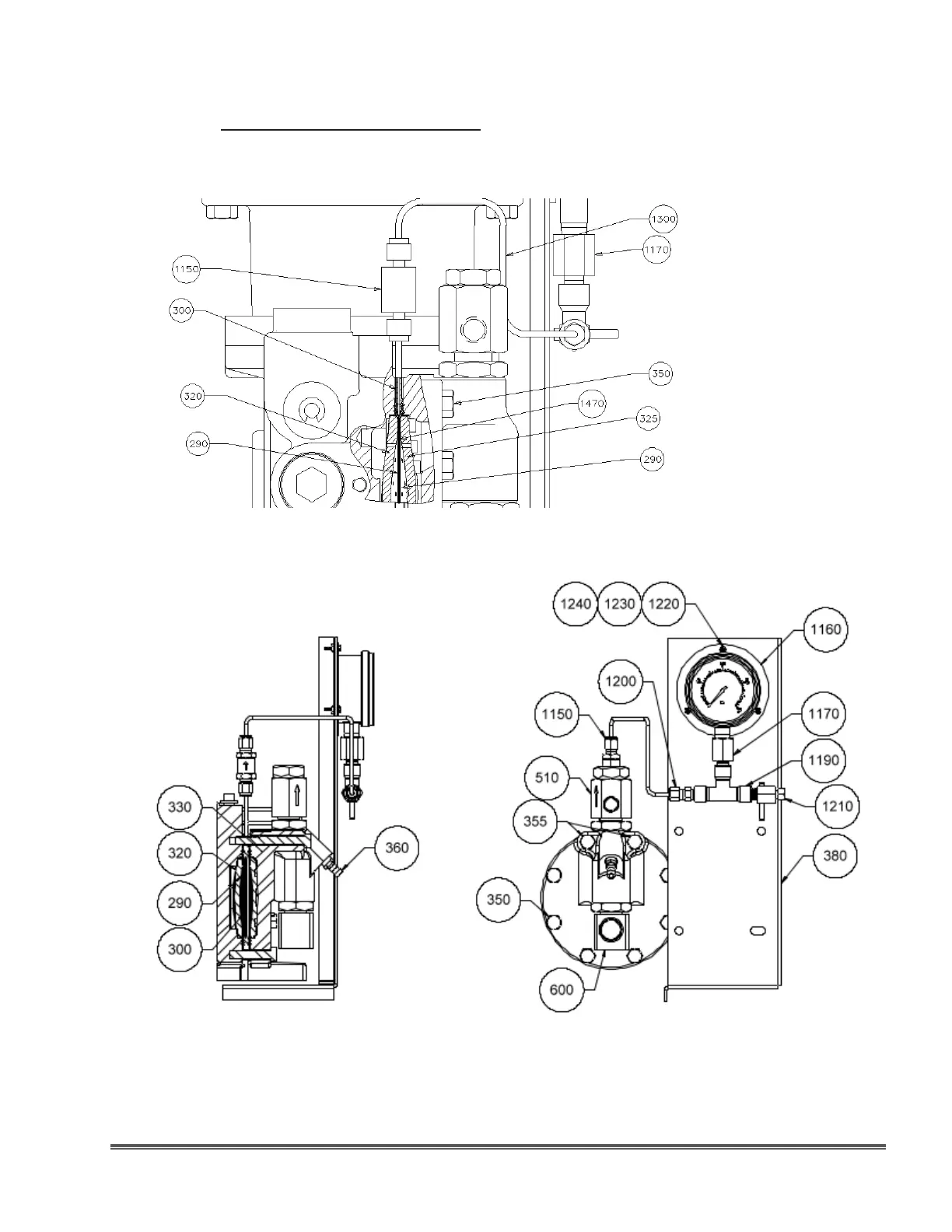

Figure 22. mRoy A Double Diaphragm and Leak Detection
(DWG(s) 999-2009-0005
