Maintenance Manual > Adjustment Items > Adjustment Function > CAPPING
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1

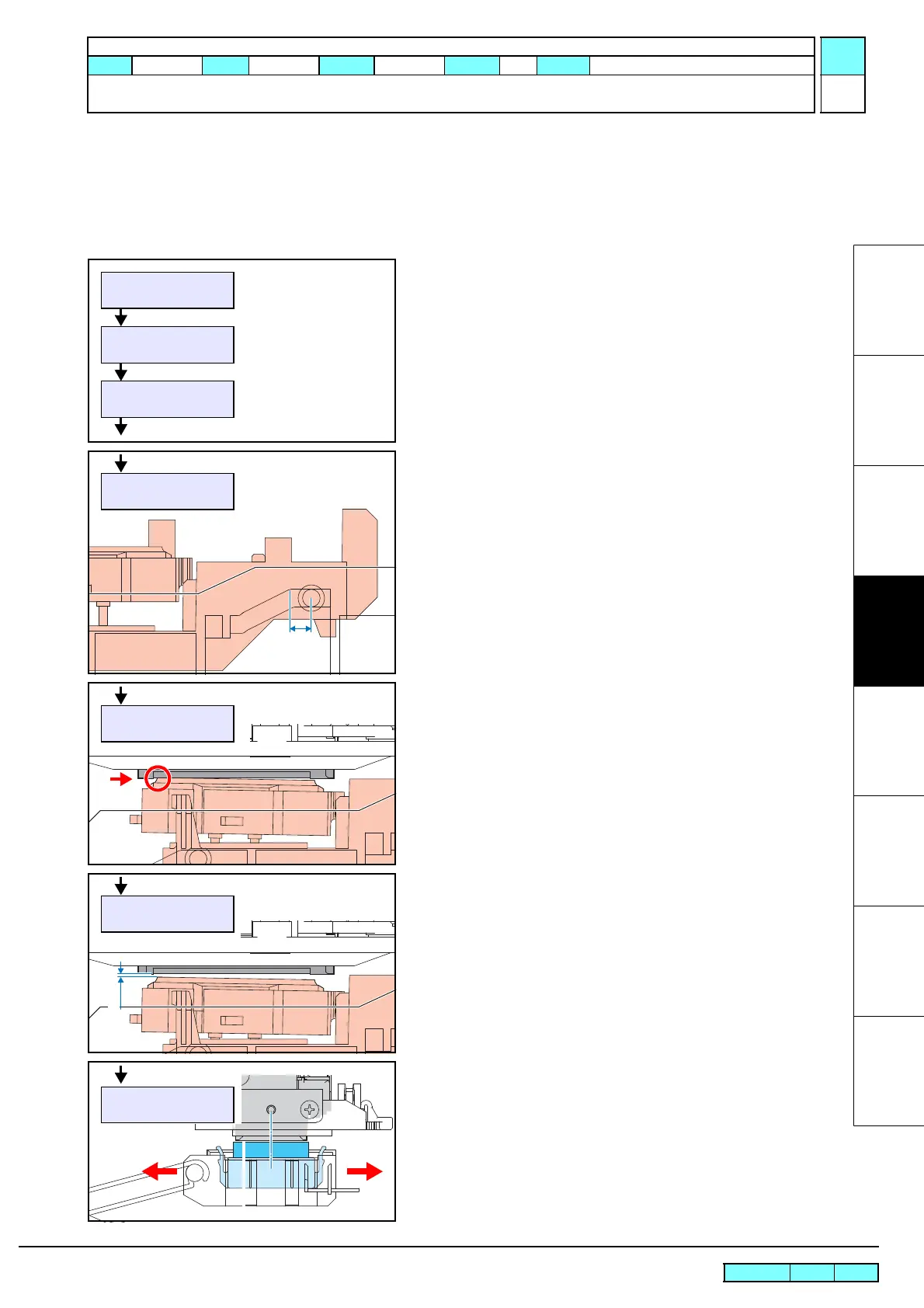

4.2.5 CAPPING
Outline
Adjusts the location for capping and wiper. Adjusted value is saved in the system parameter.
Basically, it is not necessary to make adjustment even when cap (and the like) has been replaced.
Adjustment procedure
1. Select [CAPPING] from the operation menu.
2. Make adjustment so that the cap slider is located at 3 mm to the
right from the uppermost point it has reached on the cap base.
[]/[]: Horizontally shifts the cap.
[ENTER]: Finalizes (To Next)
3. Make adjustment so that the head is located exactly at the point
where the head is in contact with rubber portion (left end) of the
cap head.
[]/[]: Shifts the cap.
[ENTER]: Finalizes (To Next)
4. Make adjustment so that the clearance between the head and left
end of the cap is set at 1 mm.
[]/[]: Shifts the cap.
[ENTER]: Finalizes (To Next)
5. Make adjustment so that each center of the wiper and the head
coincides.
[]/[]: Horizontally shifts the wiper.
[ENTER]: Finalizes
[END]: Completes
<LOCAL.*> [#01]
FUNCTION
#ADJUST <ent>
#ADJUST / PRINT
CAPPING <ent>
#CAPPING
CAPPING POS= 0.0mm
3mm
#CAPPING
AirPullPOS.= 0.0mm
1mm
#CAPPING
FlushingPOS= 0.0mm
#CAPPING
WiperPOS(X)= 0.0mm
