Maintenance Manual > Operation Flow > Common Setting > COMMON SETUP
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

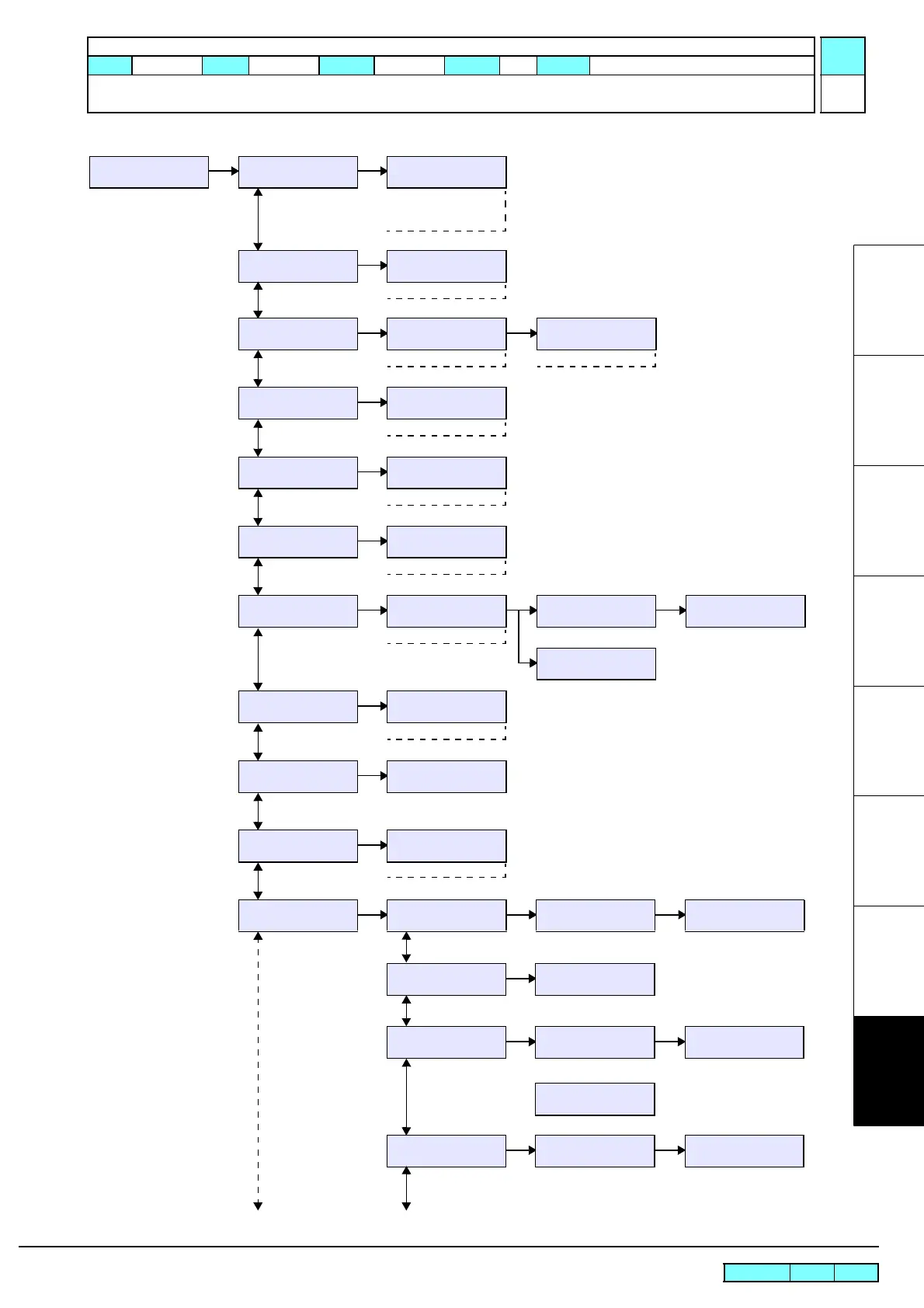

8.4.1 COMMON SETUP
FUNCTION
COMMON SETUP <ENT>
PR SETUP
SELECT :ON
COMMON SETUP
PR SETUP <ent>
:POW ON ONLY
:PR No.ONLY
:OFF
[FUNCTION],
[] / []
CUT METHOD
SETUP :2 STEP
COMMON SETUP
CUT METHOD <ent>
:3 STEP
[FUNCTION],
[] / []
CONFIRM. FEED
FEED :100mm
COMMON SETUP
CONFIRM. FEED <ent>
OFF/ 10 to 500
CONFIRM. FEED
BACK FEED :ON
:OFF
EXPANDS
SETUP :OFF
COMMON SETUP
EXPANDS <ent>
:ON
[FUNCTION],
[] / []
RECEIVED DATA
SETUP :AUTO
COMMON SETUP
RECEIVED DATA <ent>
:MANUAL
[FUNCTION],
[] / []
TIME SET
2007.10.05 21:36:00
COMMON SETUP
TIME SET <ent>
:ON
[FUNCTION],
[] / []
TIME SET
2007.10.05 21:36:00
TIME SET
DoYou change it?:ent
-> 2008.10.04 21:36
2007.10.05 21:36:00
[FUNCTION]
TEMP. : LENGTH
° C : mm
COMMON SETUP
UNIT SETUP <ent>
° F : inch
[FUNCTION],
[] / []
MACHINE NAME
CJV30-01
COMMON SETUP
MACHINE NAME <ent>
[FUNCTION],
[] / []
KEY BUZZER
SETUP :ON
COMMON SETUP
KEY BUZZER <ent>
:OFF
[FUNCTION],
[] / []
INFORMATION
ERROR HISTORY <ent>
COMMON SETUP
INFORMATION <ent>
[FUNCTION],
[] / []
ERROR HISTORY
[01] 05.09.29 08:18
 ERROR 09 
HDC ERROR (----)
[01] 05.09.29 08:18
>> CARRIAGE OUT
INFORMATION
MAINTE. HISTORY<ent>
[FUNCTION], [] / []
[] / []: Changes screens.
[] / []: Changes error display.
[END]: Complete


[01] 720x1080 .12
Bd.Vd.x1.1L: 12.34m
INFORMATION
PRINTmodeHIST. <ent>

PRINTmodeHIST.
[01] 05.09.29 08:18
LIST
SELECT:PRINT MODE
INFORMATION
LIST <ent>
LIST
 PRINTING 
 There is no 

HISTORY. 
When there is no history
[FUNCTION], [] / []
[FUNCTION], [] / []
[FUNCTION], [] / []
[FUNCTION],
[] / []
Displayed only when [FEED : ON]
LEFT : RIGHT
0mm : 0mm
COMMON SETUP
MARGIN <ent>
0 to 85mm
[FUNCTION],
[] / []
