Maintenance Manual > Electrical Parts > Circuit Board Specifications > Power Supply PCB Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

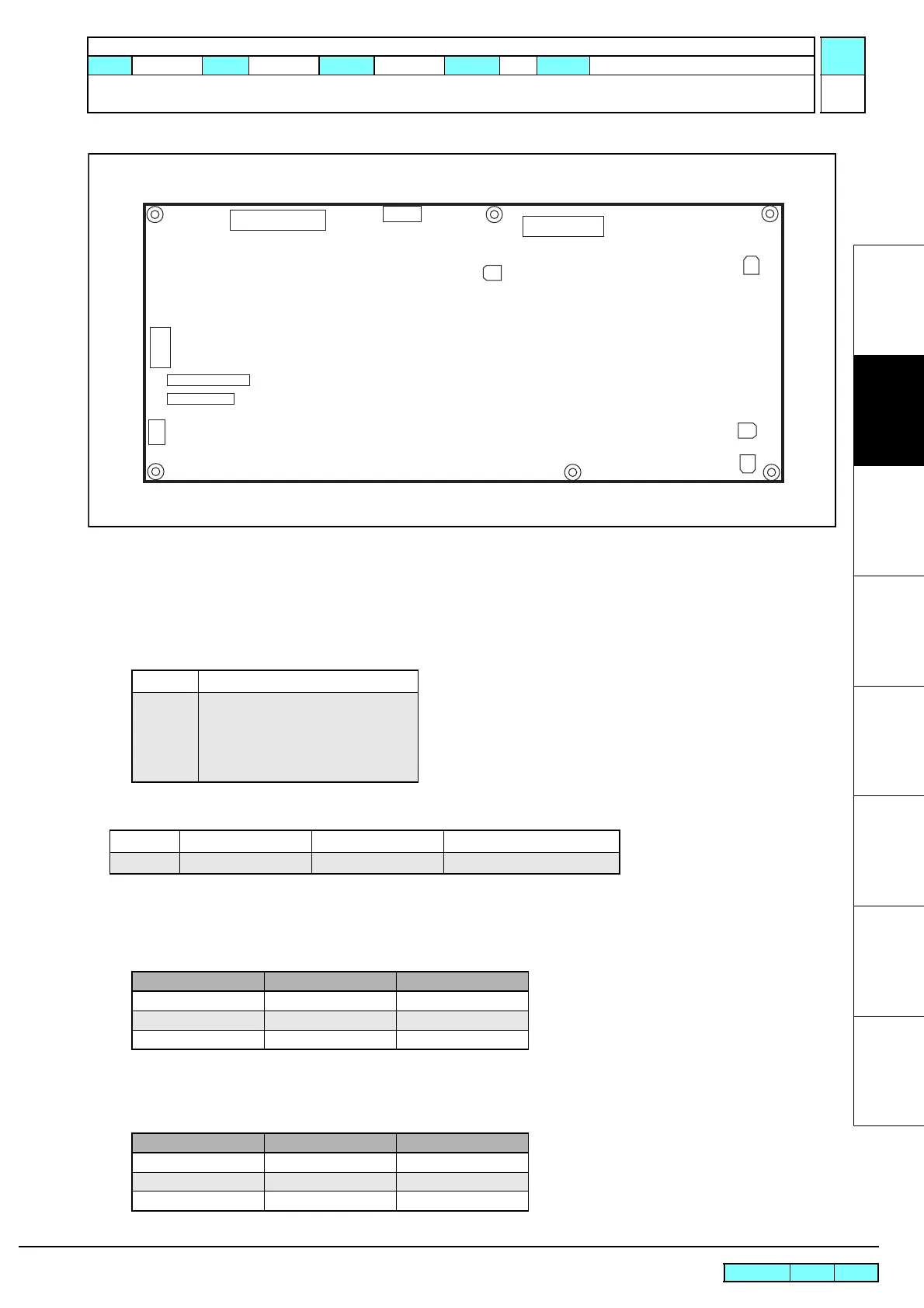

2.3.1 Power Supply PCB Assy
 Outline
Board name: Power Supply PCB Assy
This PCB provides all the electrical power for controlling and driving functions.
 Input and output of the power source
 Fuse rating
 Connector specification
 CN1 AC input connector
Model number (JST): B2P3-VH (LF) (SN)
 CN2 AC HEAT input connector
Model number (JST): B03P-VL *Media heater power input
Input AC100-120V, AC220-240, 50/60Hz
Output +3.3SBV, 5.5A
+5SBV, 1.0A
+5V, 4.2A
+24V, 5.0A
+42V, 4.0A
F1 T6.3AH/ 250V 5x20 mm Input line to DC output circuit
F3 T15AH/ 250V 6.3x30 mm Input line to heater
Pin Terminal name Type
1 AC-L AC input supply
2 (NC) (NC)
3 AC-N AC input supply
Pin Terminal name Type
1 AC-L AC input supply
2 (NC) (NC)
3 AC-N AC input supply
CN1
CN2
F3
CN3
CN4
CN5
VR2
VR4
VR3
VR1
F1
