© 2009 MIMAKI ENGINEERING CO.,LTD.
3.4.1 P.1
1
2
3
4
5
6
7
8
R.1.1
Maintenance Manual > Workflow > Electrical Parts > Replacement of the Main PCB Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

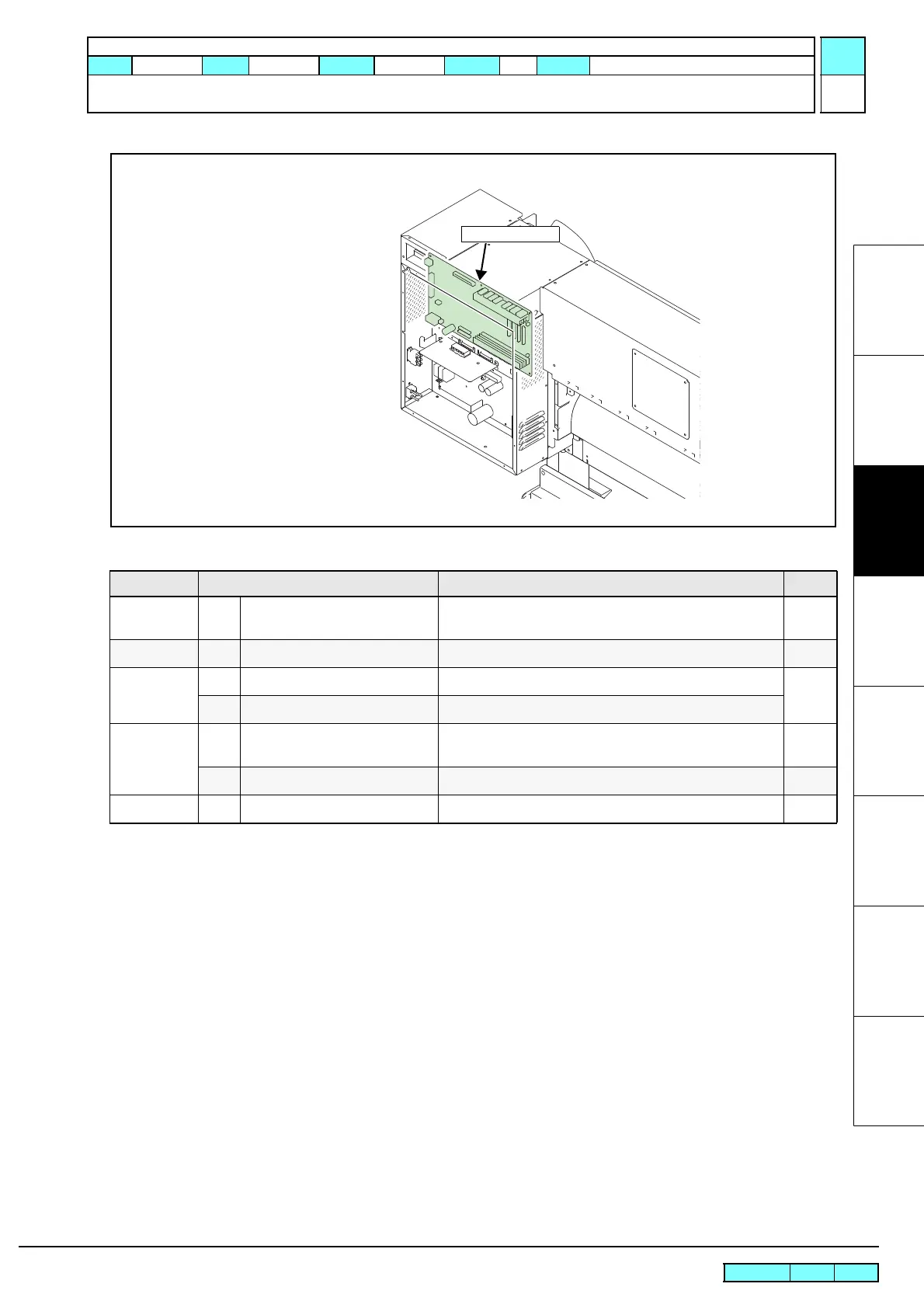

3.4.1 Replacement of the Main PCB Assy
List of replacement procedures
Item Work operation Description Ref.
Advance
preparation
1.
Parameter upload Before the printed-circuit board is replaced, upload its
parameter to the PC.
Covers
2.
Removal of covers, etc. Remove the electrical box cover. 6.1.1
Main PCB
Assy
3.
Removal of the main PCB assy. Remove the main PCB assy. 6.4.7
4.
Mounting of the main PCB assy. Mount the main PCB assy.
Check
5.
Parameter download Download the parameter which has been uploaded in the
operation “1”.
6.
Adjustment of the motor current Adjust motor current in case a hunting noise occurs. 4.2.14
Covers
7.
Mounting of the cover. Mount the cover that have been removed. 6.1.1
Main PCB Assy
