6.4.2 P.1

R.1.0

Maintenance Manual > Disassembly and Reassembly > Drive System > Y-axis Motor

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.

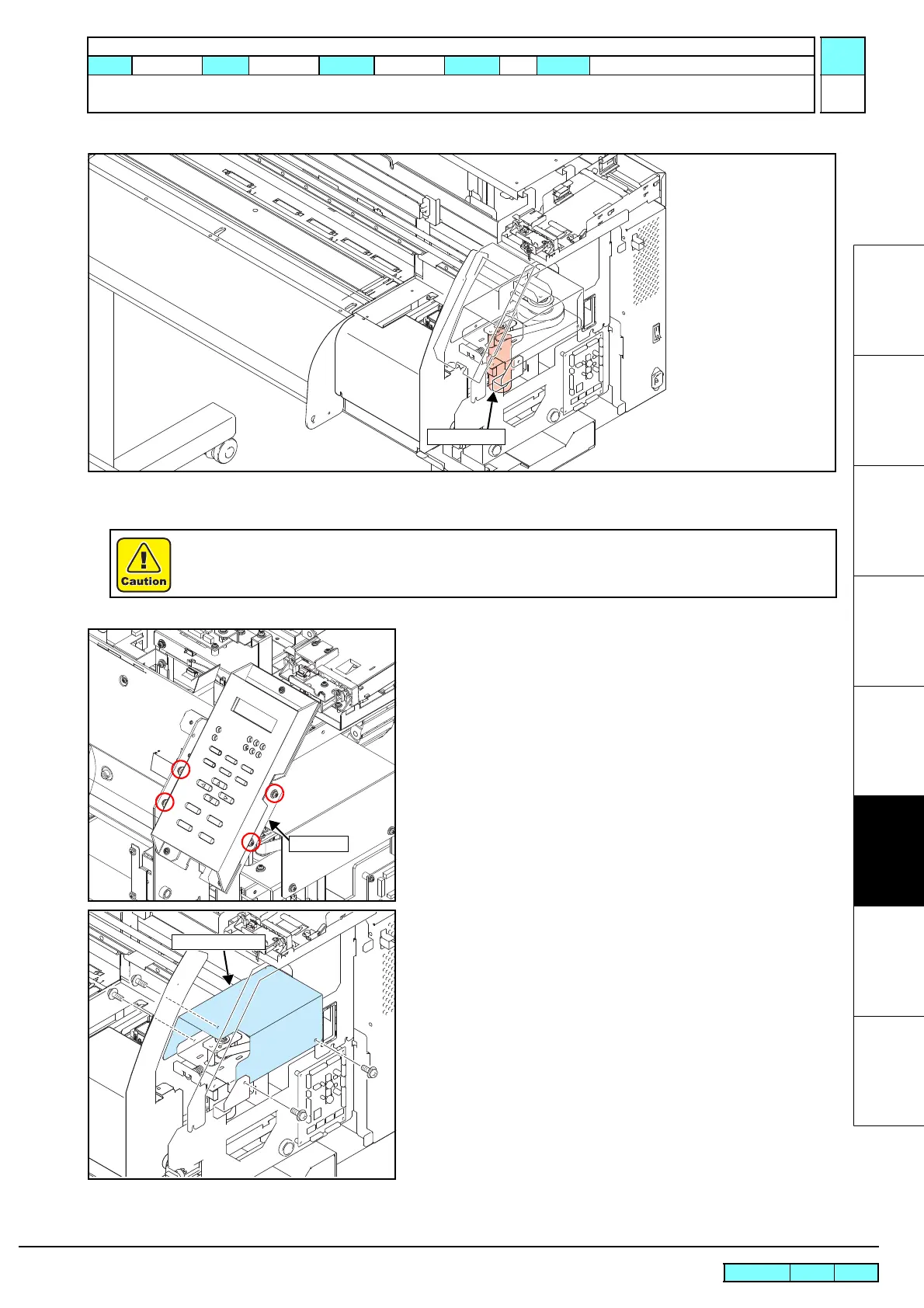

6.4.2 Y-axis Motor

 Work procedures

1. Remove the following covers.

• C Y Cover F

• KB Cover

• Right Cover

2. Remove the KB BKT screws, disconnect the connector and

then remove the keyboard assy.

3. Manually move the print head carriage on the platen and

remove the D-BKT cover.

Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.

Y-axis Motor

KB BKT

D-BKT Cover
