MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.1 P.2
6.4.1 X-axis Motor
1
2
3
4
5
6
7
8

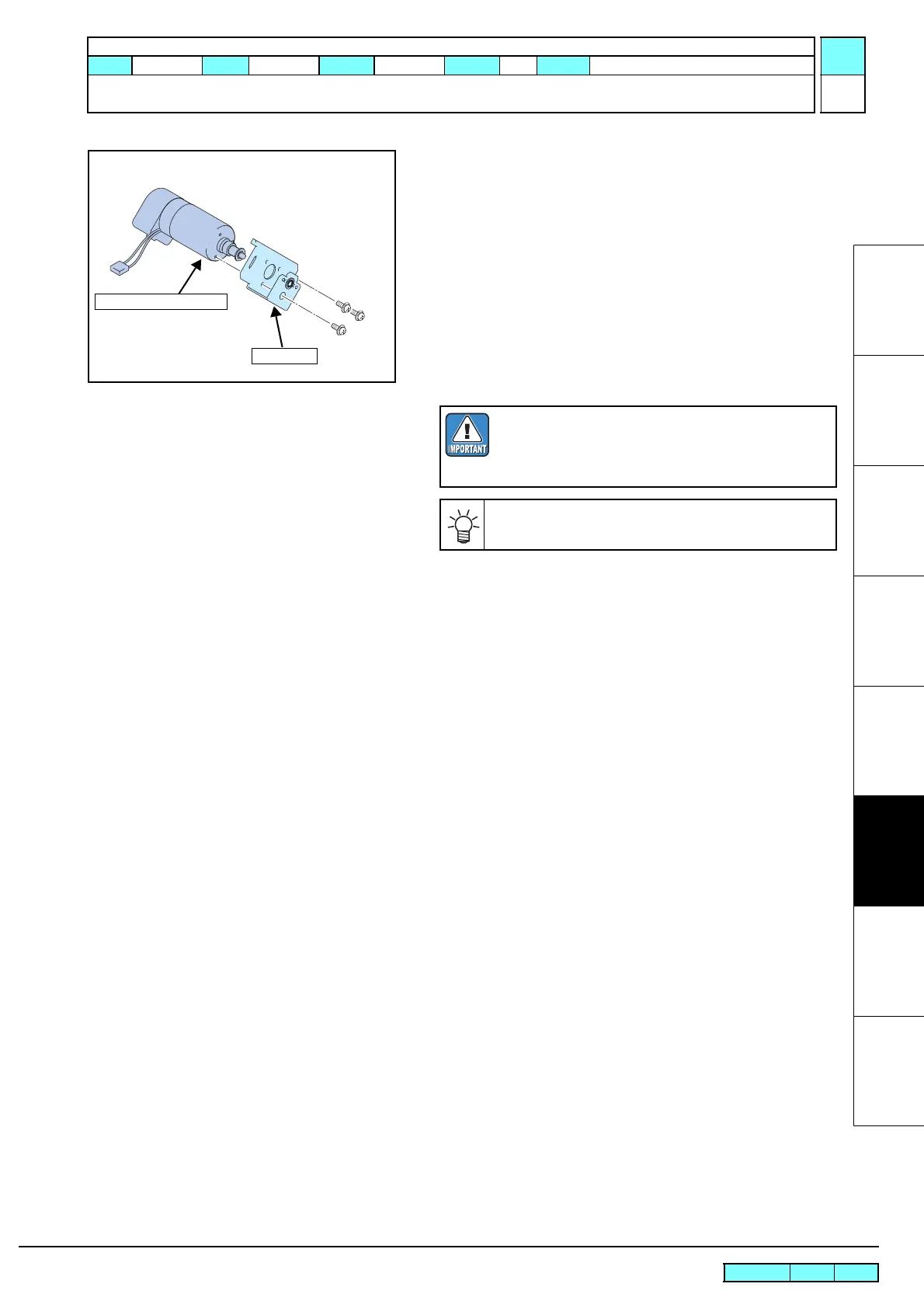

6. Remove the XM BKT screws and then the servo motor assy (X).
7. Reverse the disassembly procedure for reassembly.
Servo Motor Assy (X)
XM BKT
After mounting the motor, if the hunting sound is
heard when the motor drives, make adjustments
making reference to the following:
• Adjusting the X-axis motor current
The belt tension does not need to be adjusted.
R.1.0
Maintenance Manual > Disassembly and Reassembly > Drive System > X-axis Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
