6.4.1 P.1

R.1.0

Maintenance Manual > Disassembly and Reassembly > Drive System > X-axis Motor

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.

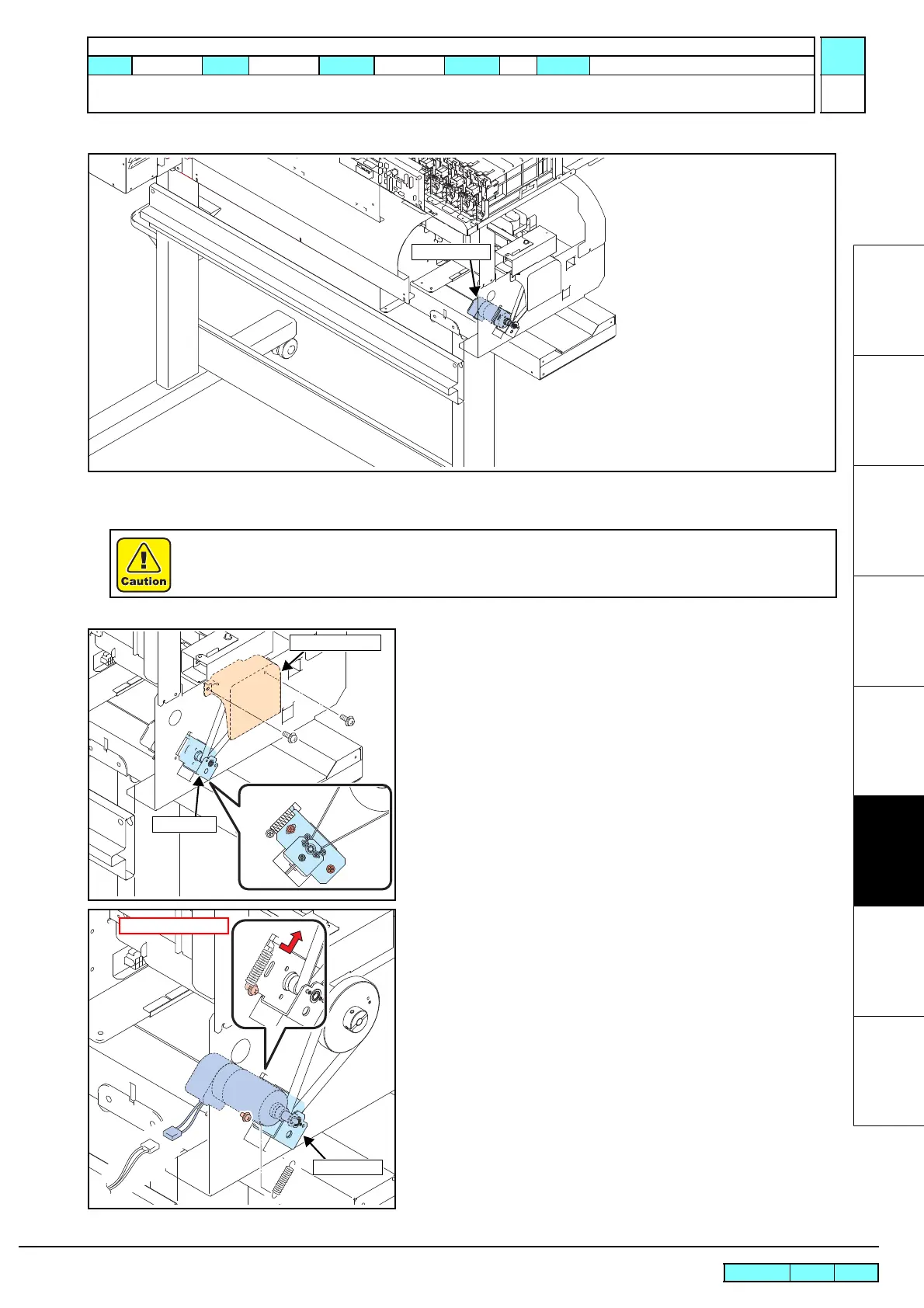

6.4.1 X-axis Motor

 Work procedures

1. Remove the following covers.

• Maintenance Cover L

• Cartridge cover

• Left cover

2. Remove the X pulley cover.

3. Remove the screws that fix the XM BKT.

4. Disconnect the X-axis motor connector.

5. Remove the spring, and then remove the XM BKT and X-axis

motor from the main body.

Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.

X-axis Motor

X Pulley Cover

XM BKT

Remove the spring
