MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.6.1 P.1
1
2
3
4
5
6
7
8
R.1.1
Maintenance Manual > Disassembly and Reassembly > Sensors > Sensor Layout
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

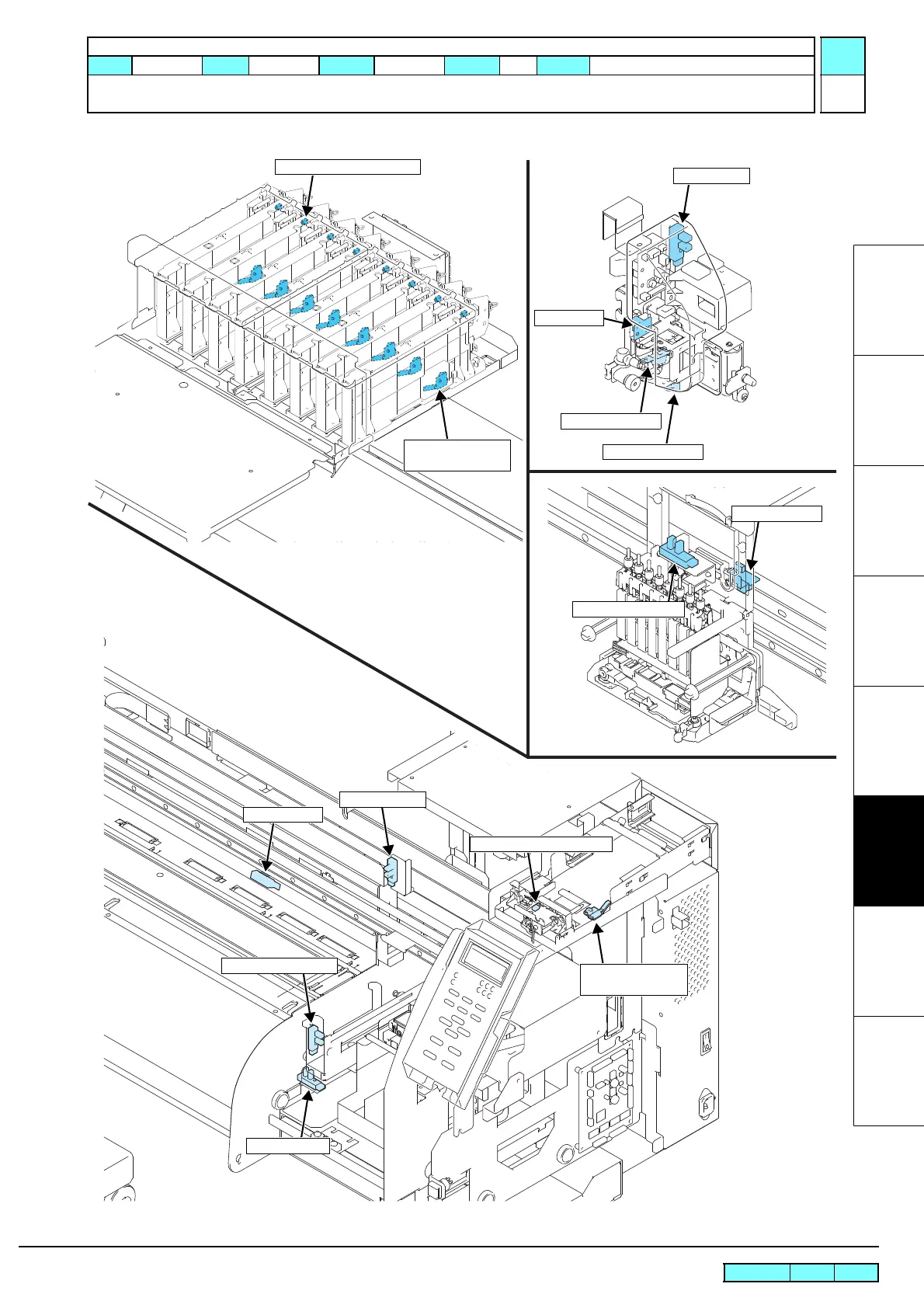

6.6.1 Sensor Layout
Detector Assy, I/C, Y (x8)
LED Pointer
Cartridge Near End
Sensor (x8)
Paper Sensor
Y-origin Sensor
Wiper Origin Sensor
Clamp Sensor
Cartridge Near End
Sensor (x8)
Detector Assy, I/C, Y (x8)
Linear Encoder
Head Height Sensor
Mark Sensor
Joint Sensor
PR Sensor

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
