5.2.5 Checking Conduction of HDC FFC COM Line
1
2
3
4
5
6
7
8
 Procedure

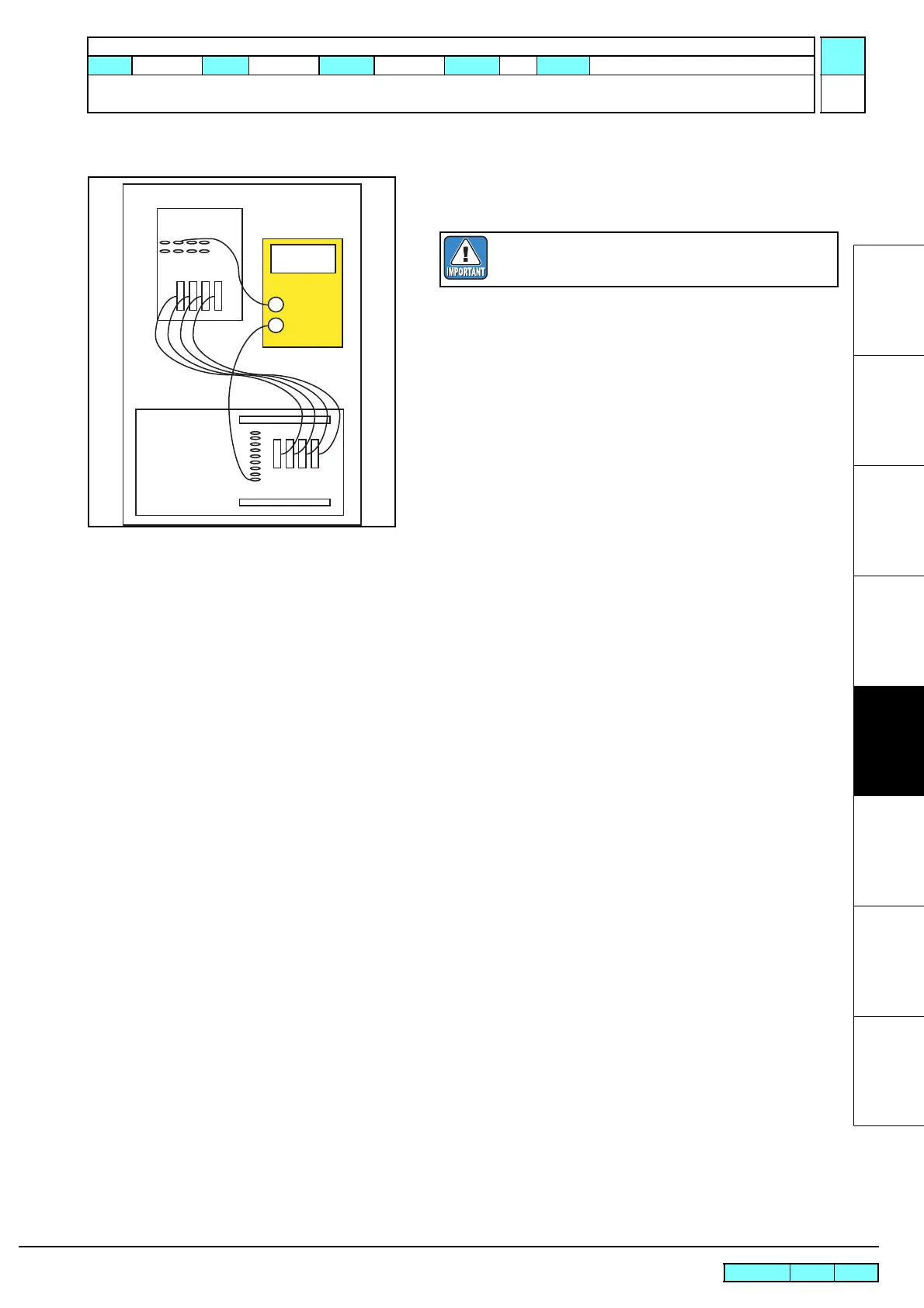

1. Check the conduction of HDC FFC COM line as the figure on
the left.
MainPCB
InkSliderPCB
Tester
1.6Ω
HDC FFC
The resistance undergoes a little bit change with the
probe location or temperature.
