6.1.1 P.2

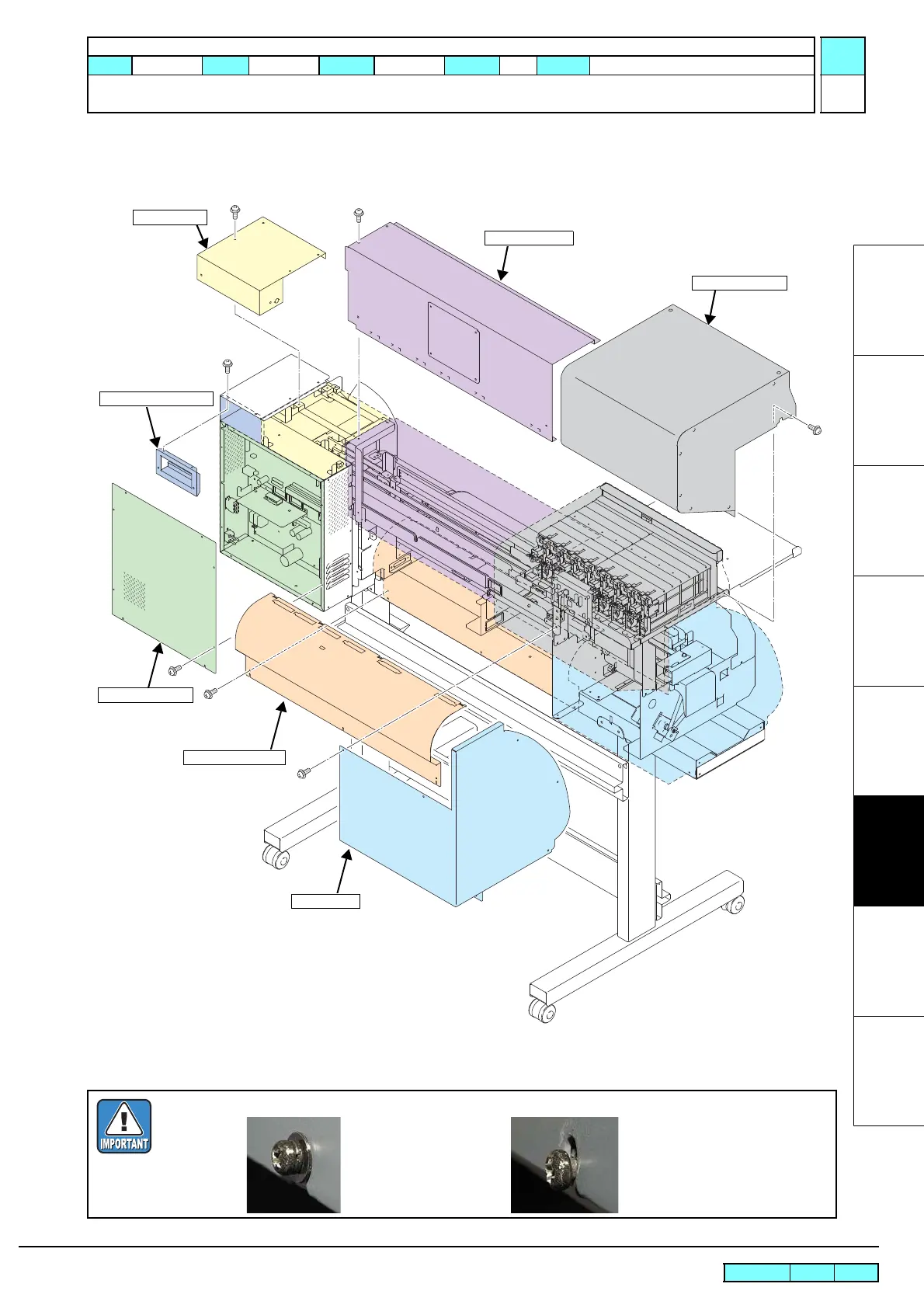

6.1.1 Cover Layout
1
2
3
4
5
6
7
8
 Printer Rear
When fixing the cover, put it inside of the washer of loosened screw and tighten the screw.
CY cover R
Cartridge Cover
Wiring Cover
PC Cartridge Cover
Power Box Cover
Left Cover
Platen Cover R
Good example: Bad examPle:
The washer of the screw
is outside of the cover.
The washer of the screw
is inside of the cover.
R.1.0
Maintenance Manual > Disassembly and Reassembly > Covers > Cover Layout
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
