6.2.3 P.2

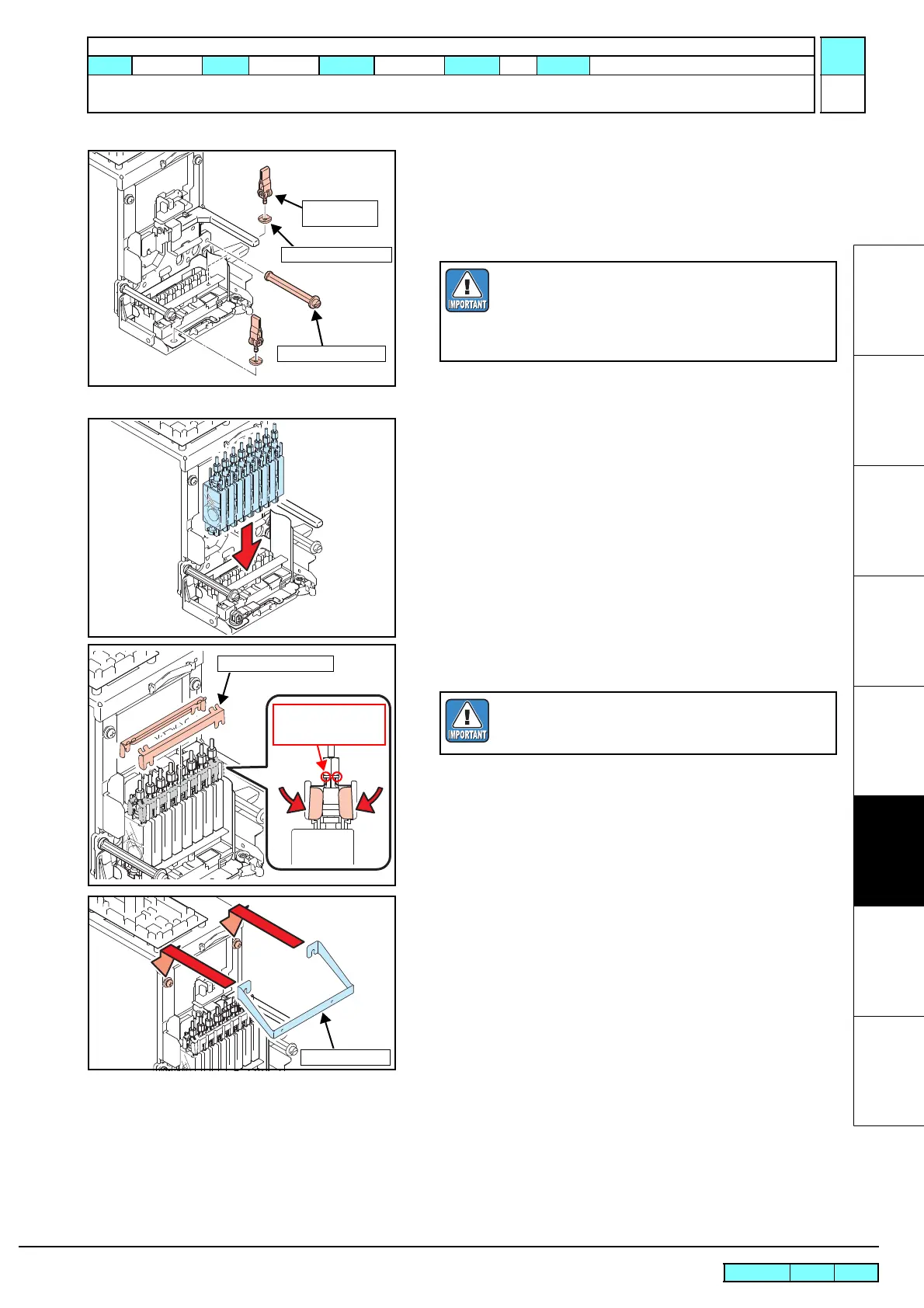

6.2.3 Mounting of Head Unit

5. Pay attention to the direction of the AD locking spacer and

tighten the left and right AD locking levers.

Left: Set the depression towards the front.

Right:Set the depression sideways.

6. Mount the right head lock screw.

7. Insert the pressure damper SP assy in the order described on

the tab.

8. Mount the damper lock SP from a recess.

9. Mount the P cover BKT and tighten the right and left screws.

10. Connect the head FFC assy and head memory cable assy to the

ink slider PCB assy.

AD Locking

Lever

Head Lock Screw

AD Locking Spacer

Tighten the AD locking lever to a certain degree and

go it down for locking.

At this time, if tightened too weakly, the lever cannot

be locked, and if it is tightened too strongly, the AD

locking spacer may crack. Proceed carefully with work.

Damper Lock SP

This is used as a

supporting point for

mounting from a recess.

If the connection of the damper is loosened, the

damper lock will not work. Make sure that no loose

connection exists.

P Cover BKT

R.1.0

Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Mounting of Head Unit

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.
